Atlas Copco CA2500 User Manual

Technical specifications
4812160001_A.pdf2014-08-25

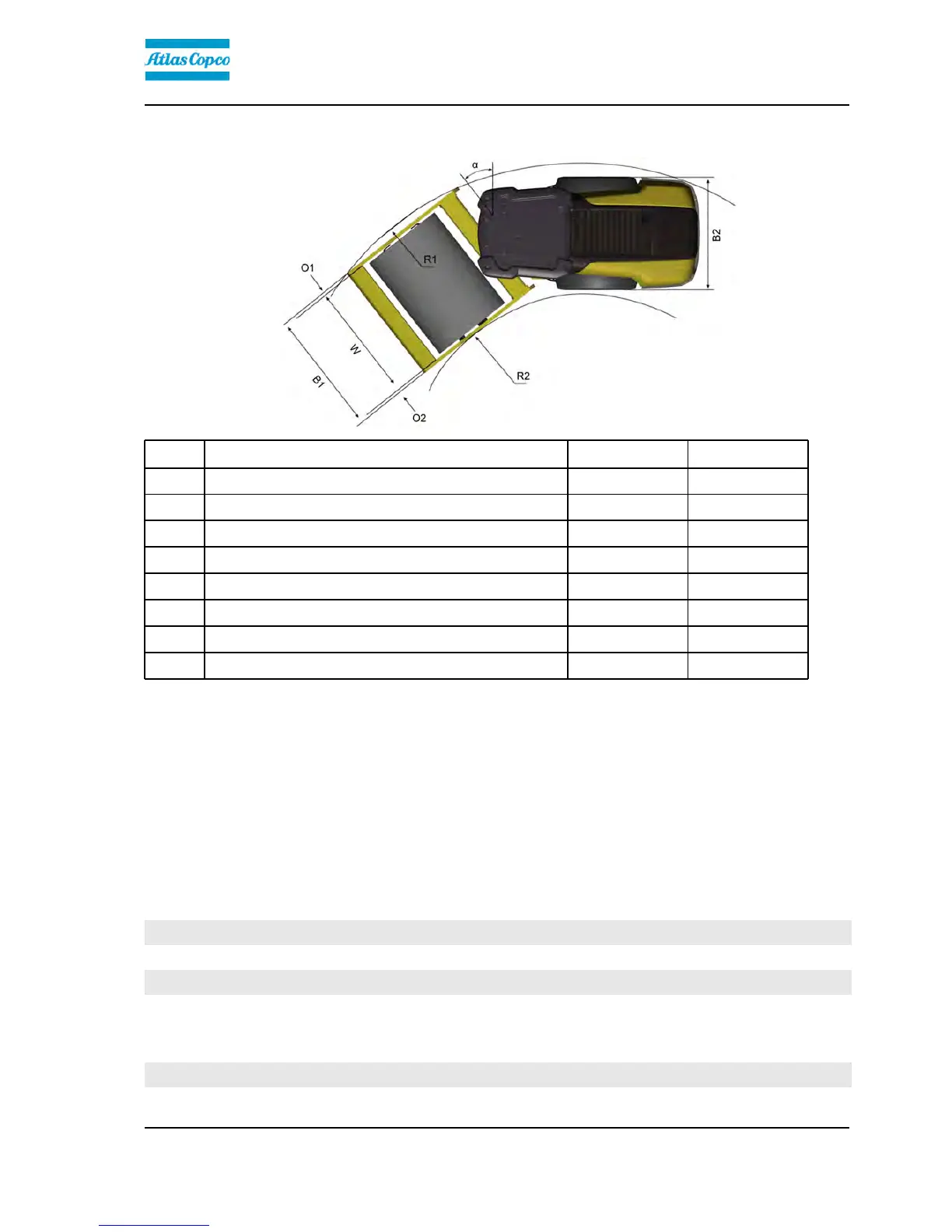

Dimensions, top view
Dimensions mm inDimensions mm in
B1 Width, standard equipped roller 2300 91B1 Width, standard equipped roller 2300 91
B2 Width, tractor section 1707 84B2 Width, tractor section 1707 84
O1 Overhang, right frame side 85 3O1 Overhang, right frame side 85 3
O2 Overhang, left frame side 85 3O2 Overhang, left frame side 85 3
R1 Turn radius, external 5200 220R1 Turn radius, external 5200 220
R2 Turning radius, inner 3100 130R2 Turning radius, inner 3100 130
W Width, drum 2130 84W Width, drum 2130 84
α Steering angle ± 38°α Steering angle ± 38°
Weights and volumes
WeightsWeights
Service weight ROPS CabService weight ROPS Cab
CA2500D (kg) 10 000 10 200CA2500D (kg) 10 000 10 200
(lbs) 22 050 22 500(lbs) 22 050 22 500
Fluid volumesFluid volumes
Fuel tank 190 liters 50 galFuel tank 190 liters 50 gal
17

Atlas Copco CA2500 Specifications

General

Brand	Atlas Copco
Model	CA2500
Category	Power Roller
Language	English
