Miscellaneous
4812160001_A.pdf 2014-08-25
Short distance towing when the engine is
inoperative.

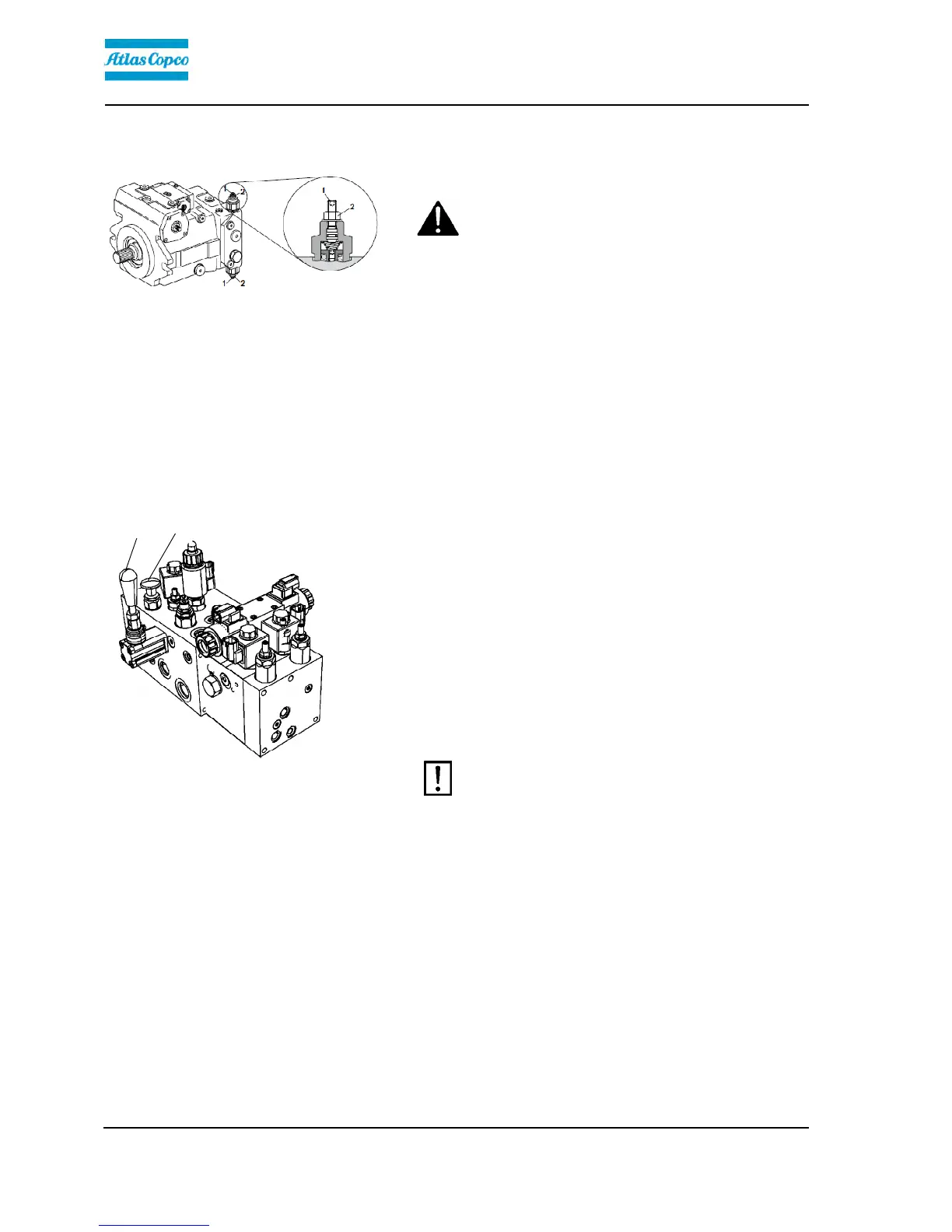

Fig. Propulsion pump - By-pass valves
1. Screw
2. Lock nut
Chock the wheels to prevent the roller from
moving when the brakes are hydraulically
disengaged.
Chock the wheels to prevent the roller from
moving when the brakes are hydraulically
disengaged.
Open the hood and make sure that the propulsion
pump is accessible.
On the pump there are two by-pass valves (1) (hex
screws), which after loosen the lock nuts (2) half a turn
anticlockwise, shall be screwed in clockwise until the
screw reaches against the spring washer. Then turn
the screw a half turn to put the system in bypass mode
and lock the locknut clockwise torque 22 Nm.
This function enables a machine to be moved.
4
3
Fig. Valve block, engine compartment
3. Brake release button
4. Pump arm
The release pump for the brakes is located on the
valve block, which is positioned in the rear of the
engine compartment.
Press the break release button (3).
Pump with the arm (4) until the brakes are released.
The roller can now be towed.
After towing, pull the brake release button (3) up.
To disengage the by-pass mode, reset the by-pass
valves in reverse order.
The machine must not be moved at a speed
higher than 3 km/h (2 mph), and no more than 300
meters (330 yards). Otherwise there is a risk of
damaging the drives. Be sure to reset the towing
valves (by turning them three turns clockwise)
after towing.
The machine must not be moved at a speed
higher than 3 km/h (2 mph), and no more than 300
meters (330 yards). Otherwise there is a risk of
damaging the drives. Be sure to reset the towing
valves (by turning them three turns clockwise)
after towing.
76
