Maintenance - 500 / 1500h
4812160001_A.pdf 2014-08-25

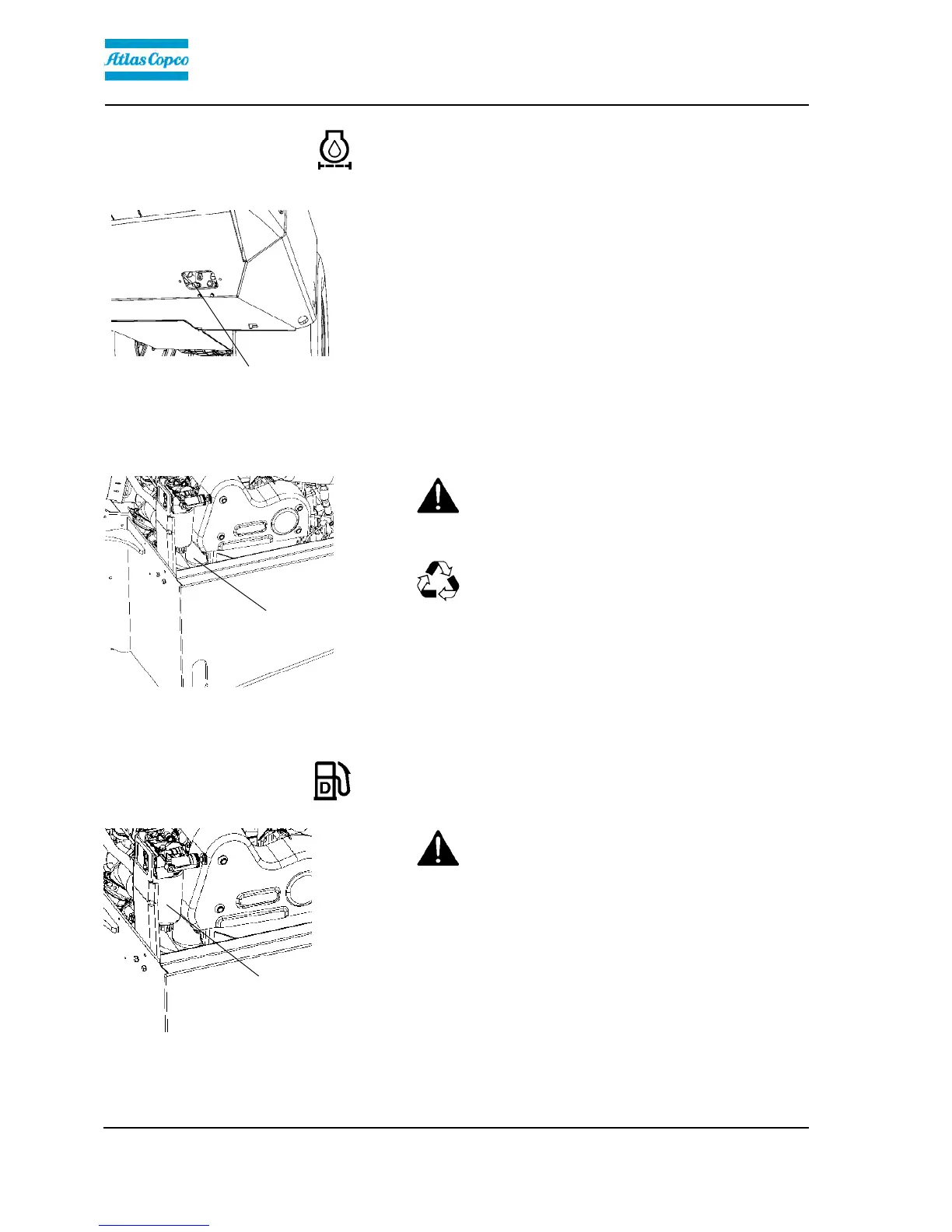

Diesel engine - Oil and Filter change
Fig. Tractor frame
1. Drain plug
1
The oil drain plug (1) can be accessed most easily
from the right rear underside of the tractor frame, and
is installed with a hose in the engine.
Drain the oil when the engine is warm. Place a
receptacle that holds 19 liters (5 gal) under the drain
plug.
Replace the engine oil filter (2) at the same time. Refer
to the engine manual.
Fig. Engine compartment
2. Oil filter
2
Take great care when draining warm fluid and oil.
Wear protective gloves and goggles.
Take great care when draining warm fluid and oil.
Wear protective gloves and goggles.
Hand in the drained oil and filter to an
environment-friendly waste disposal station.
Hand in the drained oil and filter to an
environment-friendly waste disposal station.
Fuel pre-filter - Replacement
Fig. Engine compartment
1. Fuel prefilter
1
Ensure good ventilation (air extraction) if the
diesel engine is run indoors. Risk of carbon
monoxide poisoning.
Ensure good ventilation (air extraction) if the
diesel engine is run indoors. Risk of carbon
monoxide poisoning.
See the engine's instruction manual for filter
replacement, in the Fuel system chapter.
