Atlas Copco CA2500 User Manual

Miscellaneous
4812160001_A.pdf2014-08-25
Miscellaneous
Lifting
Locking the articulation
1
2

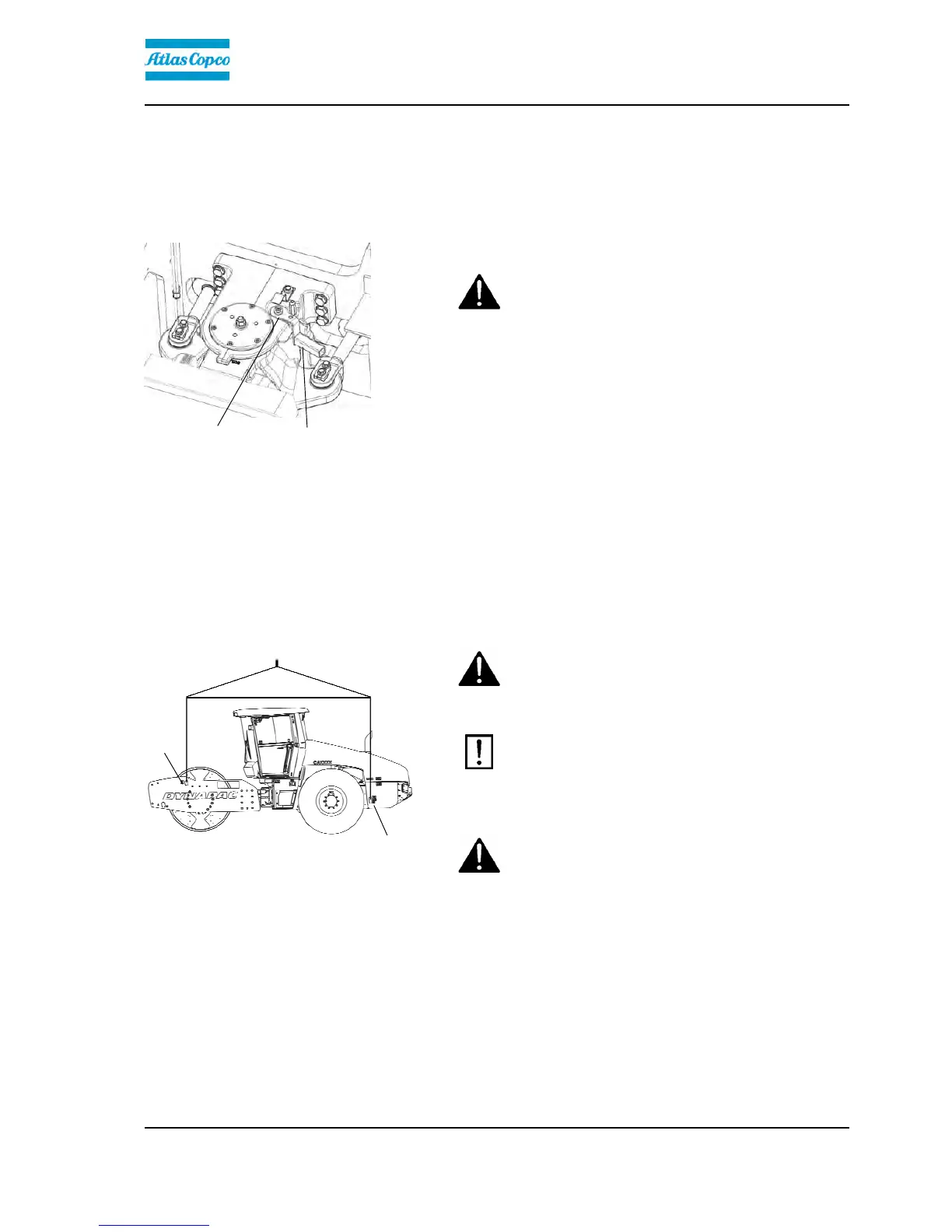

Fig. Steering joint lock, locked
1. Lock handle
2. Locking dowel
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Articulation must be locked to prevent inadvertent
turning before lifting the roller.
Turn the steering wheel to the straight ahead position.
Activate the parking brake.
Front frame shall be in line with the rear frame.
Lift lock in the handle (1) while it is turned clockwise.
Make sure dowel (2) gets in position as illustrated.
Arm must be in contact with the surface of the molded
holder.
If this is not done, it's likely that the machine halves
are out of line, steer then the machine so this is
happening.
Weight: refer to the hoisting plate on the roller
1
1
Fig. Roller prepared for lifting
1. Lifting plate
Lifting the roller
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
The machine’s gross weight is specified on the
hoisting plate (1). Refer also to the Technical
specifications.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Lifting equipment such as chains, steel wires,
straps and lifting hooks must be dimensioned in
accordance with the relevant safety regulations
for the lifting equipment.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
Stand well clear of the hoisted machine! Make sure
that the lifting hooks are properly secured.
73
