Maintenance - 1000h
4812160001_A.pdf2014-08-25

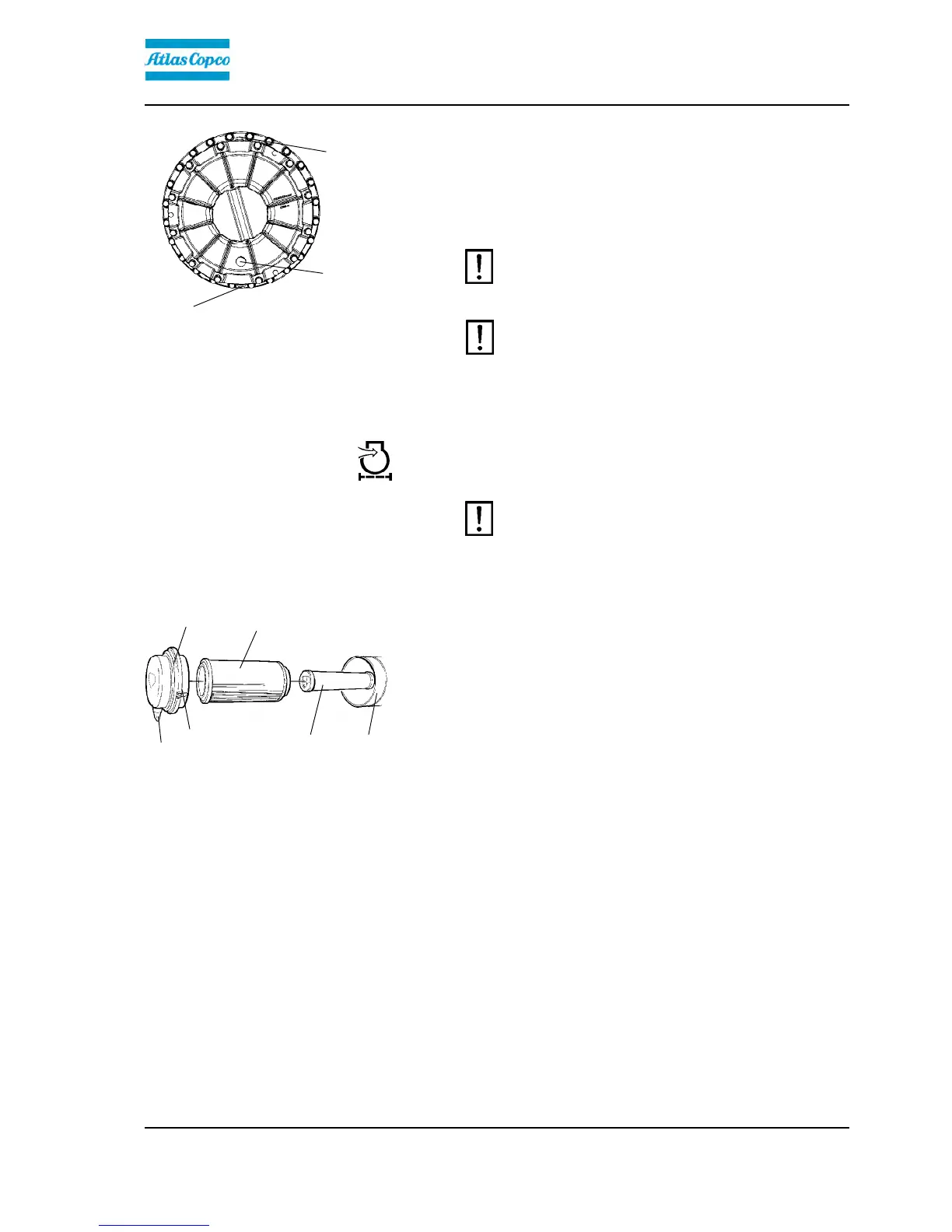

Fig. Left drum side
1. Filler plug
2. Drain plug
3. Sight glass
1
2
3
The oil should now come up to the sight glass (3).
If necessary, release the filler plug (1) and fill to half
the sight glass (3).
Clean the magnetic filler plug (1) of any metallic
residue, before refitting the plug.
Ensure that only AtlasCopco Drum Oil 1000 is
used in the cartridges.
Ensure that only AtlasCopco Drum Oil 1000 is
used in the cartridges.
Do not overfill with oil - risk for overheating.Do not overfill with oil - risk for overheating.
Now repeat the procedure on the opposite side of the
drum.
Air cleaner
Checking - Change the main air filter
Change the air cleaner's main filter when the
warning lamp on the display lights when the
diesel engine is operating at full speed.
Change the air cleaner's main filter when the
warning lamp on the display lights when the
diesel engine is operating at full speed.
3
6
4 5
2
Fig. Air cleaner
1. Clips
2. Cover
3. Main filter
4. Backup filter
5. Filter housing
6. Dust valve
1
Release the clips (1), pull off the cover (2), and pull out
the main filter (3).
Do not remove the backup filter (4).
Clean the air cleaner if necessary, see section Air
cleaner - Cleaning.
When replacing the main filter (3), insert a new filter
and refit the air cleaner in the reverse order.
Check the condition of the dust valve (6); replace if
necessary.
When refitting the cover, make sure that the dust valve
is positioned downwards.
121
