Maintenance, first 50h
4812160001_A.pdf 2014-08-25
Drum gearbox - Oil change

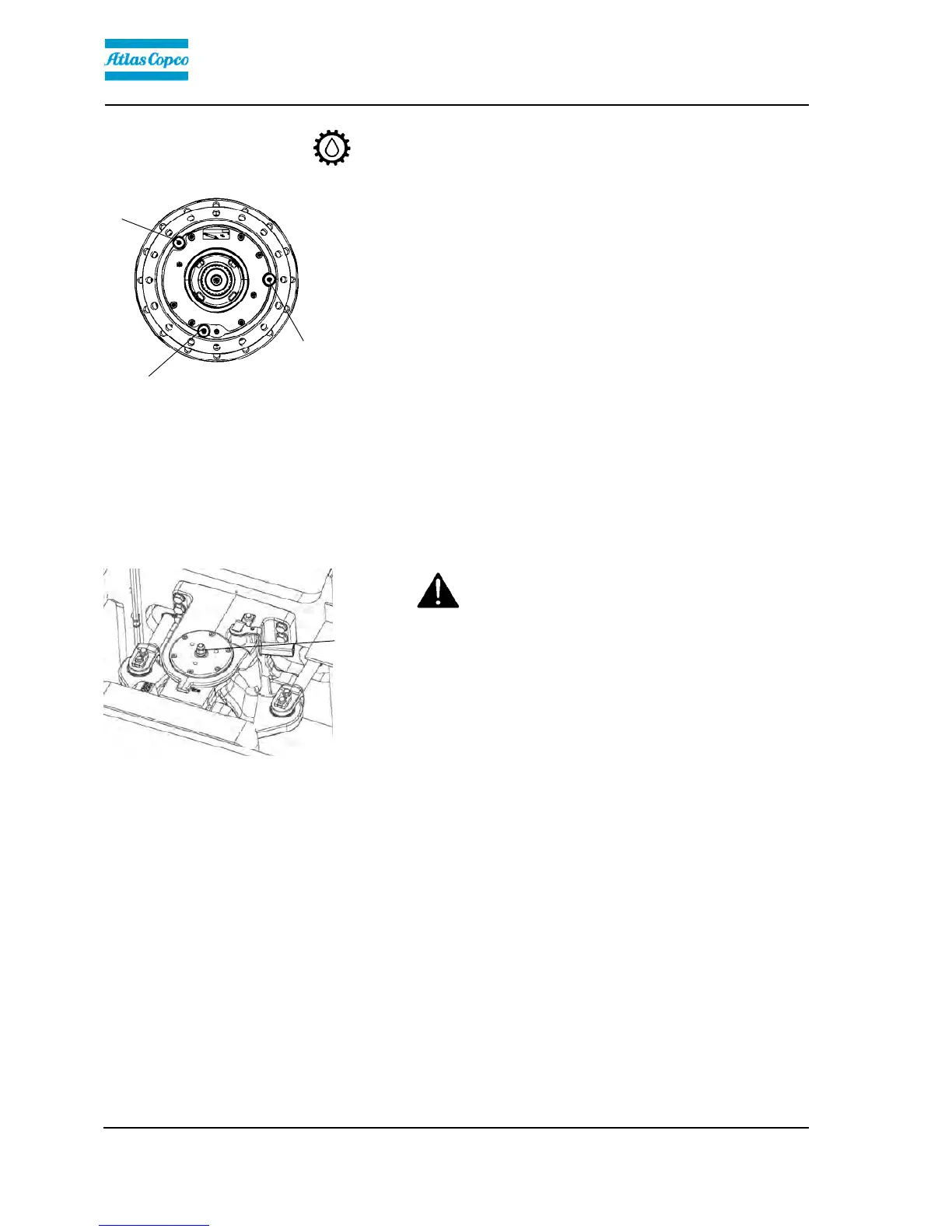

Fig. Drum gearbox
1. Drain plug
2. Filler plug
3. Level plug
1
2
3
Wipe clean, unscrew the plugs (1, 2 and 3) and drain
the oil into a suitable receptacle, capacity about 5.0
liters (5,3 qts.).
Refit the drain plug (1) and fill with oil up to the level
plug (3), according to "Drum gearbox - Checking the
oil level".
Use transmission oil according to the lubricant
specification.
Clean and refit the level plug (3) and filler plug (2).
Steering hitch - Tightening
Fig. Steering hitch
1. Nut (24mm)
1
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
Nobody must be allowed near the steering joint
when the engine is running. Risk of being
crushed when the steering is operated. Switch
off the engine and activate the parking brake
before lubricating.
To do this torque control, you need a torque wrench
that can handle at least 300 Nm.
The easiest way to identify if you have this type of
steering hitch is that it has a new type of nut (24mm)
(1) at the top, as shown.
Actual torque should be 270 Nm when the machine's
position is straight ahead.
102
