Machine description
4812160001_A.pdf2014-08-25

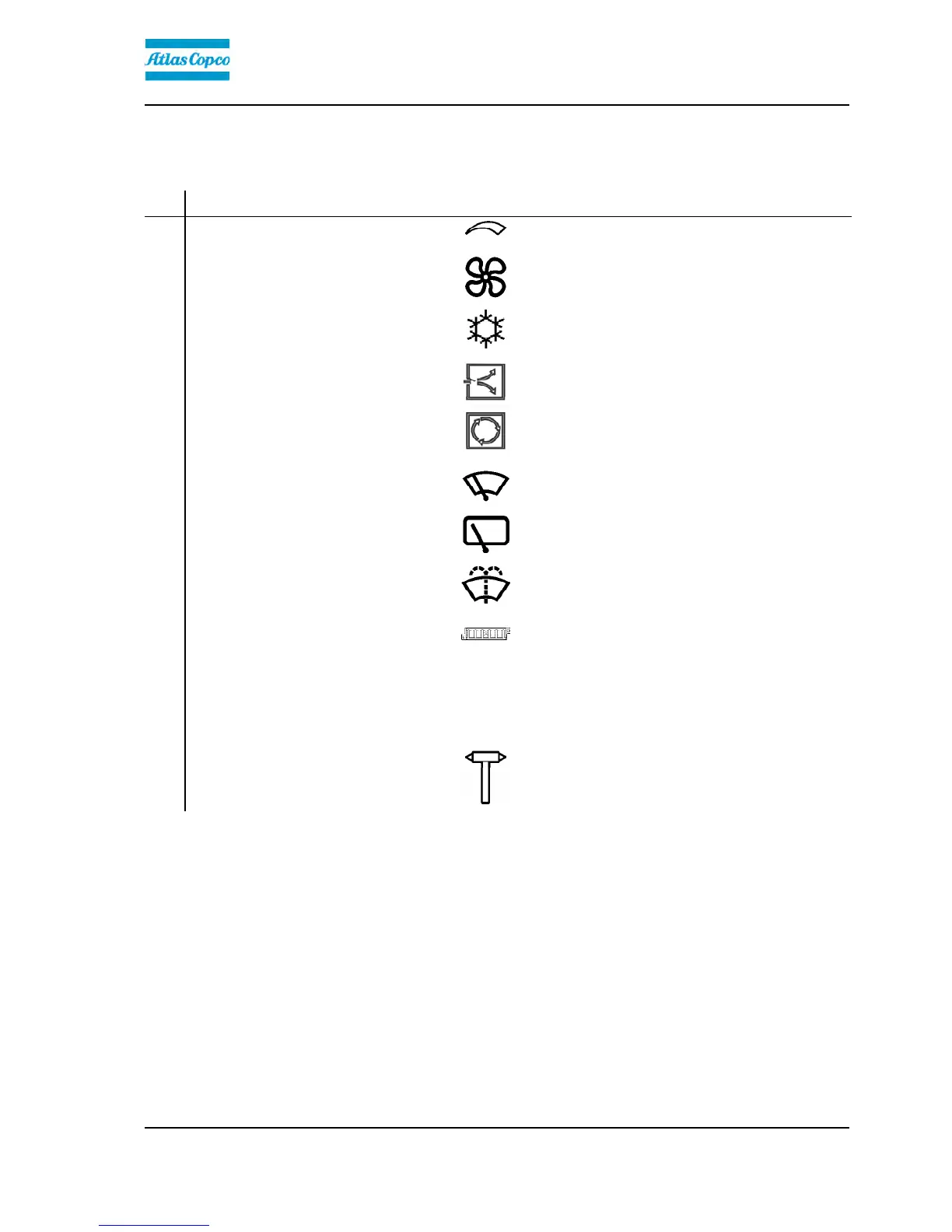

Function description of instruments and
controls in the cab
No Designation Symbol FunctionNo Designation Symbol Function
1 Heater control Turn to the right to increase heating.
Turn to the left to reduce heating.
1 Heater control Turn to the right to increase heating.
Turn to the left to reduce heating.
2 Ventilation fan, switch In the left position, the fan is off.
Turning the knob to the right increases the
volume of air entering the cab.
2 Ventilation fan, switch In the left position, the fan is off.
Turning the knob to the right increases the
volume of air entering the cab.
3 Air conditioning, switch Starts and stops the air conditioning.3 Air conditioning, switch Starts and stops the air conditioning.
4 Cab air recirculation, switch Pressing the top opens the air damper so that
fresh air comes into the cab.
Pressing the bottom closes the damper so that
the air recirculates inside the cab.
4 Cab air recirculation, switch Pressing the top opens the air damper so that
fresh air comes into the cab.
Pressing the bottom closes the damper so that
the air recirculates inside the cab.
5 Front wiper, switch Press to operate the front screen wiper.5 Front wiper, switch Press to operate the front screen wiper.
6 Rear wiper, switch Press to operate the rear screen wiper.6 Rear wiper, switch Press to operate the rear screen wiper.
7 Front and rear window screen
washers, switch
Press the upper edge to activate the front screen
washers.
Press the lower edge to activate the rear screen
washers.
7 Front and rear window screen
washers, switch
Press the upper edge to activate the front screen
washers.
Press the lower edge to activate the rear screen
washers.
8 Fuse box Contains fuses for the electrical system in the
cab.
8 Fuse box Contains fuses for the electrical system in the
cab.
9 Front wiper, intermittent Intermittent function for front wiper.9 Front wiper, intermittent Intermittent function for front wiper.
10 Automatic Climate Control (ACC)
(micro ECC)
Automatic control of the air conditioning.10 Automatic Climate Control (ACC)
(micro ECC)
Automatic control of the air conditioning.
14 Defroster nozzle Turn the nozzle to direct the flow of air.14 Defroster nozzle Turn the nozzle to direct the flow of air.
15 Hammer for emergency exit To escape from the cab in an emergency,
release the hammer and break the opening
windows on the right-hand side.
15 Hammer for emergency exit To escape from the cab in an emergency,
release the hammer and break the opening
windows on the right-hand side.
47
