Miscellaneous

4812160001_A.pdf 2014-08-25

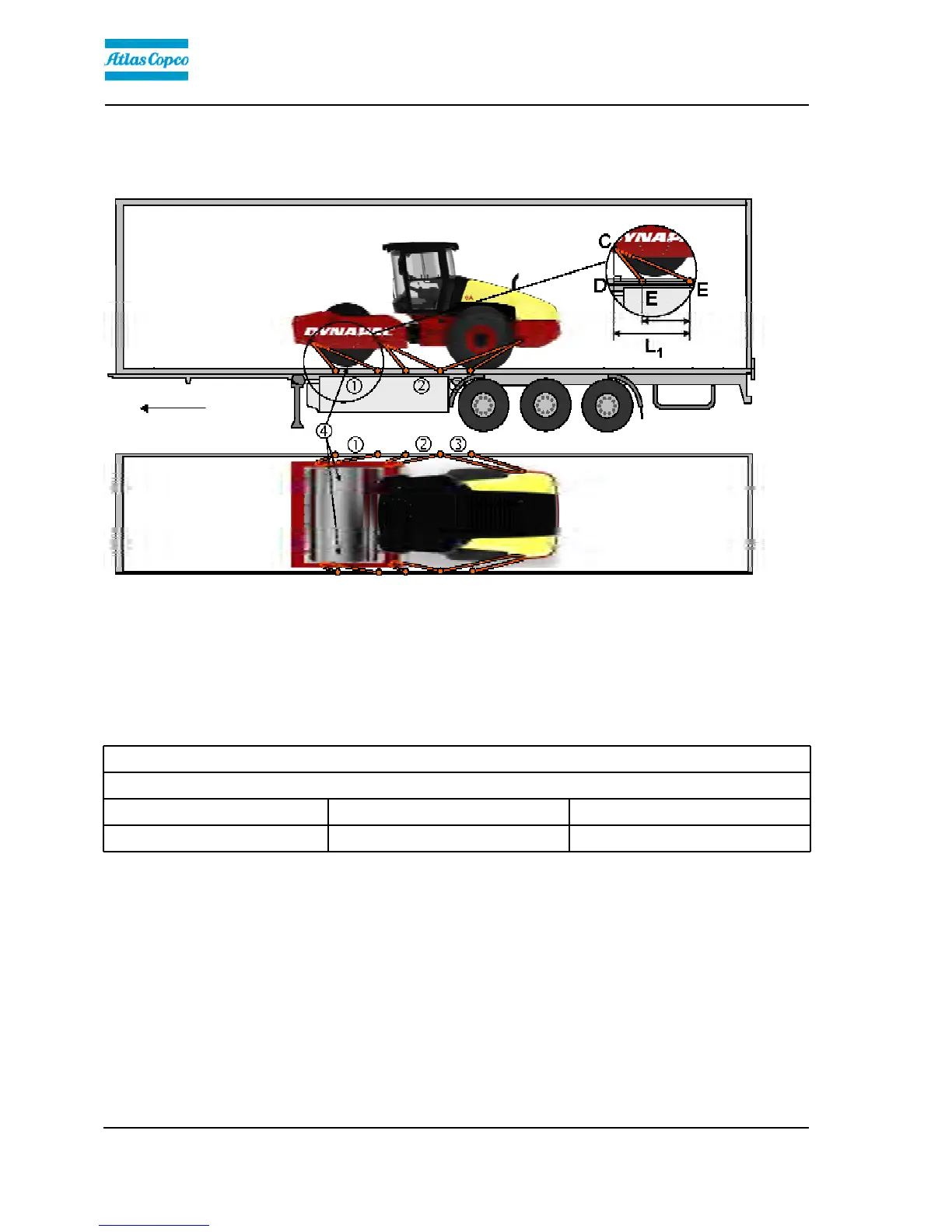

Securing CA1500-CA4600 for loading

Securing the CA1500-4600D/PD vibratory roller from

Dynapac for transport.

Direct of travel

Roller loaded in forward

direction

1 - 3 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,

symmetrically located on the right and left sides.

1 - 3 = double lashings, i.e. one lashing with two parts secured to two different lashing mounts,

symmetrically located on the right and left sides.

4 = rubber4 = rubber

The lashings' permitted distance interval in metersThe lashings' permitted distance interval in meters

(1 - 3: Double lashings, LC at least 1.7 tonnes (1700 daN), S

300 kg (300daN))(1 - 3: Double lashings, LC at least 1.7 tonnes (1700 daN), S

300 kg (300daN))

Double L

0,9 - 2,5 0,9 - 2,5 0,1 - 2,50,9 - 2,5 0,9 - 2,5 0,1 - 2,5

The distance L

above is between points D and E. D is the projected point directly at right angles laterally in relation to

the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L

–

have a corresponding relationship.

The distance L

above is between points D and E. D is the projected point directly at right angles laterally in relation to

the edge of the platform from the lashing mount C on the roller. E is the lashing mount at the edge of the platform. L

–

have a corresponding relationship.
