Maintenance - 2000h
4812160001_A.pdf 2014-08-25
Rear axle differential (No Spin) - Oil change

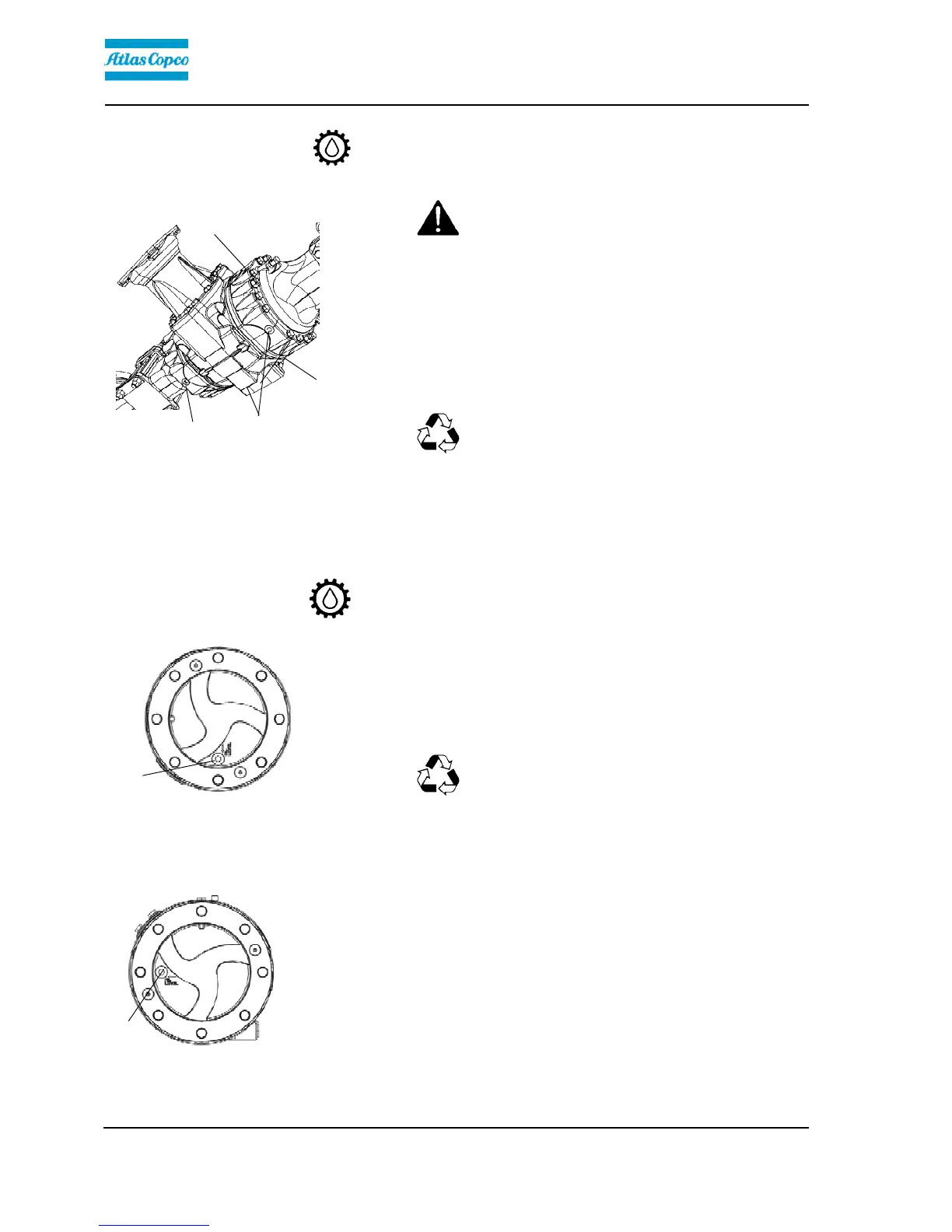

Fig. Rear axle, underside
1. Level/Filler plugs (x 3)
2. Drain plugs (x 3)
1
1
2
2
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Never work under the roller when the engine is
running. Park on a level surface. Block the wheels
securely.
Wipe clean and remove the three level/filler plugs (1)
and (3) and all three drain plugs (2). The level/filler
plugs are located on the front and rear of the axle, and
the drain plugs are located on the underside and rear.
Drain the oil into a container. The volume is approx.
8.3 litres (8.8 qts).
Deliver the drain oil to environmentally correct
handling.
Deliver the drain oil to environmentally correct
handling.
Refit the drainage plugs and top up with fresh oil until
the correct level is reached. Refit the level/filler plugs.
Use transmission oil, see Lubricant Specification.
Rear axle planetary gear (No Spin) - Oil change
Fig. Planetary gear/drainage position
1. Plug
1
Position the roller with the plug (1) at its lowest
position.
Wipe clean, unscrew the plug (1) and drain the oil into
a suitable receptacle. The volume is approximately
0.65 liters (0.7 qts).
Oil should be taken to your local waste disposal
station.
Oil should be taken to your local waste disposal
station.
Fig. Planetary gear/filling position
1. Plug
1
Position the roller so that the plug (1) in the planetary
gear is at "9 o'clock" or "3 o'clock".
Fill with oil to lower edge of level hole. Use
transmission oil. See the lubrication specification.
Clean and refit the plug.
Check the fluid level in the same way on the rear
axle's other planetary gear.
136
