Maintenance - 2000h
4812160001_A.pdf2014-08-25
Fuel tank - Draining (Optional)

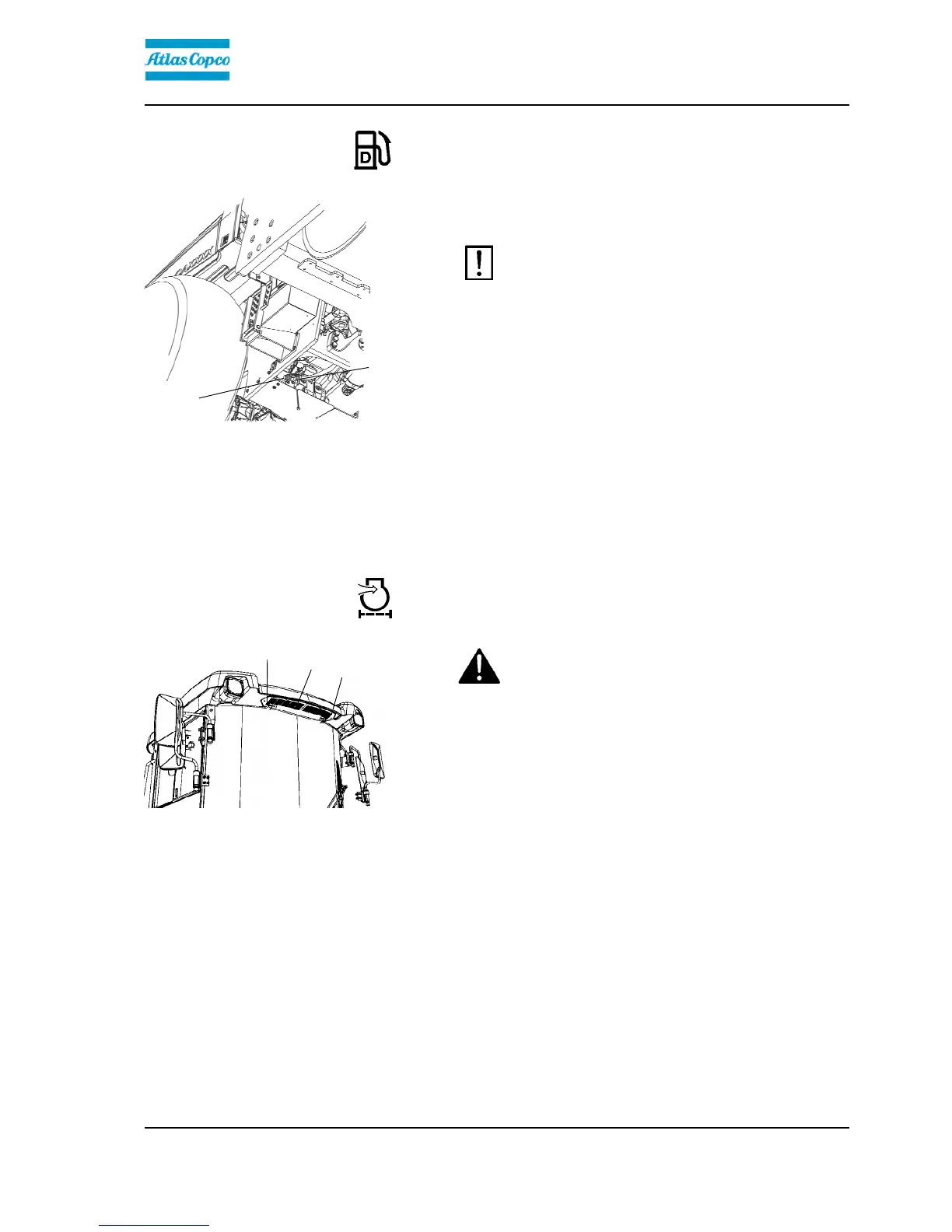

Fig. Machine's right underside
1. Drain plug
2. Drain cock
1
2
Water and sediment in the fuel tank are removed via
the drainage plug in the bottom of the fuel tank.
Be very careful during draining. Do not drop the
plug or else all the fuel will flow out.
Be very careful during draining. Do not drop the
plug or else all the fuel will flow out.
Drain the roller after it has been stationary for a long
time, e.g. after standing overnight. The fuel level
should be as low as possible.
The roller should preferably have been standing with
this side somewhat lower, so that water and sediment
will gather near the drainage plug (1). Drain as follows:
Place a container under the plug (1).
Loosen the drain plug (1). Then open the drain cock
(2) and drain out water and sediment until only pure
diesel fuel emerges at the plug. Close the drain cock
and screw in the plug again.
Air conditioning (Optional)
Fresh air filter - Change
Fig. Cab
1. Fresh air filter (x 2)
2. Screws (x 3)
1
2
2 Use a step ladder to reach the filter (1). The filter
can also be accessed via the right cab window.
Use a step ladder to reach the filter (1). The filter
can also be accessed via the right cab window.
There is a fresh air filter (1), located at the front of the
cab.
Undo the three screws (2) and remove the protective
cover.
Remove the two air filter inserts and replace with new
ones.
It may be necessary to change the filters more often if
the machine is working in a dusty environment.
141
