Maintenance - Lubricants and symbols
4812160001_A.pdf 2014-08-25
BIOLOGICAL
HYDRAULIC
FLUID, PANOLIN
Air temperature -10°C - +35°C
(14°F-95°F)
When it leaves the factory, the
machine may be filled with
biologically degradable fluid.
The same type of fluid must be
used when changing or topping
up.
PANOLIN HLP Synth 46
(www.panolin.com)
BIOLOGICAL
HYDRAULIC
FLUID, PANOLIN
Air temperature -10°C - +35°C
(14°F-95°F)
When it leaves the factory, the
machine may be filled with
biologically degradable fluid.
The same type of fluid must be
used when changing or topping
up.
PANOLIN HLP Synth 46
(www.panolin.com)
DRUM OIL Air temperature -15°C - +40°C
(5°F-104°F)
AtlasCopco Drum Oil
1000
P/N 4812156456 (5 liters)DRUM OIL Air temperature -15°C - +40°C
(5°F-104°F)
AtlasCopco Drum Oil
1000
P/N 4812156456 (5 liters)
GREASE Shell Retinax LX2 or
equivalent.
Dynapac Roller Grease
(0.4kg),
P/N 4812030095
GREASE Shell Retinax LX2 or
equivalent.
Dynapac Roller Grease
(0.4kg),
P/N 4812030095
FUEL See engine manual. - -FUEL See engine manual. - -
TRANSMISSION
OIL
Air temperature -15°C - +40°C
(5°F-104°F)
AC Fluid Gearbox 100,,
API GL-5 or equivalent
P/N 4812008274 (5 liters),
P/N 4812008275 (20 liter)
TRANSMISSION
OIL
Air temperature -15°C - +40°C
(5°F-104°F)
AC Fluid Gearbox 100,,
API GL-5 or equivalent
P/N 4812008274 (5 liters),
P/N 4812008275 (20 liter)
Air temperature 0°C (32°F) -
above +40°C (104°F)
Shell Spirax S3 AX
85W-140, API GL-5 or
equivalent.
Air temperature 0°C (32°F) -
above +40°C (104°F)
Shell Spirax S3 AX
85W-140, API GL-5 or
equivalent.
COOLANT Anti-freeze protection down to
about -37°C (-34.6°F)
GlycoShell/Carcoolant
774C or equivalent,
(mixed 50/50 with water)
COOLANT Anti-freeze protection down to
about -37°C (-34.6°F)
GlycoShell/Carcoolant
774C or equivalent,
(mixed 50/50 with water)

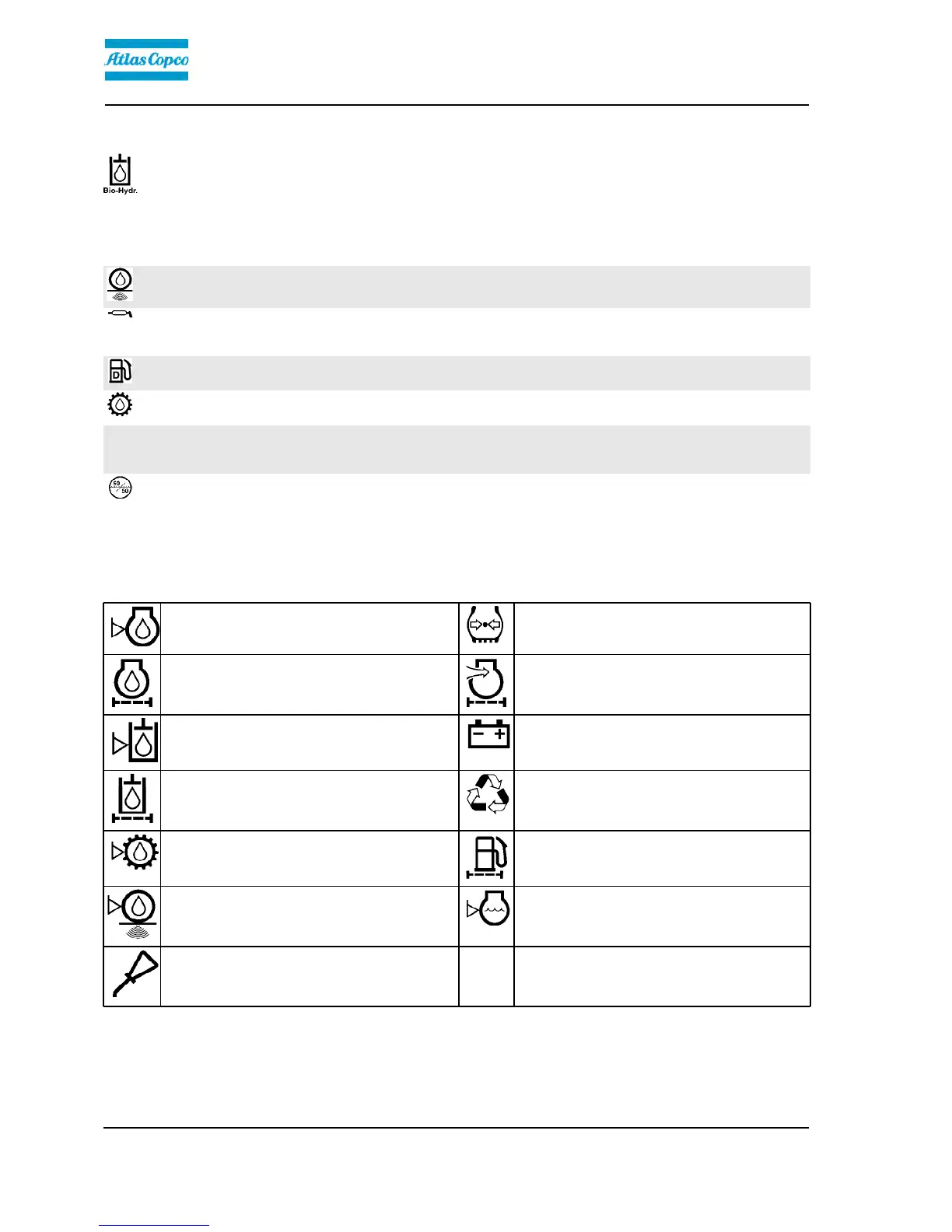

Maintenance symbols
Engine, oil level Tyre pressureEngine, oil level Tyre pressure
Engine, oil filter Air filterEngine, oil filter Air filter
Hydraulic reservoir, level BatteryHydraulic reservoir, level Battery
Hydraulic fluid, filter RecyclingHydraulic fluid, filter Recycling
Transmission, oil level Fuel filterTransmission, oil level Fuel filter
Drum, oil level Coolant, levelDrum, oil level Coolant, level
Oil for lubricationOil for lubrication
