Atlas Copco CA2500 User Manual

Maintenance - 2000h
4812160001_A.pdf2014-08-25
Maintenance - 2000h
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Park the roller on a level surface.
The engine must be switched off and the
parking brake activated when checking or
adjusting the roller, unless otherwise specified.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.
Ensure that there is good ventilation (air
extraction) if the engine is run indoors. Risk of
carbon monoxide poisoning.

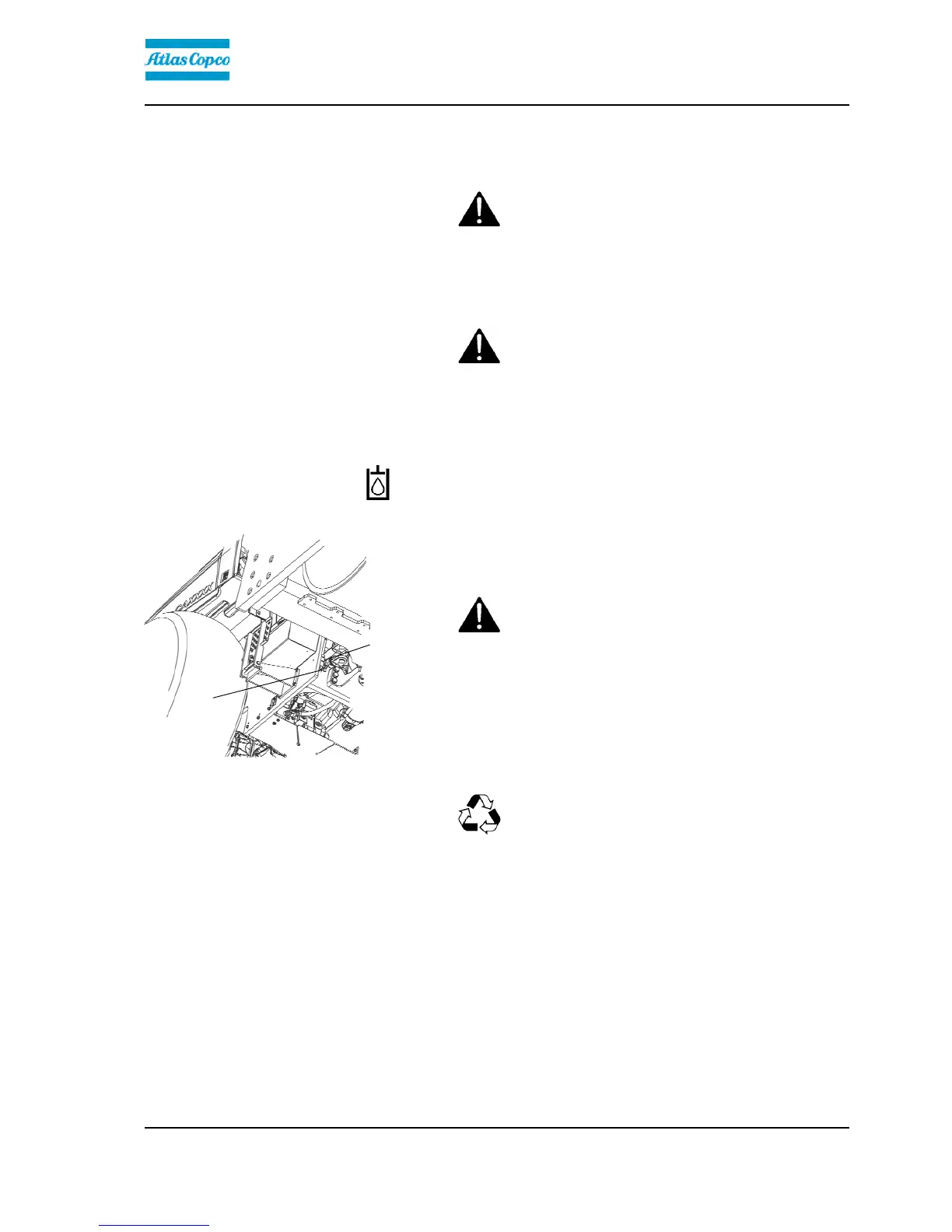

Hydraulic reservoir - Oil change
Fig. Machine's right underside
1. Drain cock
2. Plug
1
2
Obtain a container for collecting the used fluid. The
container should be able to hold at least 60 liters (16
gal).
Observe care when draining hot hydraulic fluid.
Wear protective gloves and goggles.
Observe care when draining hot hydraulic fluid.
Wear protective gloves and goggles.
A suitable receptacle may be an empty oil drum or
similar item which is placed beside the roller. The oil
then runs from the drain cock (1) to the receptacle,
after the plug (2) has been removed and the cock
opened.
Save the oil and hand in to an
environment-friendly waste disposal station.
Save the oil and hand in to an
environment-friendly waste disposal station.
Fill up with fresh hydraulic fluid as per the instructions
under the heading "Hydraulic reservoir - Check fluid
level". Replace the hydraulic fluid filters at the same
time.
Start the diesel engine and operate the various
hydraulic functions.
Check the fluid level and top up if necessary.
131
