AudioCodes Mediant 3000 Installation Manual

Installation Manual 18 Document #: LTRT-94704
Mediant 3000 & IPmedia 3000
Chassis
Panel
Slot # Implemented Blade
6310 Blade Series 8410 Blade Series
(Applicable only to Mediant 3000)
3
 Simplex: slot covered by a blank
panel.
 HA: RTM-6310 Redundancy.
Not used (covered by a blank panel).
4 Not used (covered by a blank
panel).
The RTM-8410 type depends on the
supported span configuration:
 16-Span configuration:
9 Simplex: slot covered by a blank
panel.
9 HA: RTM-8410 providing only two
RJ-45 connectors for GbE
interfaces.
 42-Span configuration: Two SCSI
connectors and two RJ-45 connectors
for GbE interfaces (for Simplex and HA
mode). Note: The SCSI ports are not
used.
 84-Span configuration: Two SCSI
connectors for E1/T1 spans and two
RJ-45 connectors for GbE interfaces
(for Simplex and HA mode).
The figures below show the chassis slot assignment when implementing the 6310 or 8410
blade series:
 Device Implementing 6310 Blade Series:

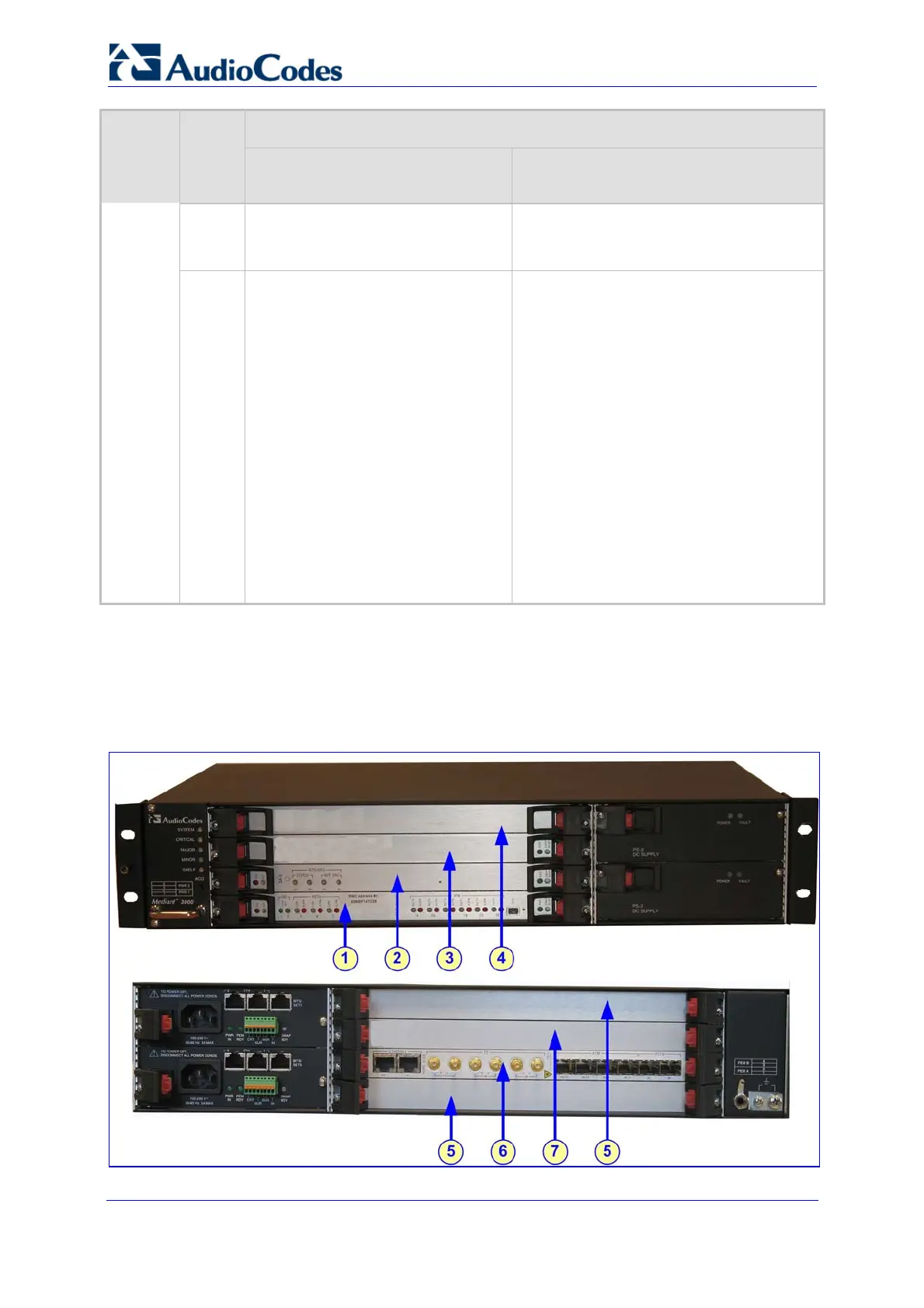

Figure 2-3: Front- and Rear-Panel Slot Assignment for IPmedia 3000 and Mediant 3000 Simplex
with 6310 Blades
