Installation Manual 64 Document #: LTRT-94704
Mediant 3000 & IPmedia 3000
¾ To connect the device to an AC power supply:
1. Plug the AC power cord (not supplied) into the AC power inlet located on the PEM
module.
2. Plug the other end of the power cord to an AC electrical outlet.
3. For power redundancy, repeat steps 1 through 2 for the second PEM.

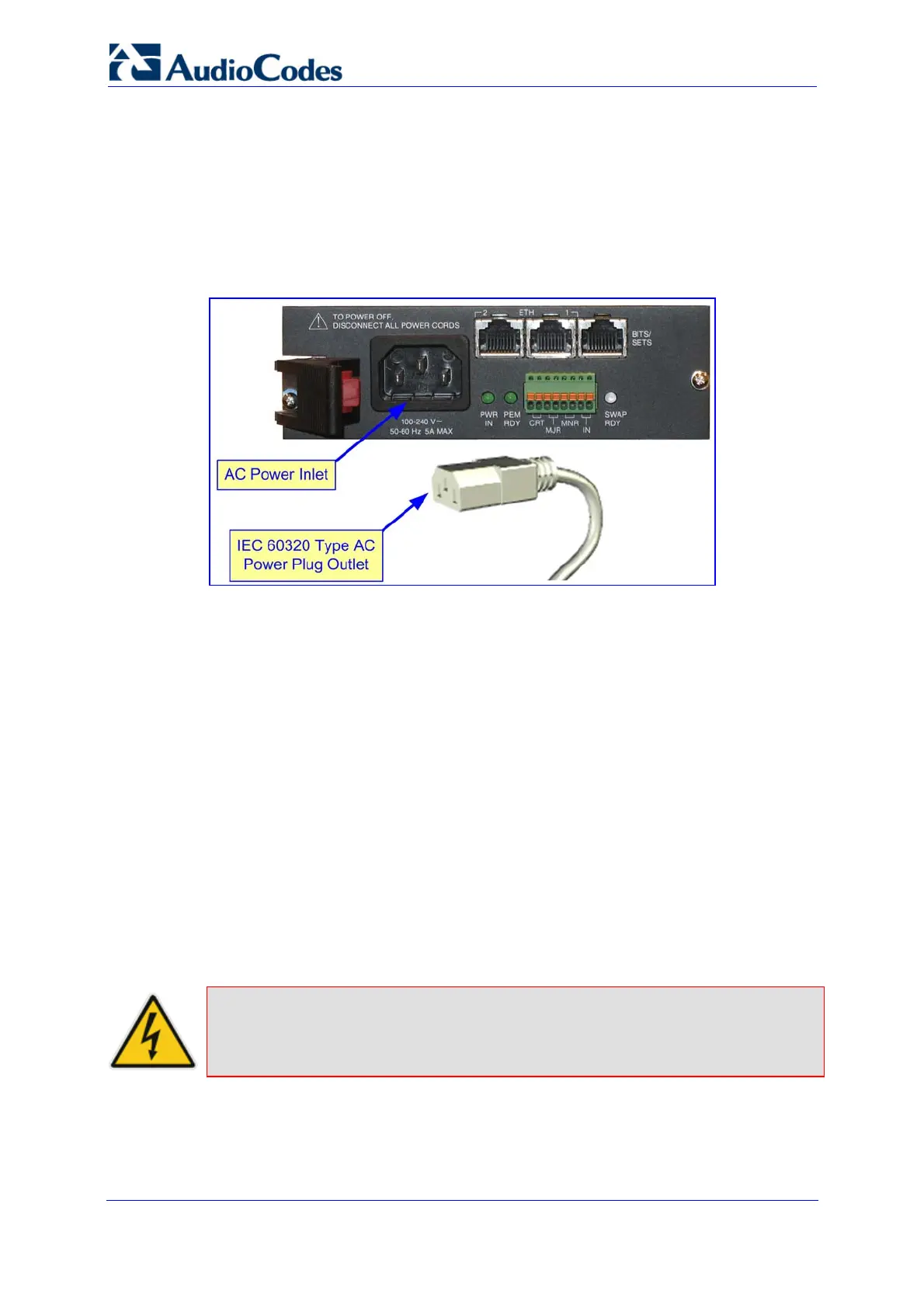

Figure 3-18: Connecting AC Power Cord
3.3.7.2 Connecting to the DC Power Supply
The device is supplied with two PEM modules. Each PEM module is equipped with a DC
power inlet (Phoenix Contact type MSTB2.5/2-STF, 5.08 mm). The DC input is floating with
a maximum input current of 5.25 A.
Depending on customer requirements, the power cabling is available in one of the following
configurations:
DC terminal block with a screw connection type: the device is provided with a pre-
installed terminal block in the chassis (DC inlet). This terminal block must be used with
14-AWG wires for connecting to the DC mains.
DC terminal block with a crimp connection type: the device is supplied with a 48-
VDC power feed cable crimped to this terminal block. The connector types that
constitute this connection is as follows:
• Phoenix contact type crimp terminal female 14-16 AWG (P/N: STG-MTN 1,5-2,5)
• Phoenix female terminal block shroud 7.62 mm 2 pole cable mounting (P/N:
PCC4/2-ST-7,62)
Electrical Caution
Before crimping the power wires to the terminal blocks, ensure that the power
wires are not connected to the DC mains.
