Installation Manual 20 Document #: LTRT-94704
Mediant 3000 & IPmedia 3000
Mediant 30000 Implementing 8410 Blade Series:

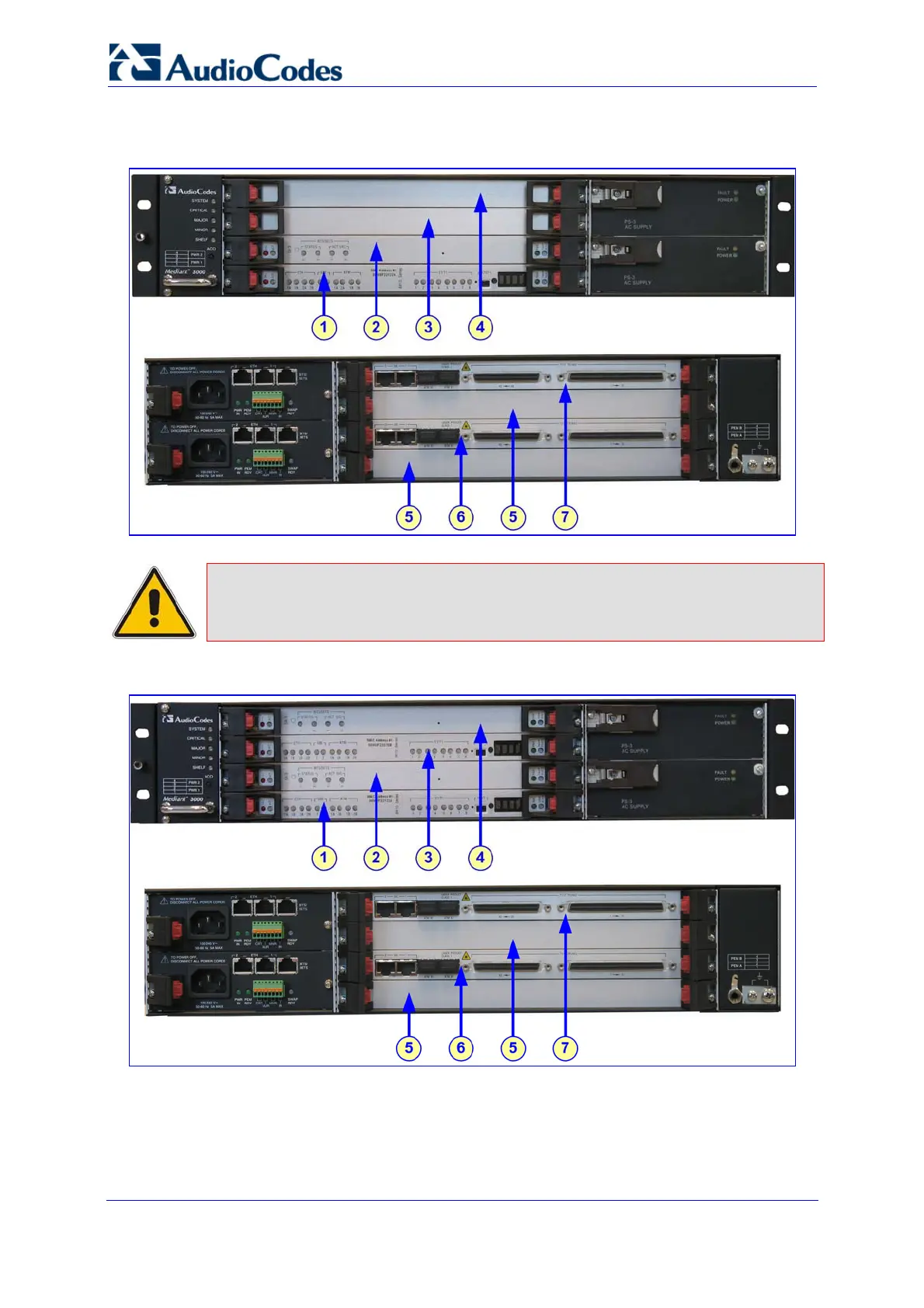

Figure 2-5: Front- and Rear-Panel Slot Assignment for Mediant 3000 Simplex with 8410 Blades
Note:
For 16-Span (Simplex) configuration, Slot 4 is covered by a blank panel.
Figure 2-6: Front- and Rear-Panel Slot Assignment for Mediant 3000 HA with 8410 Blades
Legend:
1. Slot 1 front panel: 8410 blade (active blade for Mediant 3000 HA only).
2. Slot 2 front panel: SA/M3K blade (active blade for Mediant 3000 HA only).
