Installation Manual 54 Document #: LTRT-94704
Mediant 3000 & IPmedia 3000
To interface with the SCSI connectors, you need to provide (i.e., not supplied) the following
items:
Cable: 26 AWG (100 to 120 Ohm) cable.
Connector: refer to the table below:
Table 3-3: Recommended Cable Terminations for 68-Pin and 100-Pin SCSI Connectors
Part Description No. of Pins Part # Supplier
Male Connector 1.27 mm Cable Plug 68 R-ZI-013068 All Best
Electronics Co
Ltd.
100 R-ZI-013100
Cable Hood or
Shroud
0.050 Series
Backshell
68 R-ZC-013068-S3
100 R-ZC-013100-S
Note:
For RTM-8410 with 16-spans as well as 42-spans configuration, a patch cable
adapter (refer to figure below) can be ordered separately from AudioCodes:
• 16 Spans: Cat.# SCSI-16xE1/T1 Cable
• 42 Spans: Cat.# SCSI-42xE1/T1 Cable

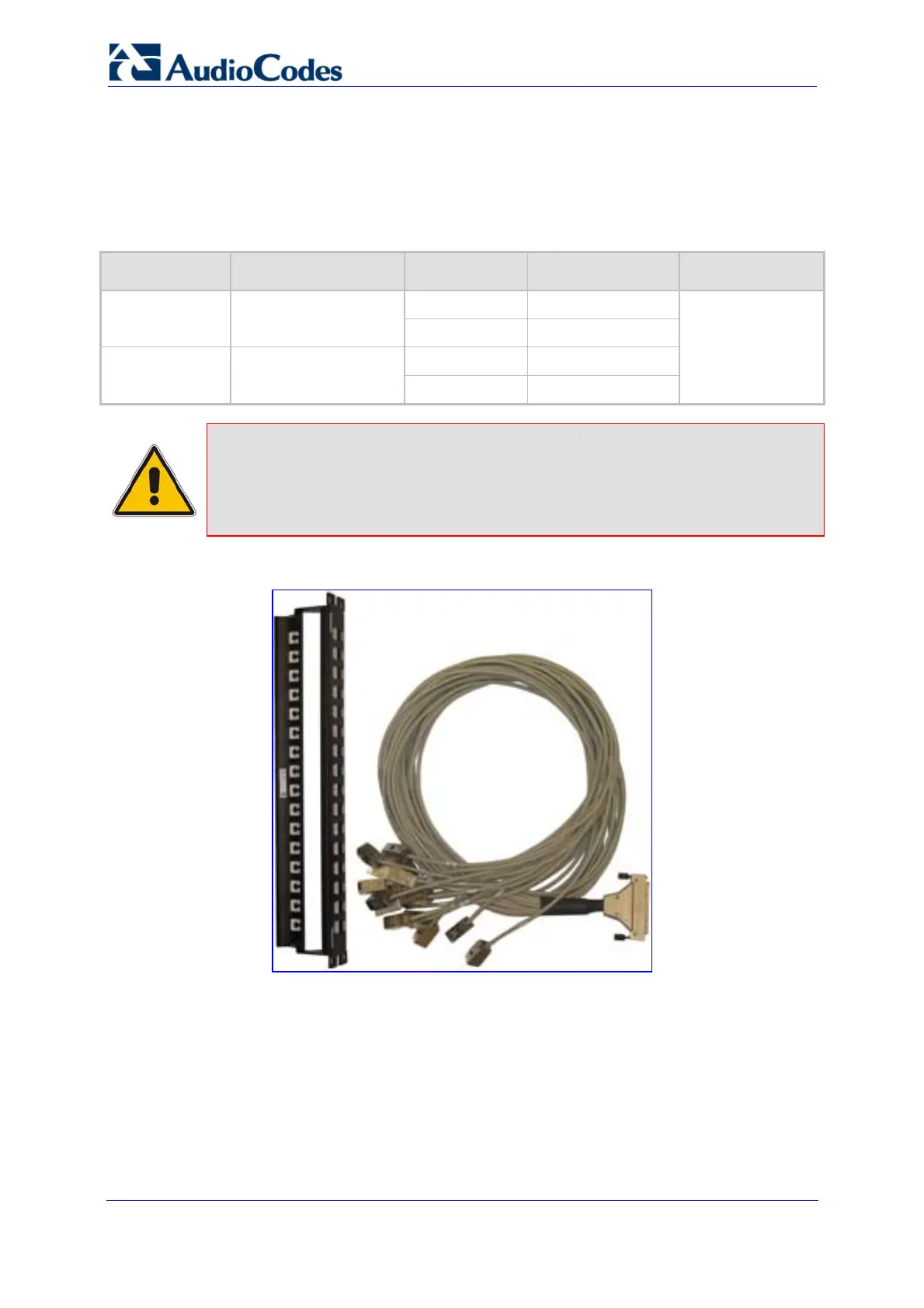

Figure 3-7: 100-Pin SCSI Patch Cable Adapter for 16 Spans (Not Supplied)
