The 100-pin female SCSI connector is shown in the figure below and must mate with a
male connector that is wired according to the connector pinouts in the following table.

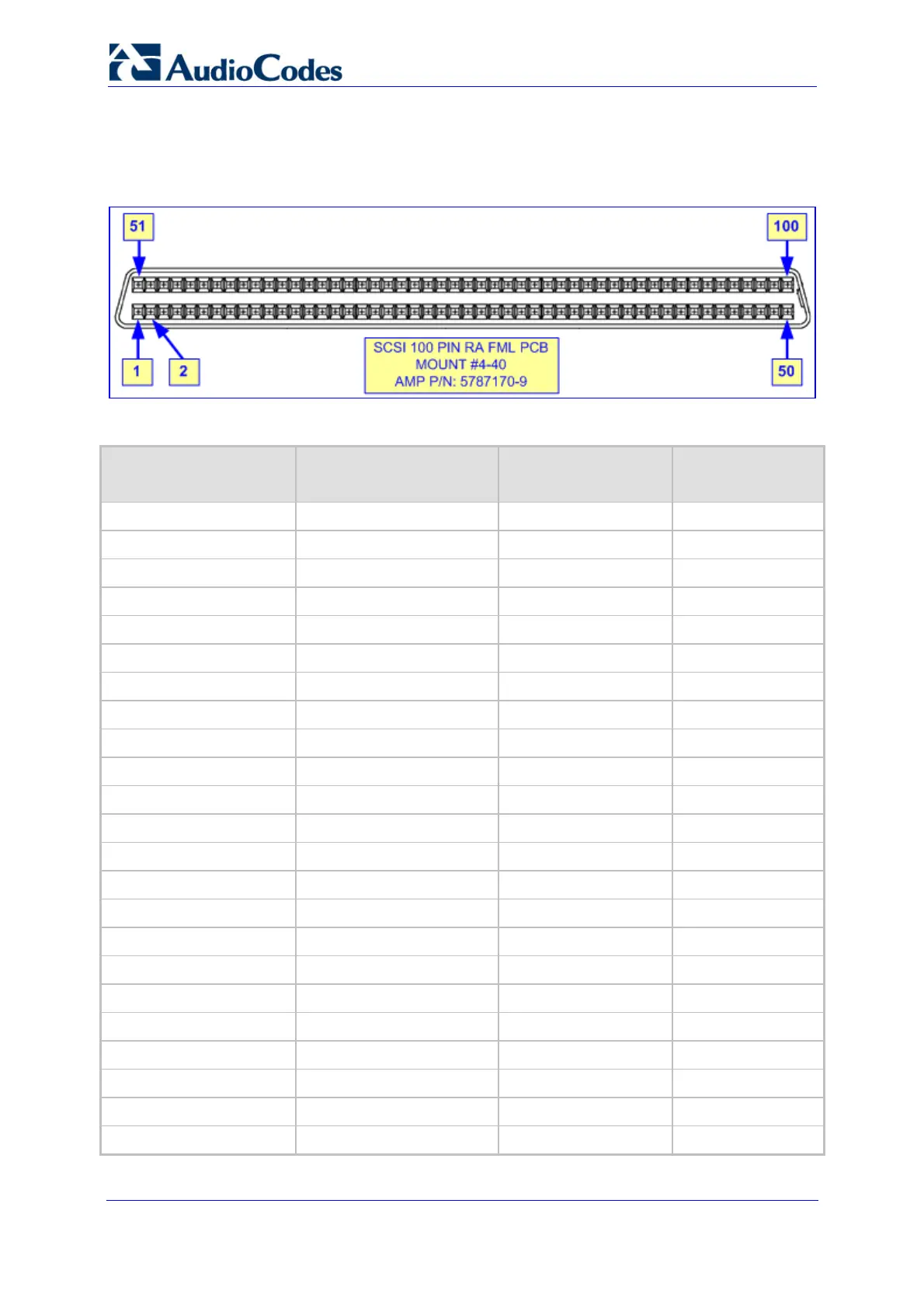

Figure 3-9: 100-Pin SCSI Female Connector on RTM-8410 Blade
Table 3-4: E1/T1 Connections 1 - 25 on the 100-Pin SCSI Connector
E1/T1 Number (1 to 25)
RTM-8410 in Slot 1
E1/T1 Number (43 to 67)
RTM-8410 in Slot 4
Tx Pins
(Tip/Ring)
Rx Pins (Tip/Ring)
1 43 2/1 52/51
2 44 4/3 54/53
3 45 6/5 56/55
4 46 8/7 58/57
5 47 10/9 60/59
6 48 12/11 62/61
7 49 14/13 64/63
8 50 16/15 66/65
9 51 18/17 68/67
10 52 20/19 70/69
11 53 22/21 72/71
12 54 24/23 74/73
13 55 26/25 76/75
14 56 28/27 78/77
15 57 30/29 80/79
16 58 32/31 82/81
17 59 34/33 84/83
18 60 36/35 86/85
19 61 38/37 88/87
20 62 40/39 90/89
21 63 42/41 92/91
22 64 44/43 94/93
23 65 46/45 96/95
