6. Lamps and lamp houses

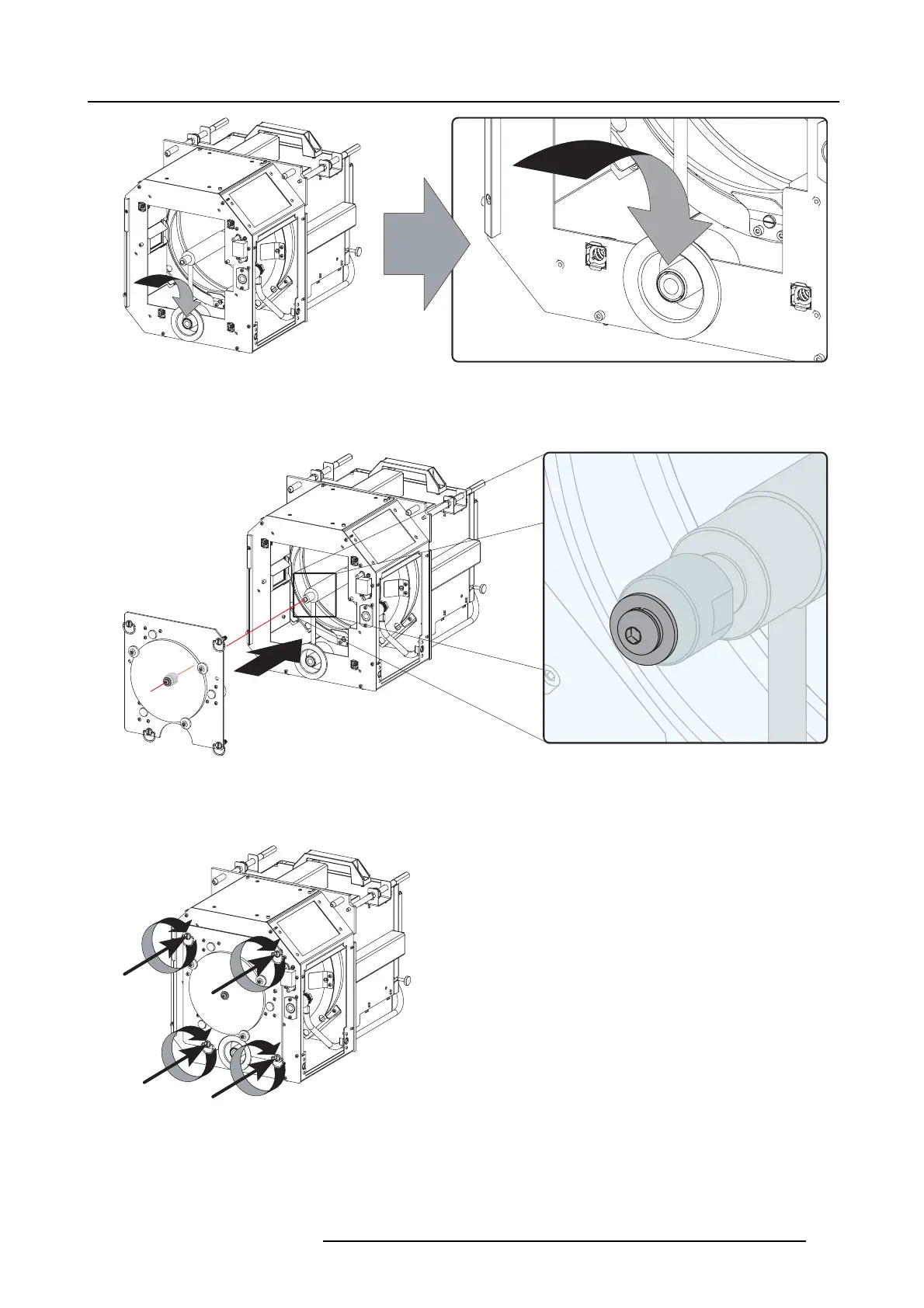

Image 6-18
Anode socket installation
7. Reinstall the UV blocker assembly as illustrated. M ake sure that the xenon lamp is pr operly supported by the lam p supporting
mechanism in the centre of the UV blocker. Use the opening at the side of the Lamp House to guide the supporting pin of the
xenon lamp into the anode supporting mechanism.
Image 6-19
UV blocker installation
8. Secure the U V blocker by fastening the four reta ining thum bscrews as illustrated.
Note: Please ensure that the thumb sc rews turning wires ar e flush with the cover or interference w ill occur while inserting t he
lamp house into the projector.
Image 6-20
Secure UV blocker
9. Fasten the cathode si
de of the xenon lamp using a hexagon socket head screw M6 x 40 and a plain washer as illustrated. Use a
torque of 2,5 Nm (1,84 lbf*ft) to fasten the hexagon socket head screw. Use for that a torque wrench with a 5 mm Allen soc ket.
Caution: Make sure that the both pins of the c athode adapter remain enga ged in the foreseen slots. Use one hand to keep
the xenon lamp into
position w hile inserting the hex agon socket head screw.
R5905043 DP2K-12C/11CX 19/02/2018
105
