15. Removal and installation of the projector covers
15.6 Removal of t he side cover plate of the Light Processor compartment
To access the s ide cover plate of the Light Processor co mp artme nt the projector left side cover has to be
removed first. This procedure assumes that the projector left side cover is already removed.
CAUTION: O pening the Light Processo r com partm ent by removing the top cover plate or side cover plate wi
ll
result in a tamper even t. An authorization to clear t he security w arn ing on the projector, af ter closing off the
Light Processor compartmen t, will be n eeded !
Necessary tools
3mm Allen wrench.
How to remove the side cover plate from the Light Processor compartment?

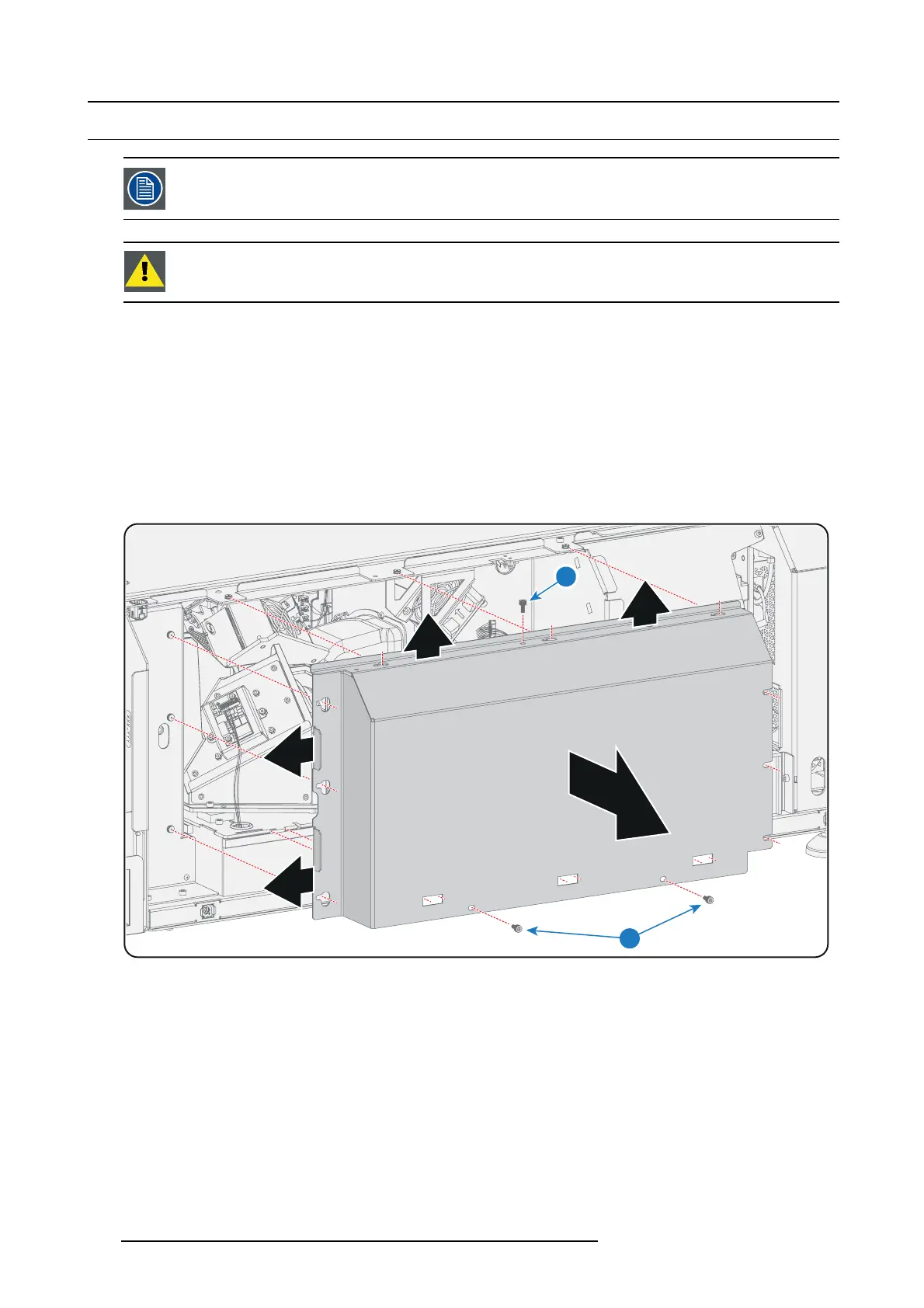

1. R emov e the screw at t he top of the cover plate (reference 1 image 15-8) and the two screws at the bottom of the cover plate
(reference 2 image 15-8). Use a 3mm Allen wrench.
2. R emov e t he side cove r plate as follows:
a) First move the side cover plate a bit towards the front side (lens side) of the projec tor.
b) then move the side cove r plate a bit upwards.
c) then move the side cover plate away from the projector.
2
1
A
B
B
C
A
Image 15-8
124 R5977692 DP2K-S SERIES 10/12/2012
