7. Input & Communication

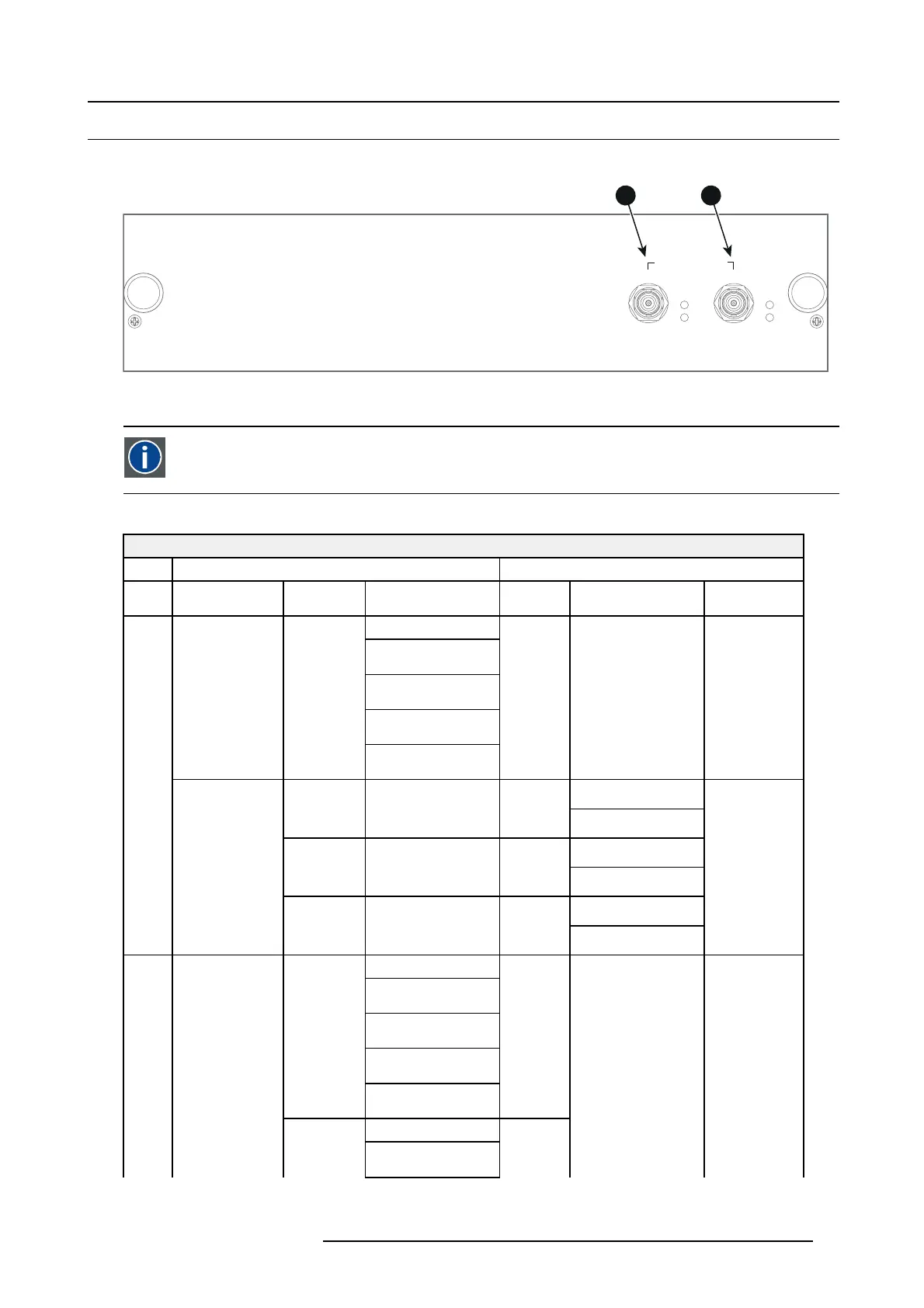

7.5 HD-SDI Input Module (optional)
Location of the source input ports
SMPTE 292/424 IN
AB
SEL
SYNC OK
SEL
SYNC OK
1 2
Image 7-5
1 SMPTE 292/424 input, port A (maximum cable length of 30 m allowed)
2 SMPTE 292/424 input, port B (maximum cable length of 30 m allowed)
SMPTE
Society of M otion Picture and Television E ngineers - A global organization, based in the United States, that sets stan-
dards for baseband visual com munications. This includes film as well as v ideo standa
rds.
HD-SDI settings
Source: 2K
General settings
Advanced settings
Port Port type Mode
Scan type Color
space
Pixel mapping
Calibration
Progressive
Progressive - field bit
normal
Progressive - field bit
inverted
Progressive SF - 2nd
field dominant
HDSD I Single link
4:2:2 10
bits/color
Progressive SF - 1st
field dominant
YCbCr HDSDI-Single link Single
3G-level A -Single link
4:2:2 12
bits/color
Progressive
YCbCr
3G-level B-Du al link
3G-level A -Single link
4:4:4 10
bits/color
Progressive
RGB
3G-level B-Du al link
3G-level A -Single link
AorB
3GSDI link
4:4:4 12
bits/color
Progressive XYZ/RGB
3G-level B-Du al link
Single
Progressive
Progressive - field bit
normal
Progressive - field bit
inverted
Progressive SF - 2nd
field dominant
4:4:4 10
bits/color
Progressive SF - 1 st
field dominant
RGB
Progressive
Progressive - field bit
normal
A+B
HDSD I Duallink
AB
4:4:4 12
bits/color
XYZ/RGB
HDSDI-Dual link Single
R5977692 DP2K-S SERIES 10/12/2012
41
