11. Convergence
11.1 Convergence controls
Extended control knobs
As the DMD of the red channel is not accessible in the pro jector, the im age of this D MD will be taken as reference. Blue and
green will be aligned on red when a sm all convergence drift is recognized. So, the DMD of the red channel is fixed and c an not be
adjusted. The blue and green channel have pivot plates equipped with three ex tended control knobs for conver gence adjustment.
The adjustment knobs are num bered from 1 to 6 and have the same color as the c hannel which the y affect.
To access the control knobs the top cover and left side cover of the projector and the top cover plate and s ide cover plate of the
Light Processor compartment have to be remo ved. For easy access to control knobs No1 and No4, we advise locating the Light
Processor top fan unit in it’s upper position, hereby still pr oviding the necessary cooling to the unit.
1
4
6
5
2
3

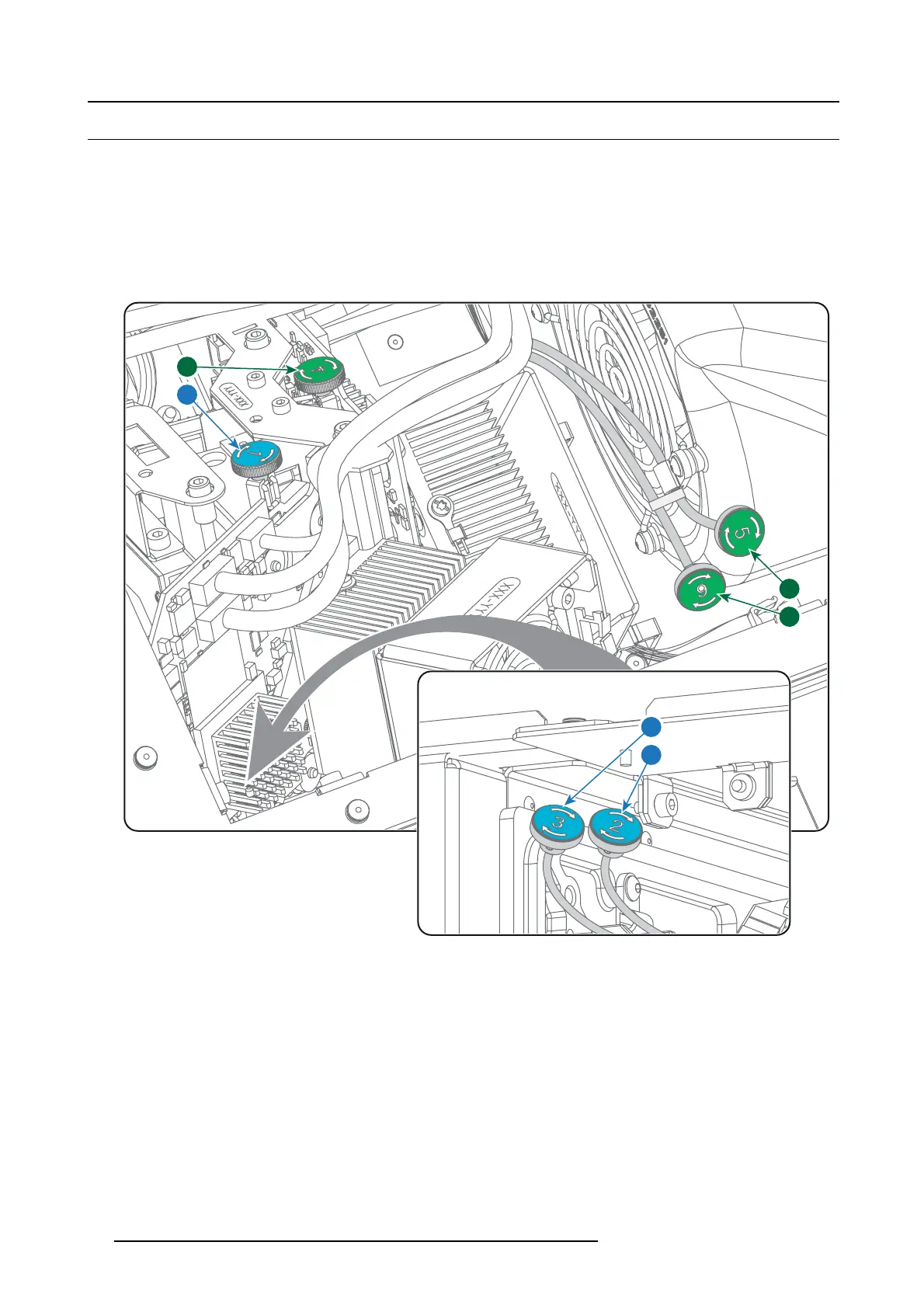

Image 11-1
1 Blue channel, knob number 1.
2 Blue channel, knob number 2.
3 Blue channel, knob number 3.
4 Green channel, knob number 4.
5 Green channel, knob number 5.
6 Green channel, knob number 6.
68 R5977692 DP2K-S SERIES 10/12/2012
