Page 156
724-746-5500 | blackbox.com
Chapter 4: Configuration
Java Tool
• Select System > Switch in the task area.

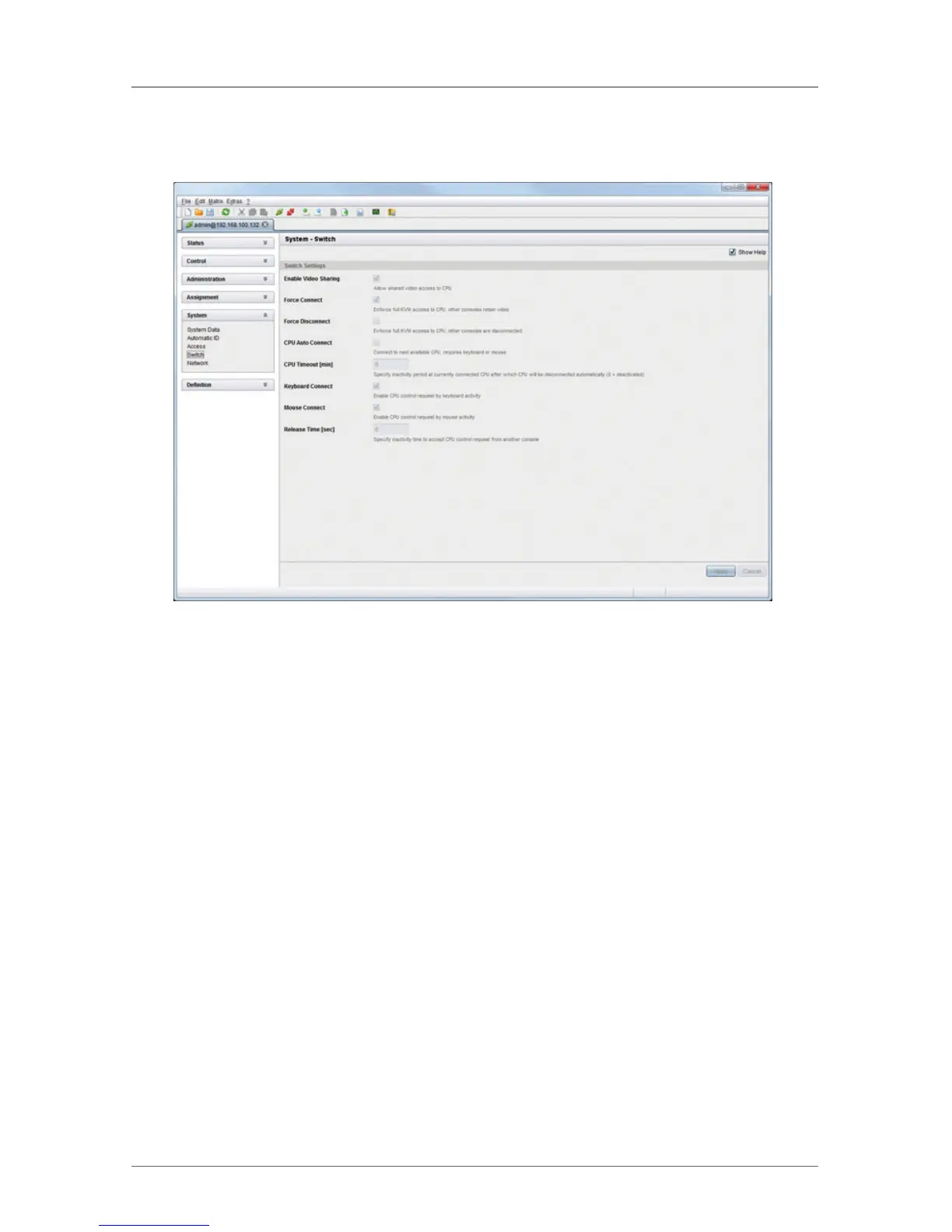

Figure 4-69. Menu System—Switch.
To configure parallel operation, proceed as follows:
1. Activate the Enable Video Sharing function.
2. Activate the Force Connect function.
3. Activate the Keyboard Connect function, if taking over control by a keyboard
event should be possible.
4. Activate the Mouse Connect function, if taking over control by a keyboard
movement should be possible.
5. Define a Release Time of inactivity (0 - 999 sec.) after that control can be taken
over.
4.9.7 Multi Screen Control
A CON device with several monitors can be configured via USB-HID switching to
control several connected sources (computer, CPU). To support this feature, you
will need to have the ACX-GSW license activated.
