Chapter 2: Overview
2.5.14 ServSwitch DKM FX Compact 64-Port Fiber (ACXC64F)

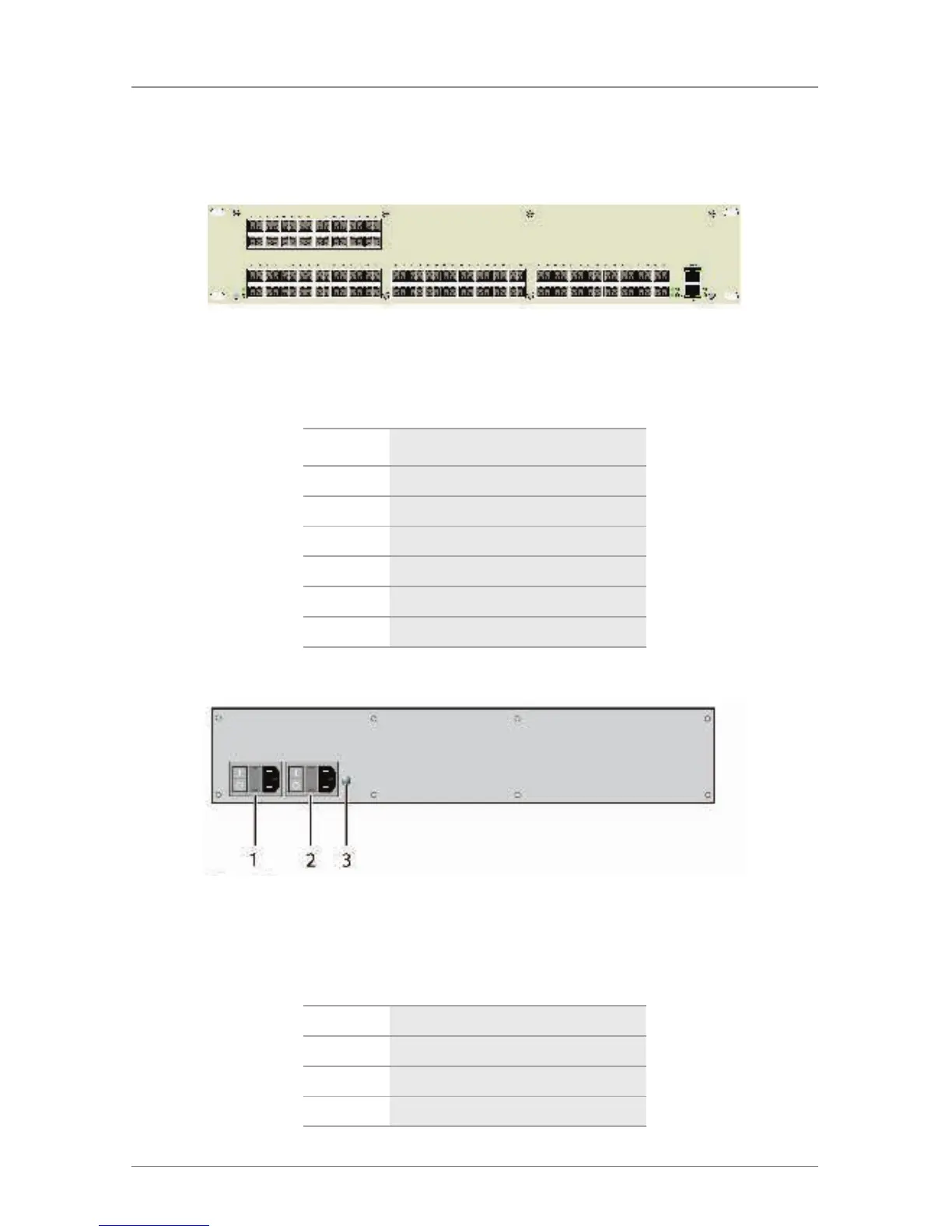

Figure 2-22. Front view, ACXC64F.
Table 2-24. ACXC64F components.
Number Component
1 I/O ports 1–16 (SFP)
2 I/O ports 49–64 (SFP)
3 I/O ports 17–32 (SFP)
4 I/O ports 33–48 (SFP)
5 Serial connection (RJ-45)
6 Network connection (RJ-45)
Figure 2-23. Back view, ACXC64F.
Table 2-25. ACXC64F back-panel components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
