Page 31

724-746-5500 | blackbox.com

Chapter 2: Overview

Table 2-7. ACX288 components.

Number Component

1 Slot for Power Supply Unit 1

2 Slot for Fan Tray 1

3 Slot for Power Supply Unit 2

4 Slot for Fan Tray 2

5 Slot for I/O Boards 1–36

6 Slot for Power Supply Unit 3

7 Grounding

8 Slot for CPU board

NOTE: The ServSwitch DKM FX Compact models are described next.

2.5.5 ServSwitch DKM FX Compact 8-Port, CATx (ACXC8)

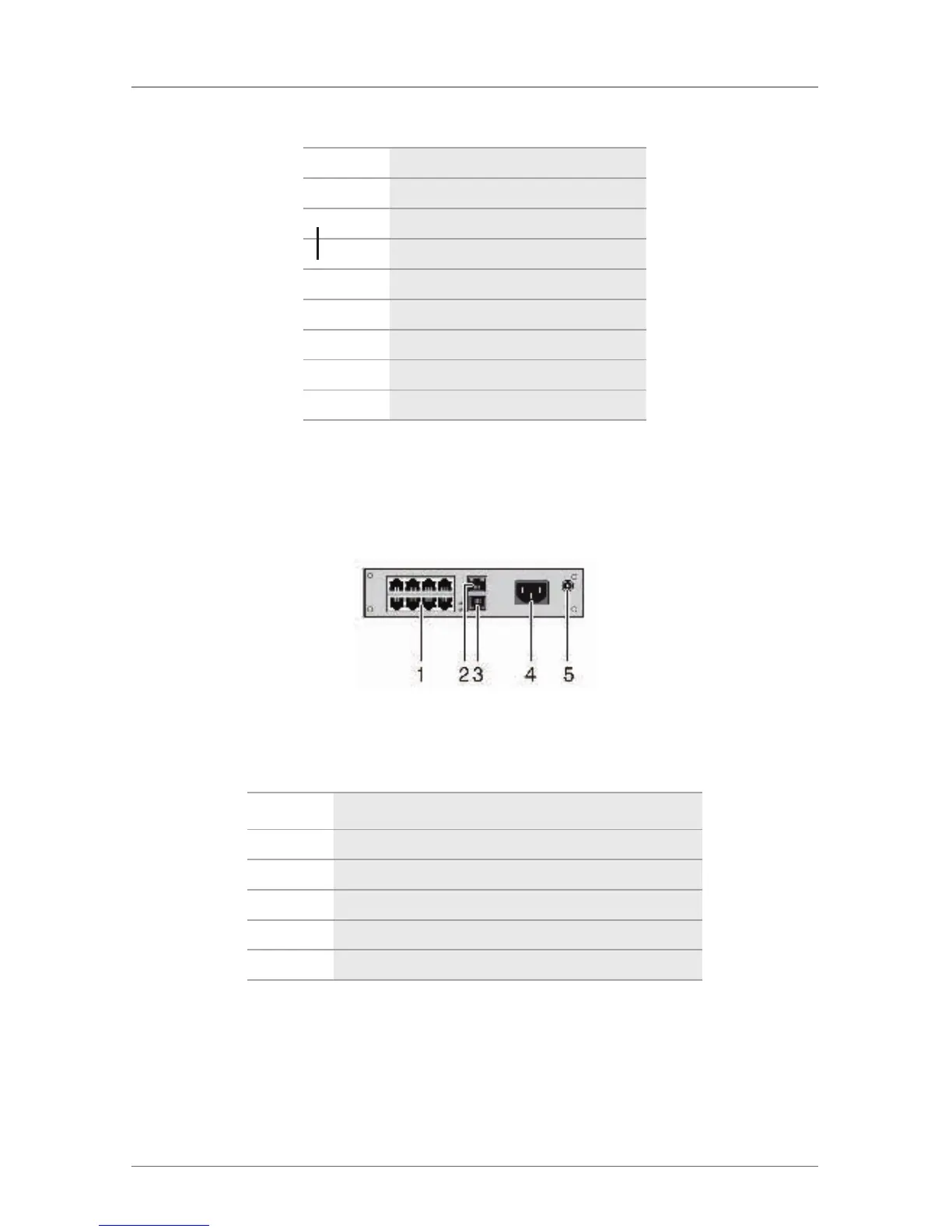

Figure 2-6. Front view, ACXC8.

Table 2-8. ACXC8 components.

Number Component

1 I/O ports 1–8 (CATx)

2 Serial connection (RJ-45)

3 Network connection (RJ-45)

4 Connect to power supply

5 Connect to a 5-VDC power supply (redundancy, optional)
