Chapter 2: Overview
2.6.3 Port Status Matrix Grid
In this menu, the connections and the switching status between the various CON
and CPU Devices are shown within the Matrix Grid.
The port view is divided into the different Grid matrices. As a result, each matrix is
displayed in an optimized view of 24 ports per line in order to be able to show
also a larger number of ports.
You have the following option to access the menu:

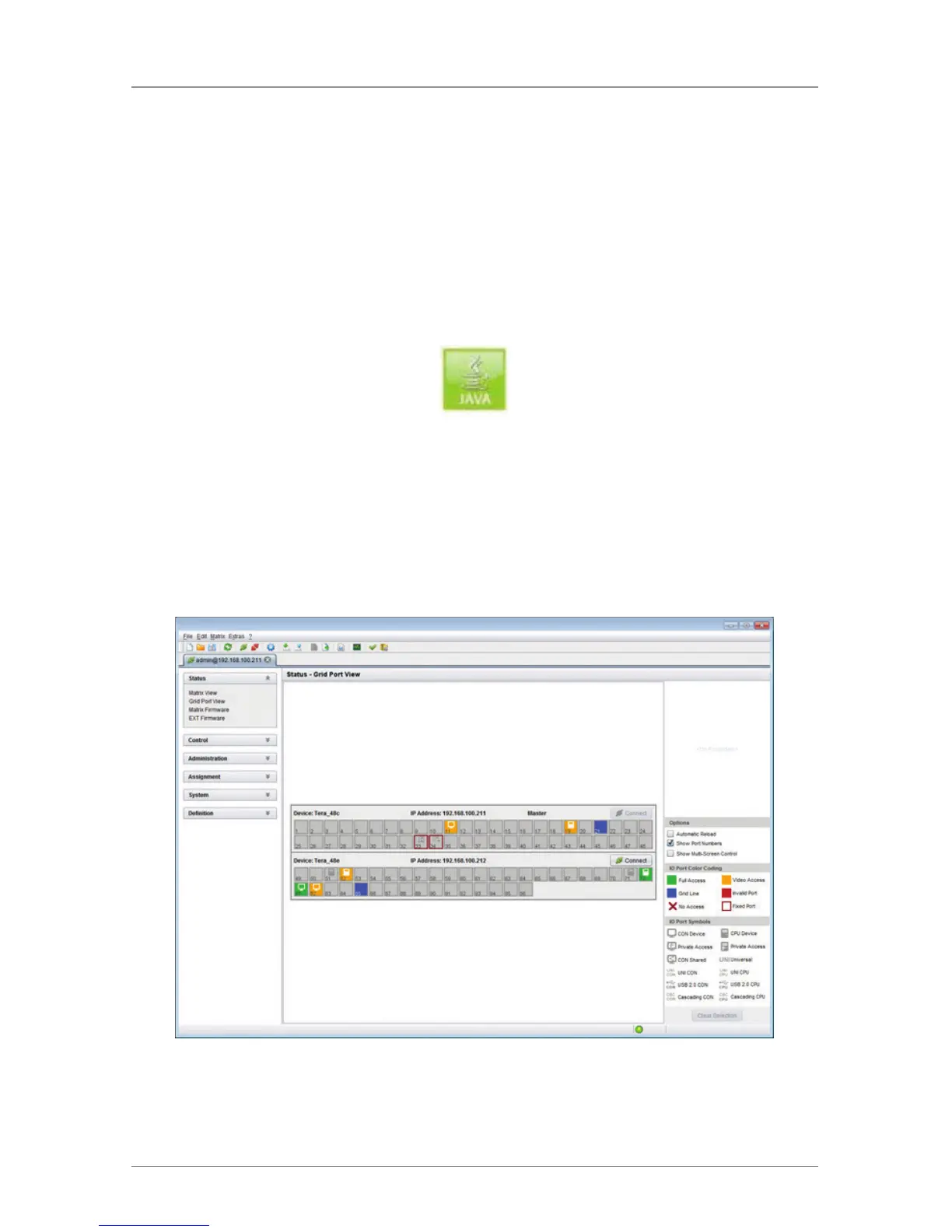

Figure 2-42.
Java Tool
The current port configuration of the Matrix Grid is illustrated in this menu.
• Select Status > Grid Port View in the task area when connected to the matrix.
Figure 2-43. Menu Status—Grid Port View.
NOTE: Functions, colors, and symbols used in the Grid Port View are identical to
those in the port status of the Matrix View (see Section 2.6.2).
