Chapter 2: Overview
2.5.17 ServSwitch DKM FX Compact 48 CATx Ports, 16 Fiber Ports
(ACXC48F16)

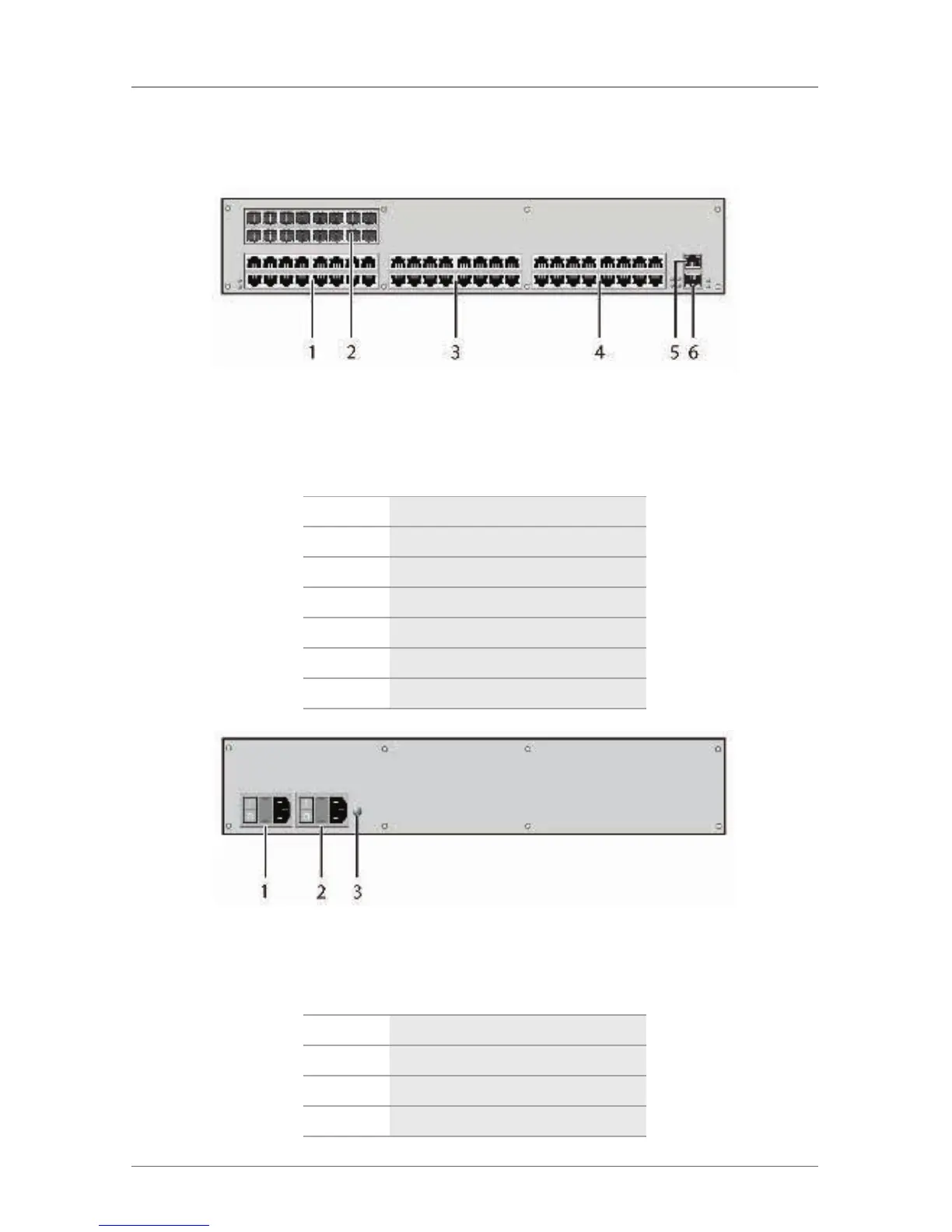

Figure 2-28. Front view, ACXC48F16.
Table 2-30. ACXC48F16 components.
Number Component
1 I/O ports 1–16 (CATx)
2 I/O ports 49–64 (SFP)
3 I/O ports 17–32 (CATx)
4 I/O ports 33–48 (CATx)
5 Serial connection (RJ-45)
6 Network connection (RJ-45)
Figure 2-29. Back view, ACXC48F16.
Table 2-31. ACXC48F16 back-panel components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
