Page 59
724-746-5500 | blackbox.com
Chapter 2: Overview
NOTE: If the Mouse Connect or Keyboard Connect options are used, the name of
the console with keyboard/mouse control will be displayed at those
consoles that do not have K/M control at the moment. The console is
displayed in a yellow color under “Access.”

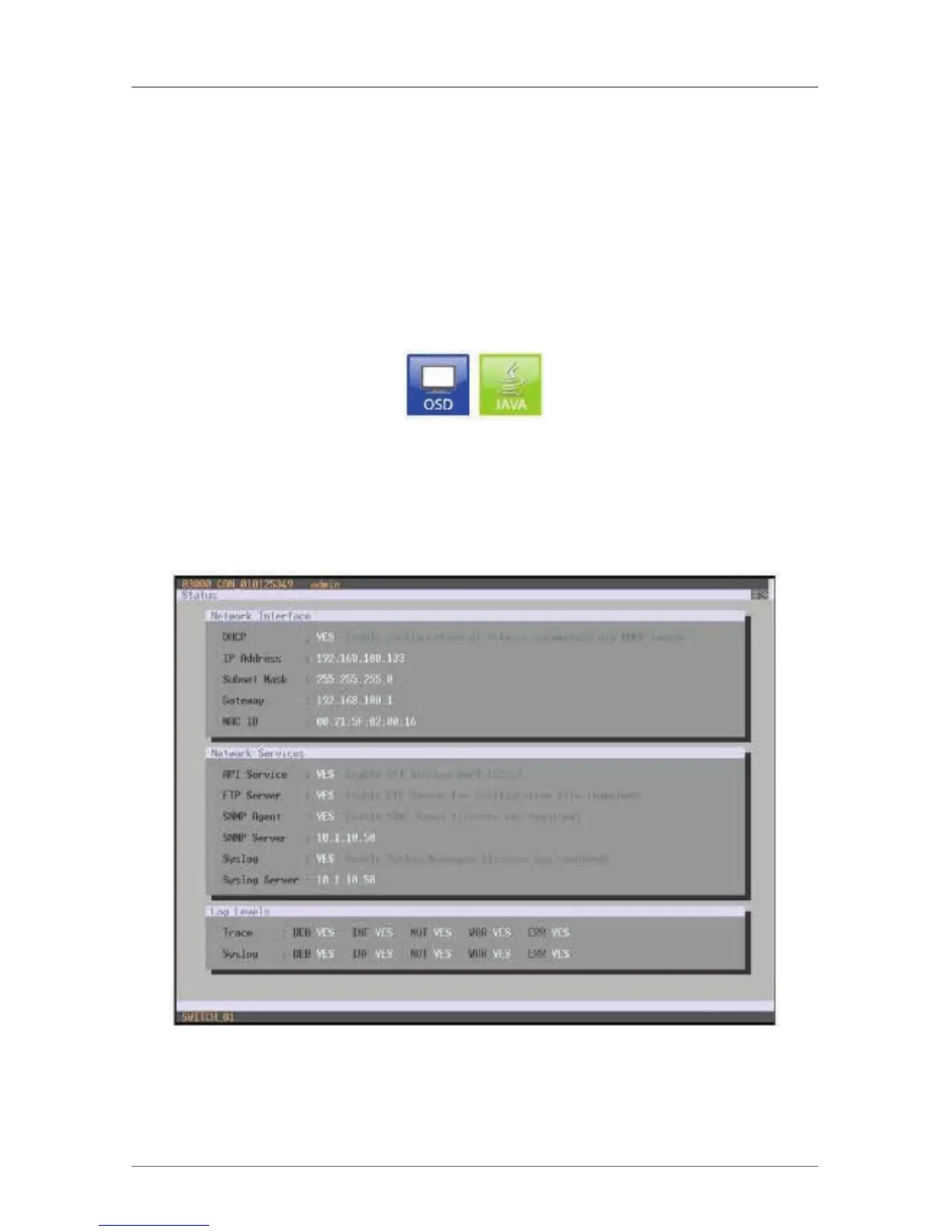

2.6.5 Network Status
The current network configuration is shown in this menu.
You can access the menu via OSD or Java:
Figure 2-45. OSD and Java icons.
OSD
Select “Status > Network” in the main menu.
Figure 2-40. Status—Network screen.
