Page 164
724-746-5500 | blackbox.com
Chapter 4: Configuration
Java Tool
1. Select “Administration > Activate Configuration” during on-line mode in the
task area.
2. Select the required configuration.
3. Load the configuration by pressing the “Activate” button.

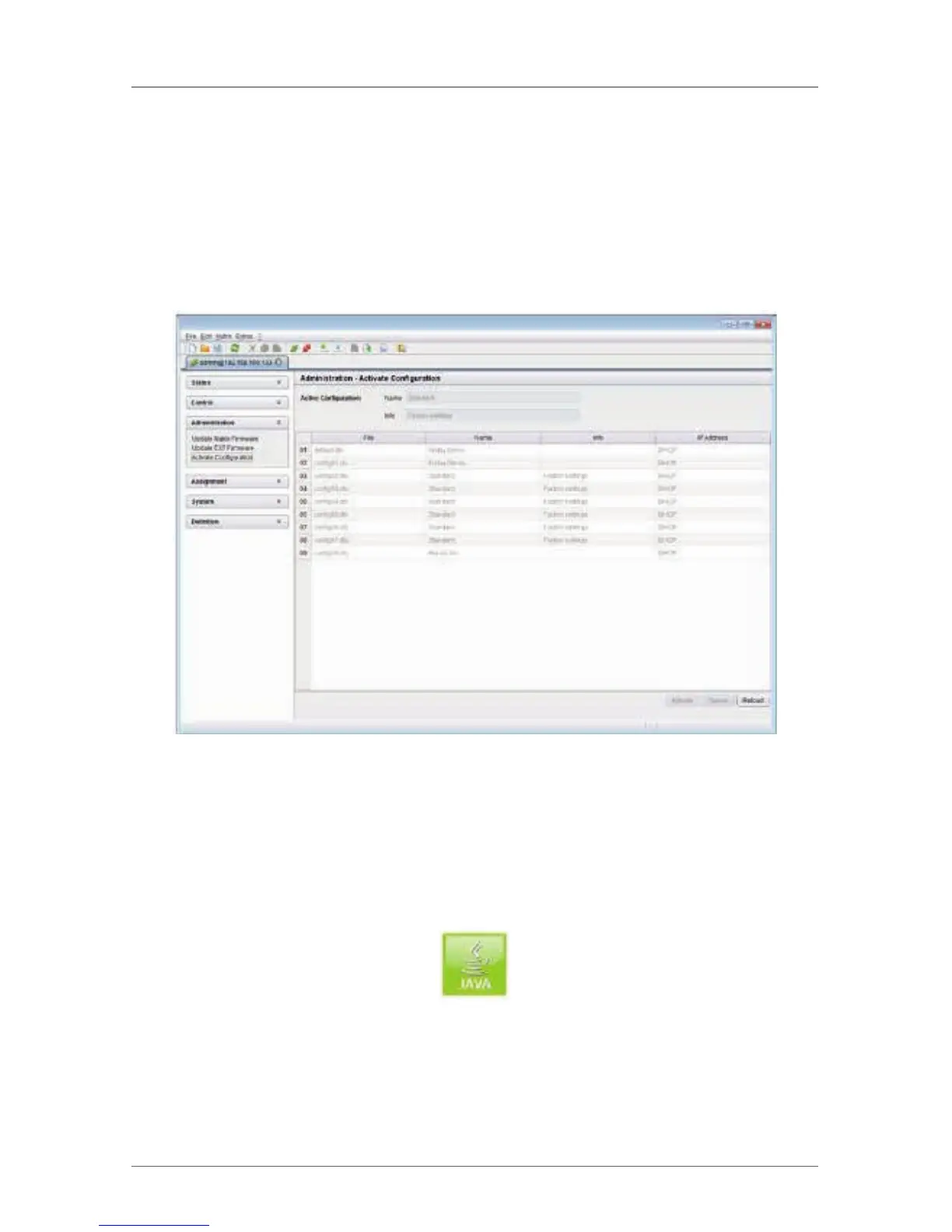

Figure 4-78. Menu Administration—Activate Configuration on Switch screen.
4.10.4 Saving of Configurations (External)
Created configurations can be saved as a file on your local computer or laptop for
backup purposes.
You can access the menu via the Java icon:
Figure 4-79. Java icon.
1. Select “File > Save As” in the menu bar.
