Chapter 2: Overview
2.5.12 ServSwitch DKM FX Compact 48-Port Fiber (ACXC48F)
1 2 3 4 5

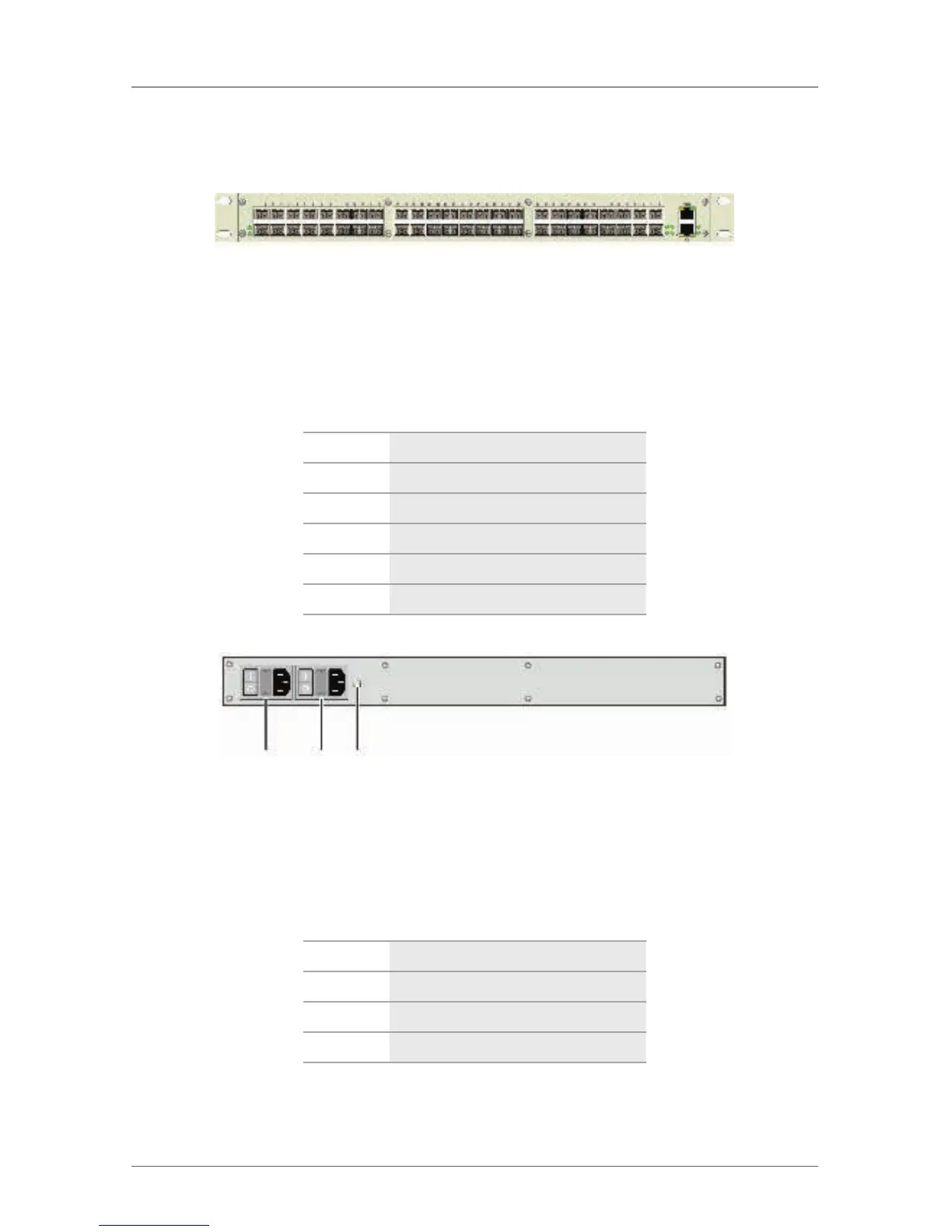

Figure 2-18. Front view, ACXC48F.
Table 2-20. ACXC48F front-panel
components.
Number Component
1 I/O ports 1–16 (SFP)
2 I/O ports 17–32 (SFP)
3 I/O ports 33–48 (SFP)
4 Serial connection (RJ-45)
5 Network connection (RJ-45)
1 2 3
Figure 2-19. Back view, ACXC48F.
Table 2-21. ACXC48 back-panel
components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
