Chapter 2: Overview
2.5.16 ServSwitch DKM FX Compact 80-Port Fiber (ACXC80F)

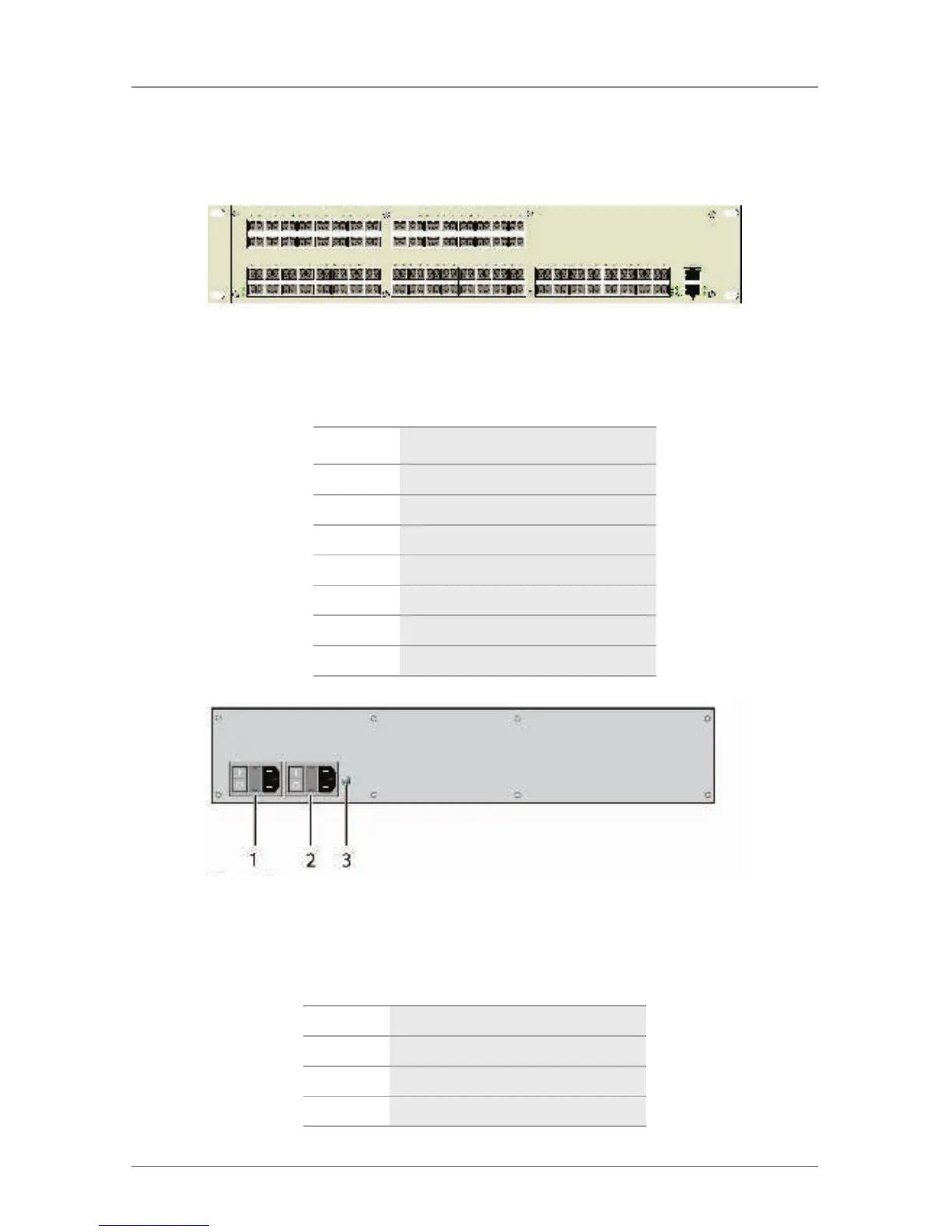

Figure 2-26. Front view, ACXC80F.
Table 2-28. ACXC80F components.
Number Component
1 I/O ports 1–16 (SFP)
2 I/O ports 49–64 (SFP)
3 I/O ports 17–32 (SFP)
4 I/O ports 65–80 (SFP)
5 I/O ports 33–48 (SFP)
6 Serial connection (RJ-45)
7 Network connection (RJ-45)
Figure 2-27. Back view, ACXC80.
Table 2-29. ACXC80 back-panel components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
