Black Box ServSwitch DKM FX User Manual

Page 17
724-746-5500 | blackbox.com

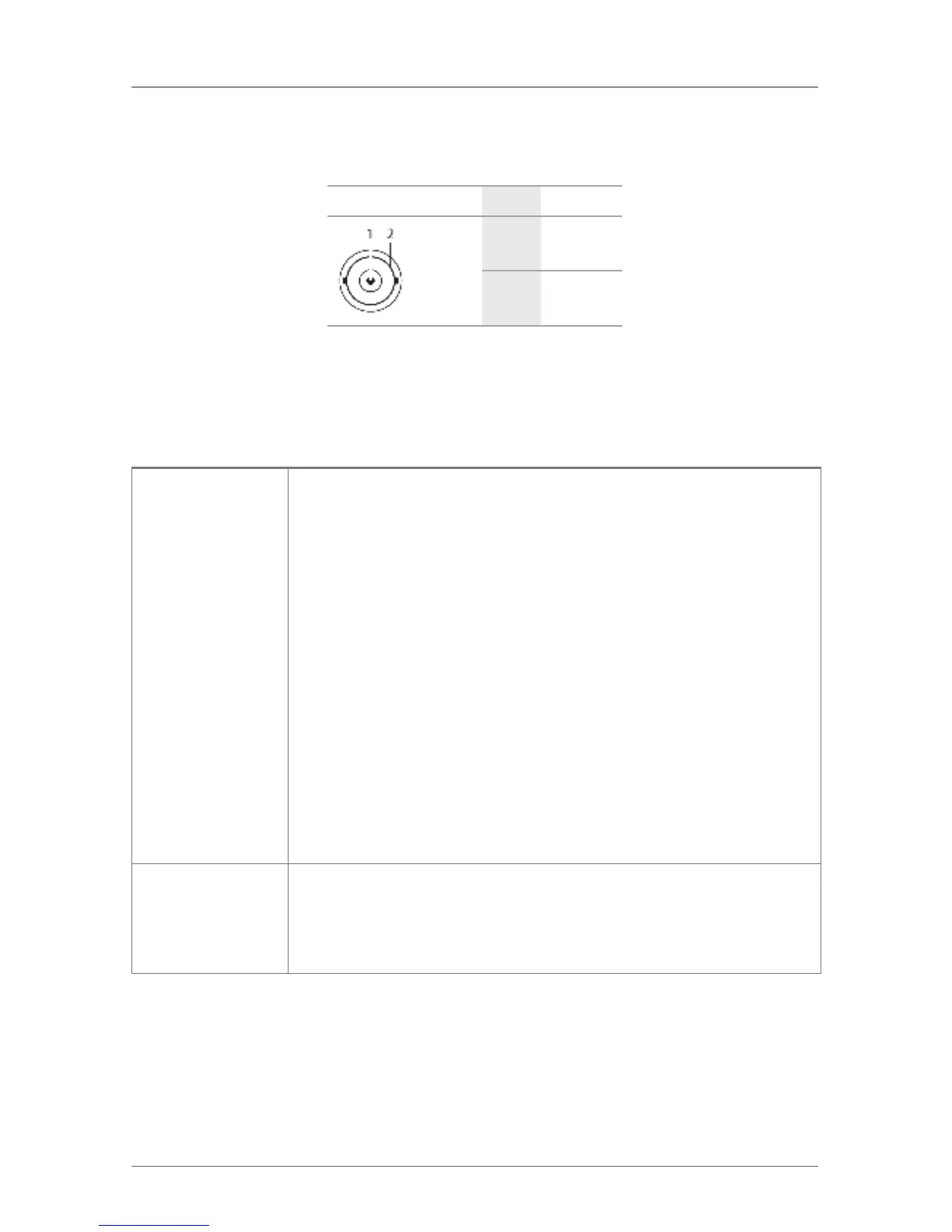

Chapter 1: Specifications
1.3.4 I/O Board SDI
Table 1-13. RJ-45 connector.
Picture Pin Signal
1 Data In
2 GND
1.4 Power Supply, Environment, Dimensions, and Weight
Power ACXC48, ACXC48F, ACXC32, ACXC32F, ACXC16, ACXC16F:
1.4 A, 100–240 VAC, 50–60 Hz internal power supply;
ACXC80, ACXC80F, ACXC64, ACXC64C, ACXC48F32,
ACXC48F16: 2.3 A, 100–240 VAC, 50–60 Hz;
ACXC80, ACXC80F, ACXC48F32: Max. 125 W;
ACXC64, ACXC64F, ACXC48F16: Max. 105 W;
ACXC48, ACXC48F: Max. 90 W;
ACXC32, ACXC32F: Max. 65 W;
ACXC16, ACXC16F: Max. 40 W;
ACXC8, ACXC8F: Max. 13 W;
ACX048: 5 A, 94 W max. without I/O boards;
ACX080, ACX080-PS: 5 A, 99 W max. without I/O boards;
ACX160, ACX160-PS: 9 A, 188 W max. without I/O boards;
ACX288, ACX288-PS: 12 A, 202 W max. without I/O boards;
I/O boards (ACXI08-C, ACXI08-SM, ACXI08-SPF): 13 W max.
Environment Temperature Tolerance:
Operating: +41 to +113° F (+5 to +45° C);
Storage: -13 to +140° F (-25 to +60° C);
Relative Humidity: Max. 80%, non-condensing
