Chapter 3: Installation
8. Connect the 5-VDC power supply units to the CPU units.
9. Start the system.
3.3 Example Applications
The ServSwitch DKM FX supports a flexible configuration of your system
environment:
For example, part of the ServSwitch DKM FX can be configured as a single-head,
dual-head, quad-head, or octo-head computer or workstation, or even as a video
matrix. You can also configure KVM and USB 2.0.
In addition to the access via OSD by the keyboard connected to the CPU board or
an extender CON unit, you have the following access options:
• via Java Tool
• via serial interface
A connection to common media controls is possible, too, if you have the ACX-API
installed.
Sections 3.2.1 through 3.2.4 describe typical installations of the ServSwitch DKM FX.
3.3.1 KVM Matrix
In single-head mode, up to 288 ports can be used either as an input or as an
output port, depending on components and equipment. At the same time, the
DKM offers non blocking access for all users (user access is not limited by the
activities of another user).
1 2 3 4 3 5 6

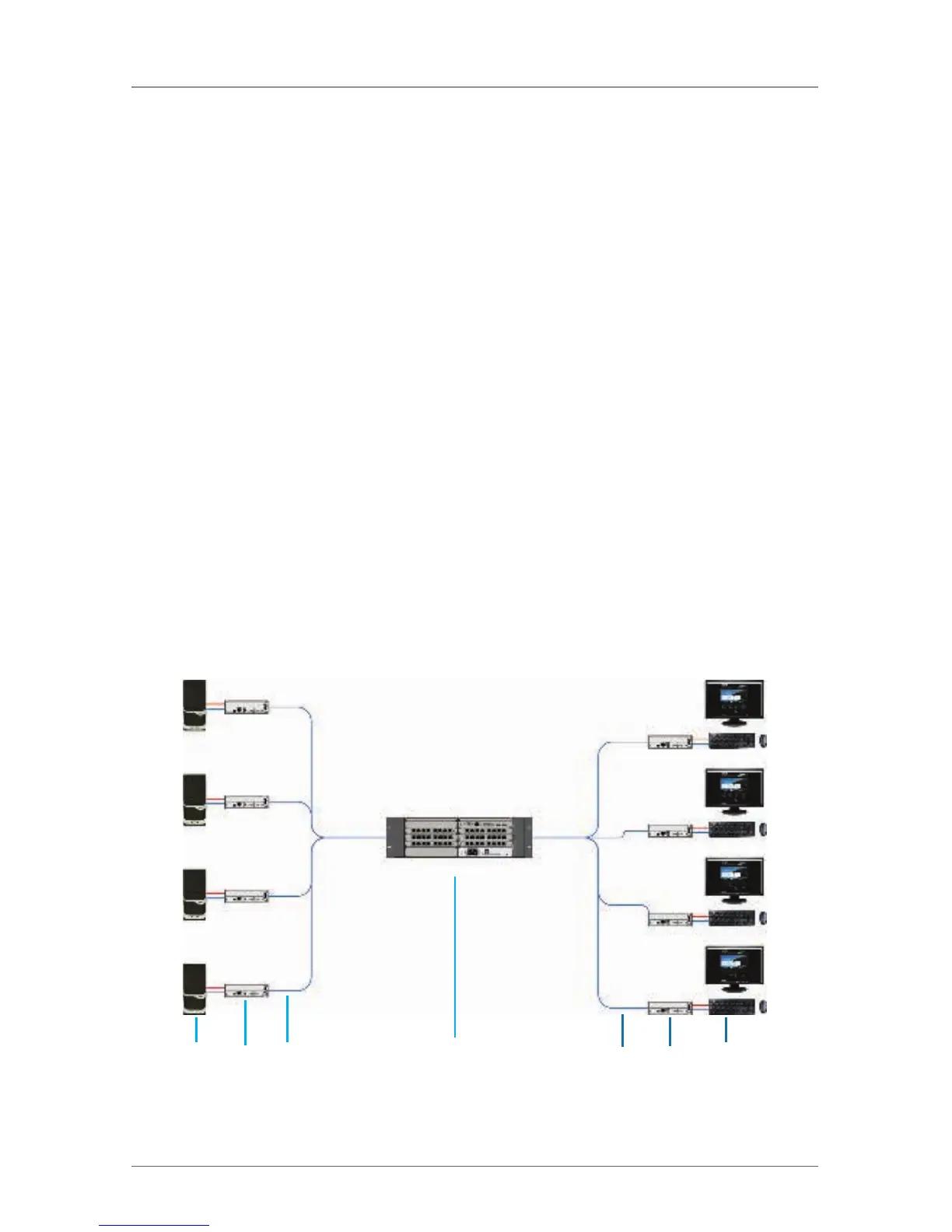

Figure 3-1. KVM using ServSwitch DKM FX application.
