Chapter 2: Overview
2.5.18 ServSwitch DKM FX Compact 48 CATx Ports, 32 Fiber Ports
(ACXC48F32)

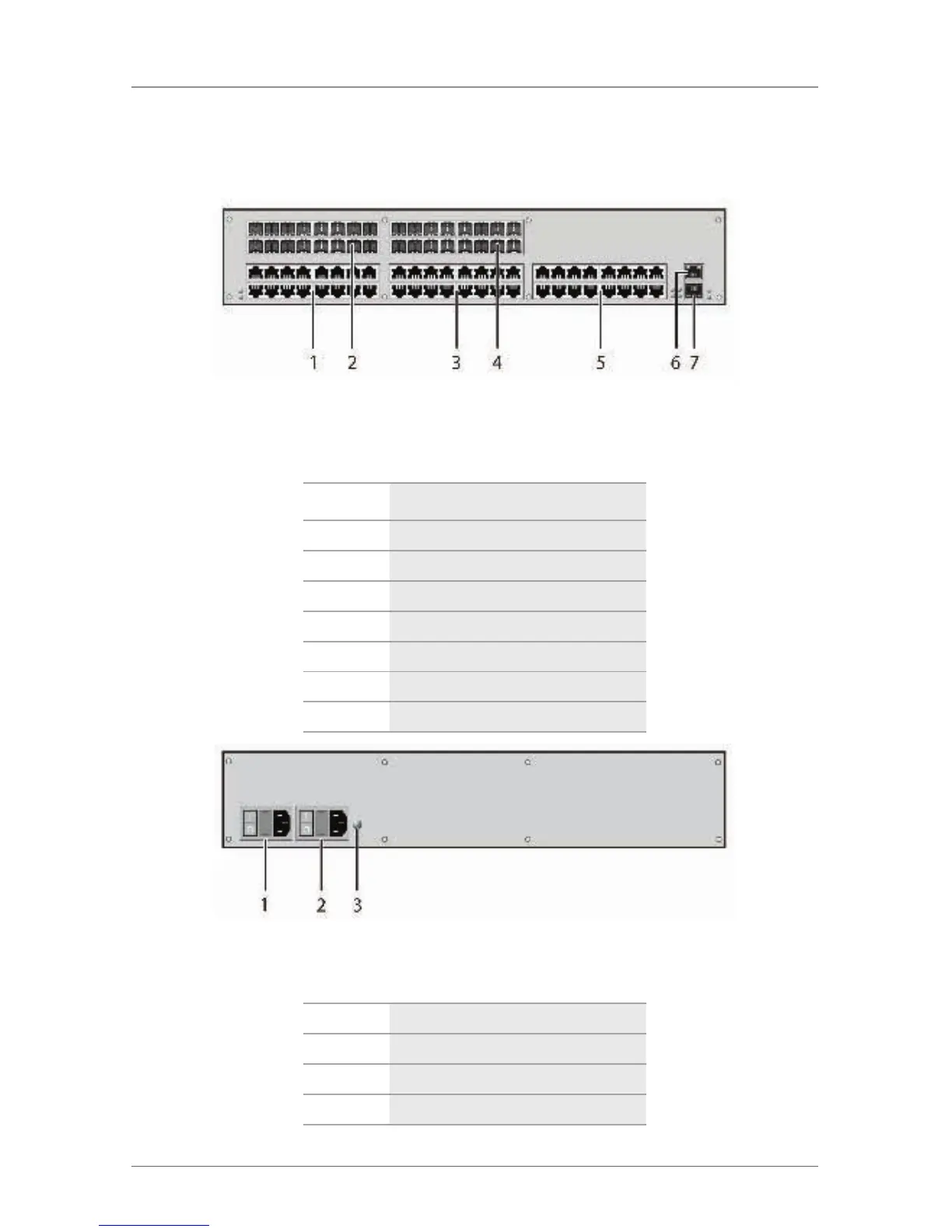

Figure 2-30. Front view, ACXC48F32.
Table 2-32. ACXC48F32 components.
Number Component
1 I/O ports 1–16 (CATx)
2 I/O ports 49–64 (SFP)
3 I/O ports 17–32 (CATx)
4 I/O ports 65–80 (SFP)
5 I/O ports 33–48 (CATx)
6 Serial connection (RJ-45)
7 Network connection (RJ-45)
Figure 2-31. Back view, ACXC48F32.
Table 2-33. ACXC48F32 back-panel components.
Number Component
1 Power supply unit 1
2 Power supply unit 2
3 Grounding
