Chapter 2: Overview

2.5.2 ServSwitch DKM FX 80-Port (ACX080)

1 2 3 4 5 6 7

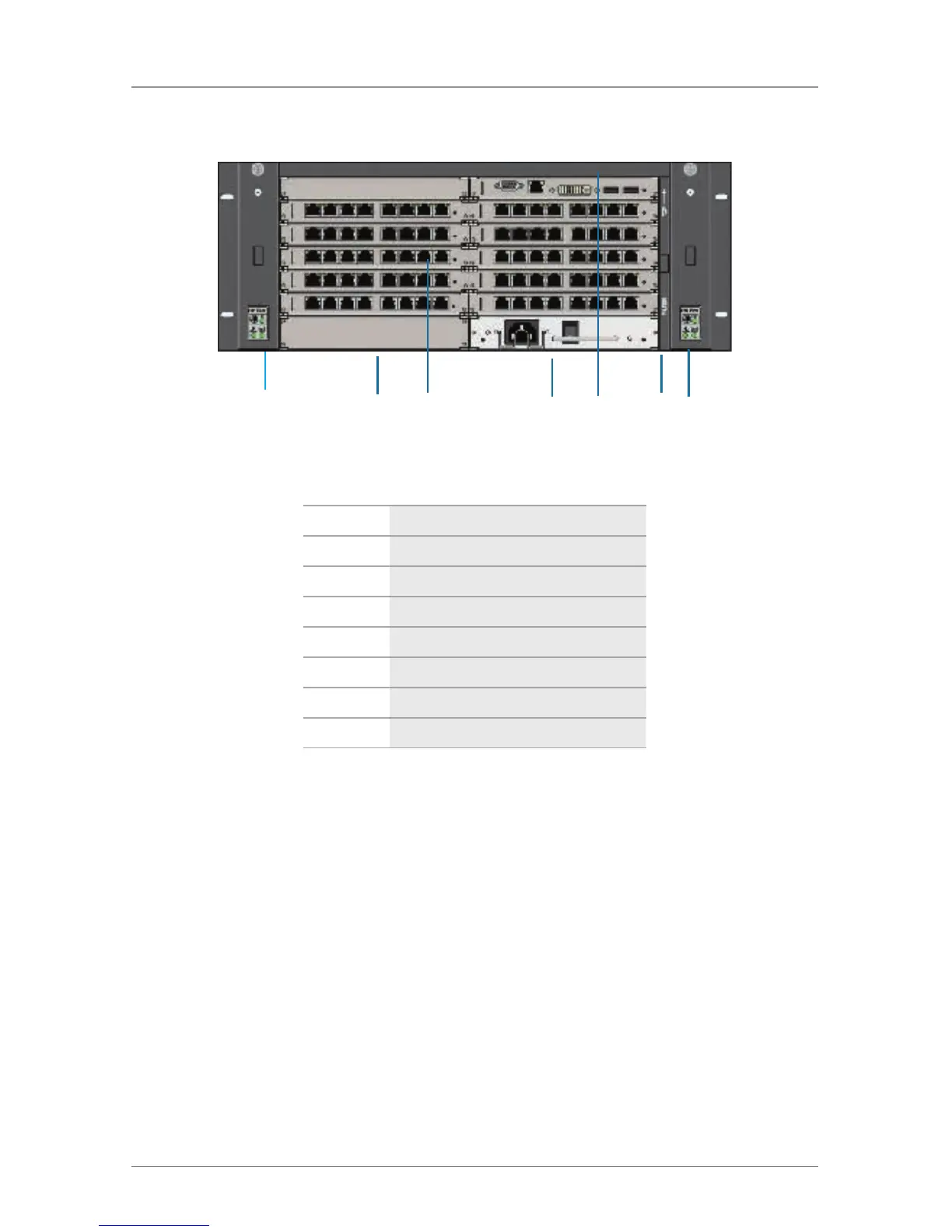

Figure 2-3. Front view, ACX080.

Table 2-5. ACX080 components.

Number Component

1 Slot for fan tray

2 Slot for Power Supply Unit 1

3 Slot for I/O Boards 1–10

4 Slot for Power Supply Unit 2

5 Slot for CPU board

6 Slot for air filter

7 Slot for Fan Tray 2
