Page 58
724-746-5500 | blackbox.com
Chapter 2: Overview
2.6.4 Extender OSD
All extenders used with the matrix switch have an individual OSD to display the
connection status of the console.

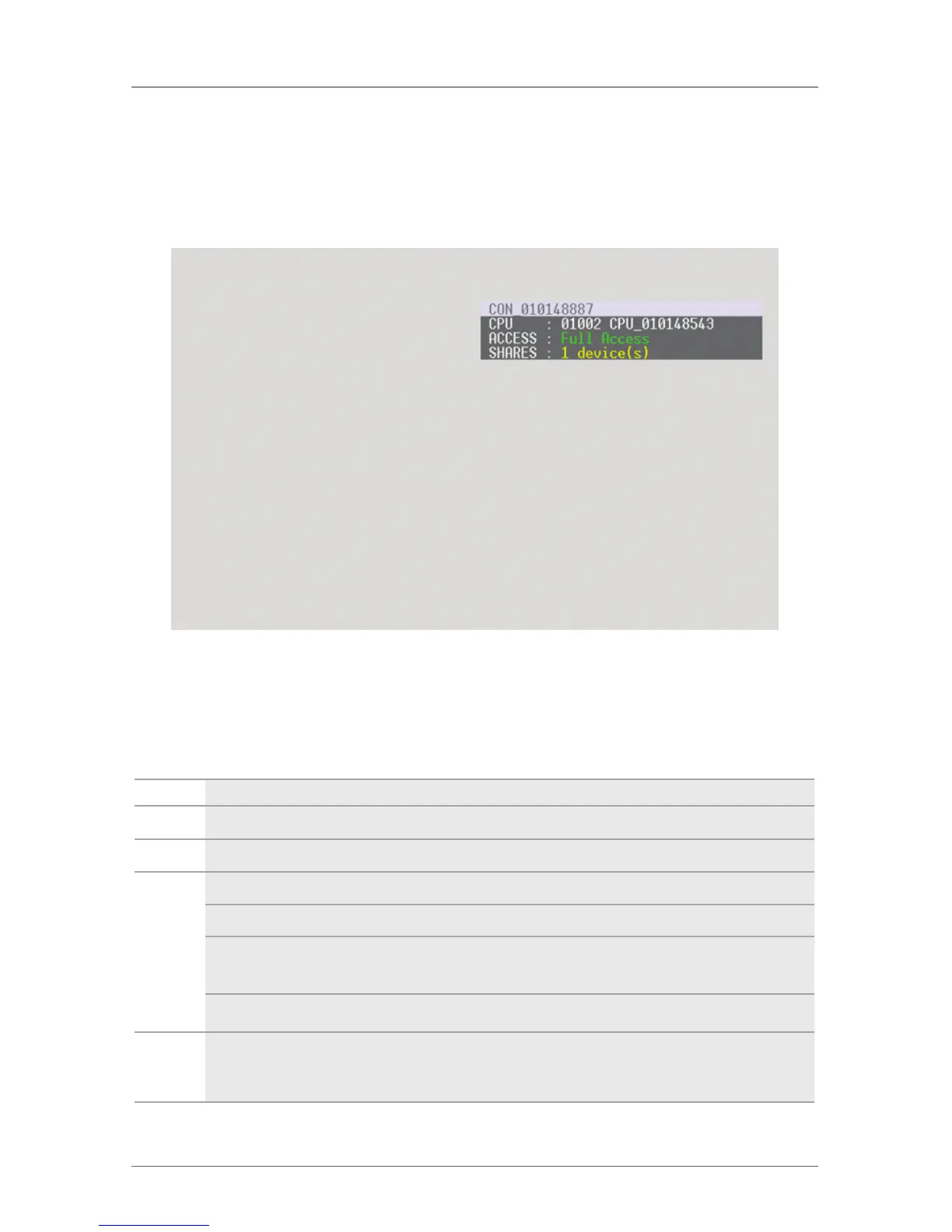

Figure 2-44. Example view of extender OSD.
Table 2-47. Extender OSD information.
Field Description
CON Name of the extender’s individual console
CPU Name of the currently connected CPU
Access
Full Access: The extender’s indivdual console has a KVM connection to the displayed CPU.
Video Access: The extender’s individual console has a video-only connection to the displayed CPU.
Private Mode: The extender’s individual console has a Private Mode connection to the displayed
CPU.
Not connected: The individual console is not connected to a CPU.
SHARED
x device(s) shows the exact number of devices connected to the current CPU. If the field remains
empty, no other shared connections are active.
