Page 182
724-746-5500 | blackbox.com
Chapter 4: Configuration

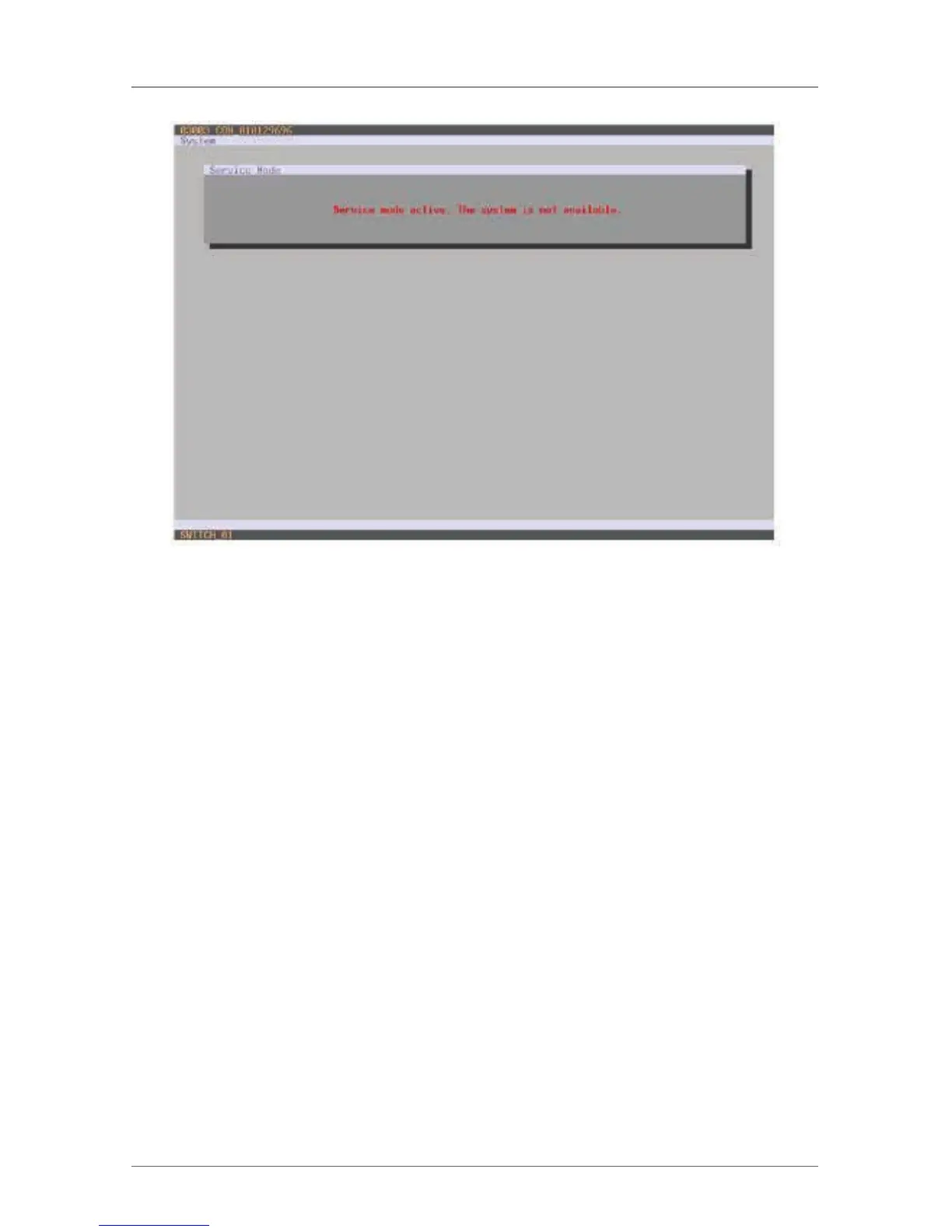

FIgure 4-98. OSD View Service Mode.
3. Start the update by pressing the “Update” button in the lower part of the
working area.
4. Quit Service Mode after updating upon request in the popup window or via
“Matrix > Deactivate Service Mode” in the task area.
5. In the Java tool via “Administration > Update EXT Firmware” in the “Expert
Mode Protocol” tab, verify that updates for all extenders have been installed
correctly.
4.15 License Management
In this menu, the matrix can be upgraded with new function bundles by using
license keys.
You will need to purchase the licenses to obtain the additional features. Currently
the licenses are:
ACX-JAV — Extended switching capabilities with DKM FX Java utility.
ACX-API — API switching feature enabled, also includes ACX-JAV.
ACX-SYS — Enable syslog.
ACX-CAS — Required for every chassis for cascading.
