The Update Media Types wizard is started at this point. For details on the procedure to update paper information

using the Update Media Types wizard, see "Updating Media Types." →P.464

Important

• Be sure to click the Update button. If you do not, your changes will not be applied to the printer and

printer driver.

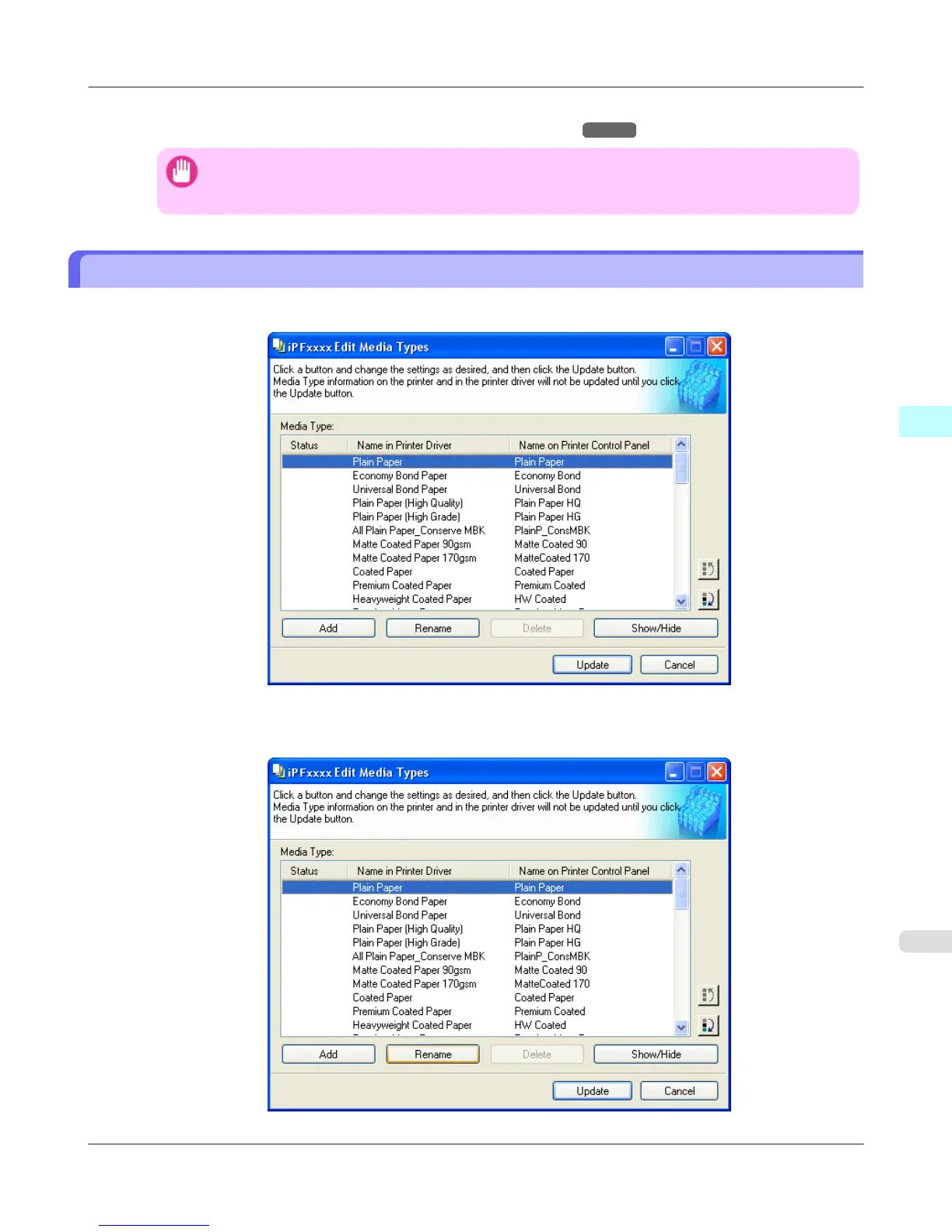

Changing Media Names

Open the Edit Media Types dialog box.

In the Media Type list, select the name to change.

Click the Rename button.

Windows Software

Media Configuration Tool

iPF6300S Changing Media Names

457
