To Next Page

To Previous Page

Enter/Exit Programming Mode

98 QuickScan™ I QD24XX

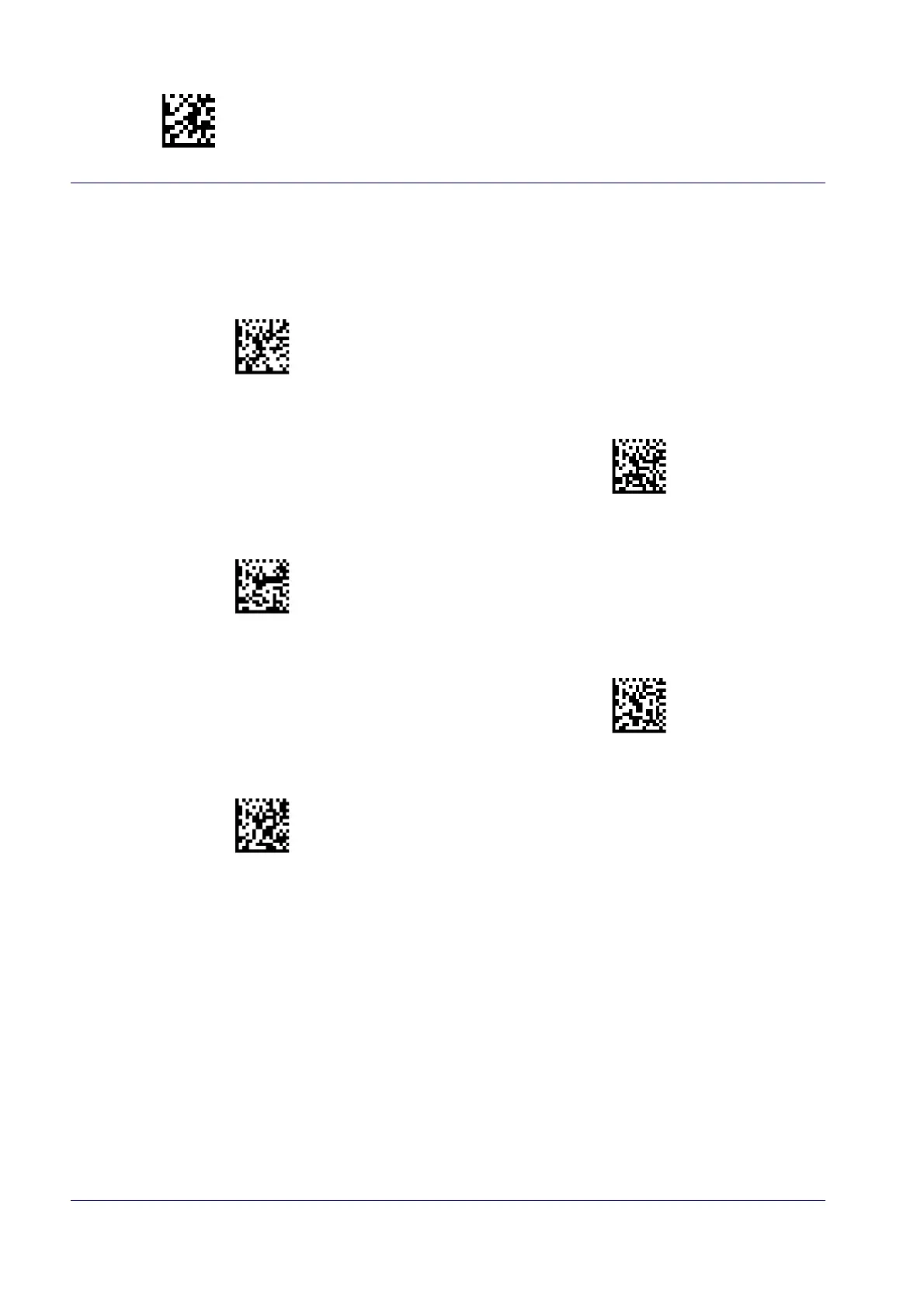

Optional Add-On Timer

This option sets the time the reader will look for an add-on when an add-on fragment has been seen and optional

add-ons are enabled. (Also see "Optional GS1-128 Add-On Timer" on page 101.)

$CADOT01(CR)

Optional Add-on Timer = 10ms

$CADOT02(CR)

Optional Add-on Timer = 20ms

$CADOT03(CR)

Optional Add-on Timer = 30ms

$CADOT04(CR)

Optional Add-on Timer = 40ms

$CADOT05(CR)

Optional Add-on Timer = 50ms

Default Chapter3
