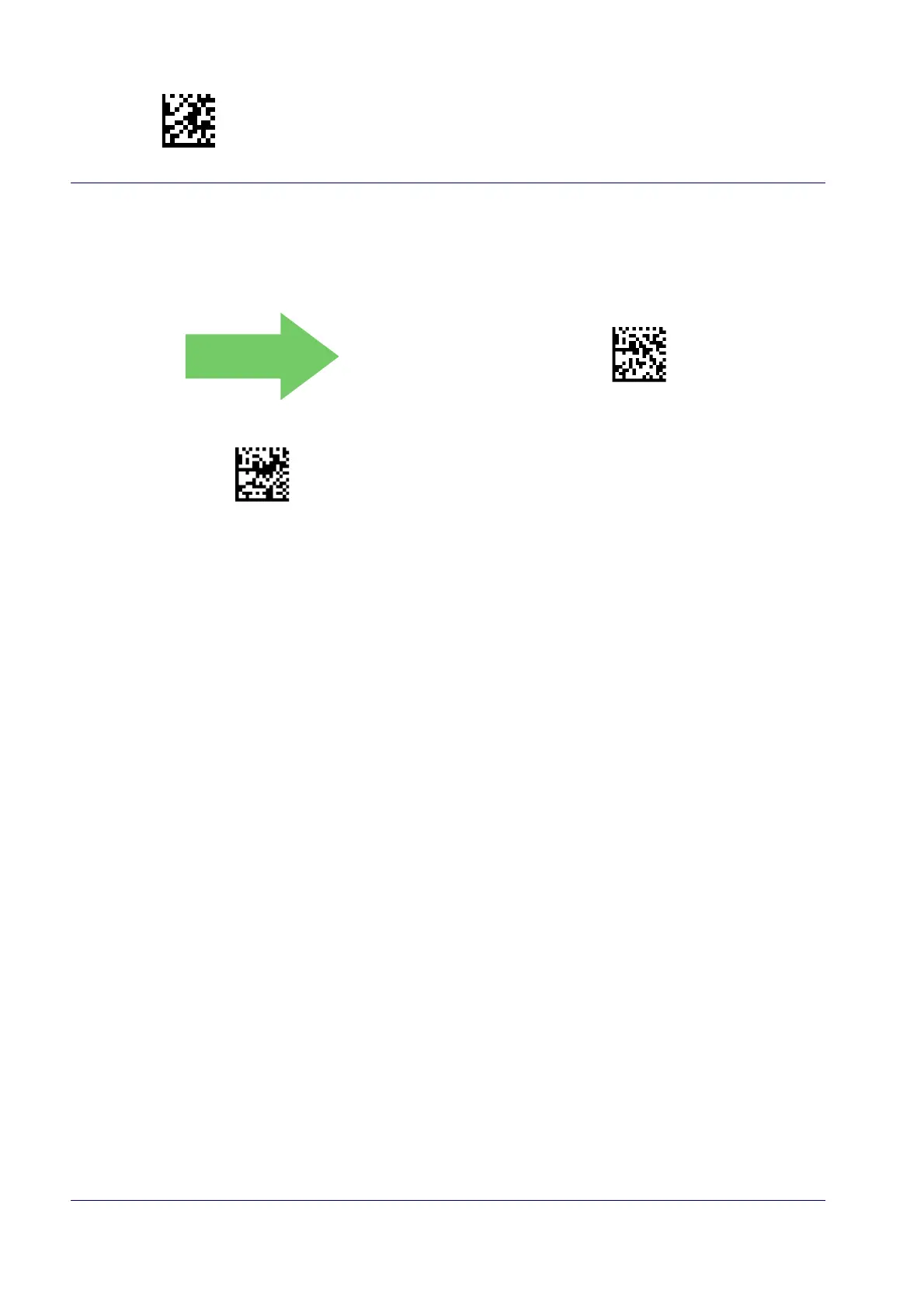

Enter/Exit Programming Mode

146 QuickScan™ I QD24XX

ABC Codabar Force Concatenation

Forces labels starting or ending with D to be concatenated.

DEFAULT

$CCBFC00(CR)

ABC Codabar Force Concatenation = Disable

$CCBFC01(CR)

ABC Codabar Force Concatenation = Enable
