To Next Page

To Previous Page

Enter/Exit Programming Mode

Product Reference Guide 87

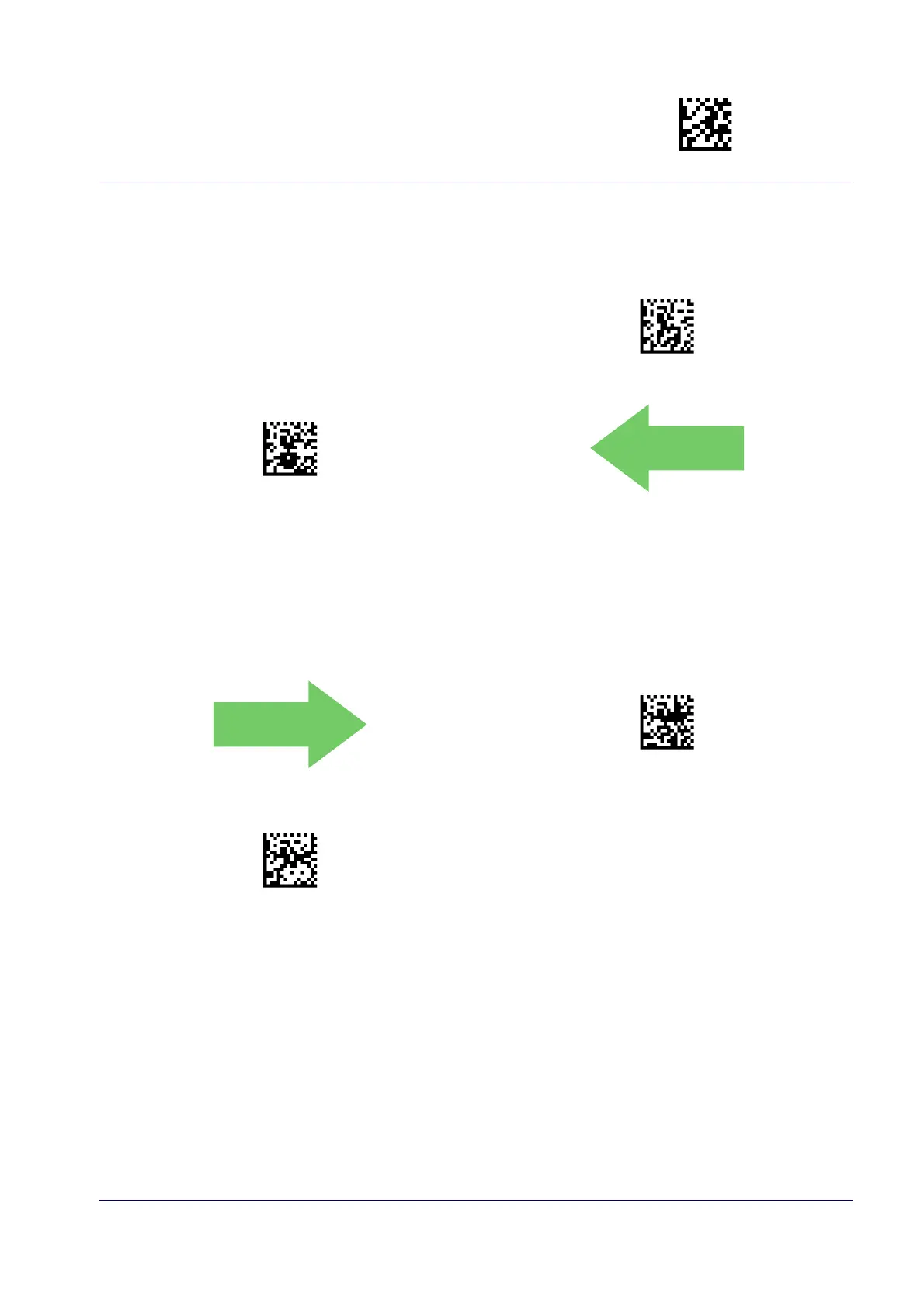

UPC-E Check Character Transmission

Enable this option to transmit the check character along with UPC-E bar code data.

$CEBCT00(CR)

UPC-E Check Character Transmission = Don’t Send

$CEBCT01(CR)

UPC-E Check Character Transmission = Send

DEFAULT

UPC-E 2D Component

This feature enables/disables a requirement that a 2D label component be decoded when a base label for this

symbology is decoded.

DEFAULT

$CEB2D00(CR)

UPC-E 2D Component =

Disable (2D component not required)

$CEB2D01(CR)

UPC-E 2D Component =

2D component must be decoded

Default Chapter3
