Enter/Exit Programming Mode

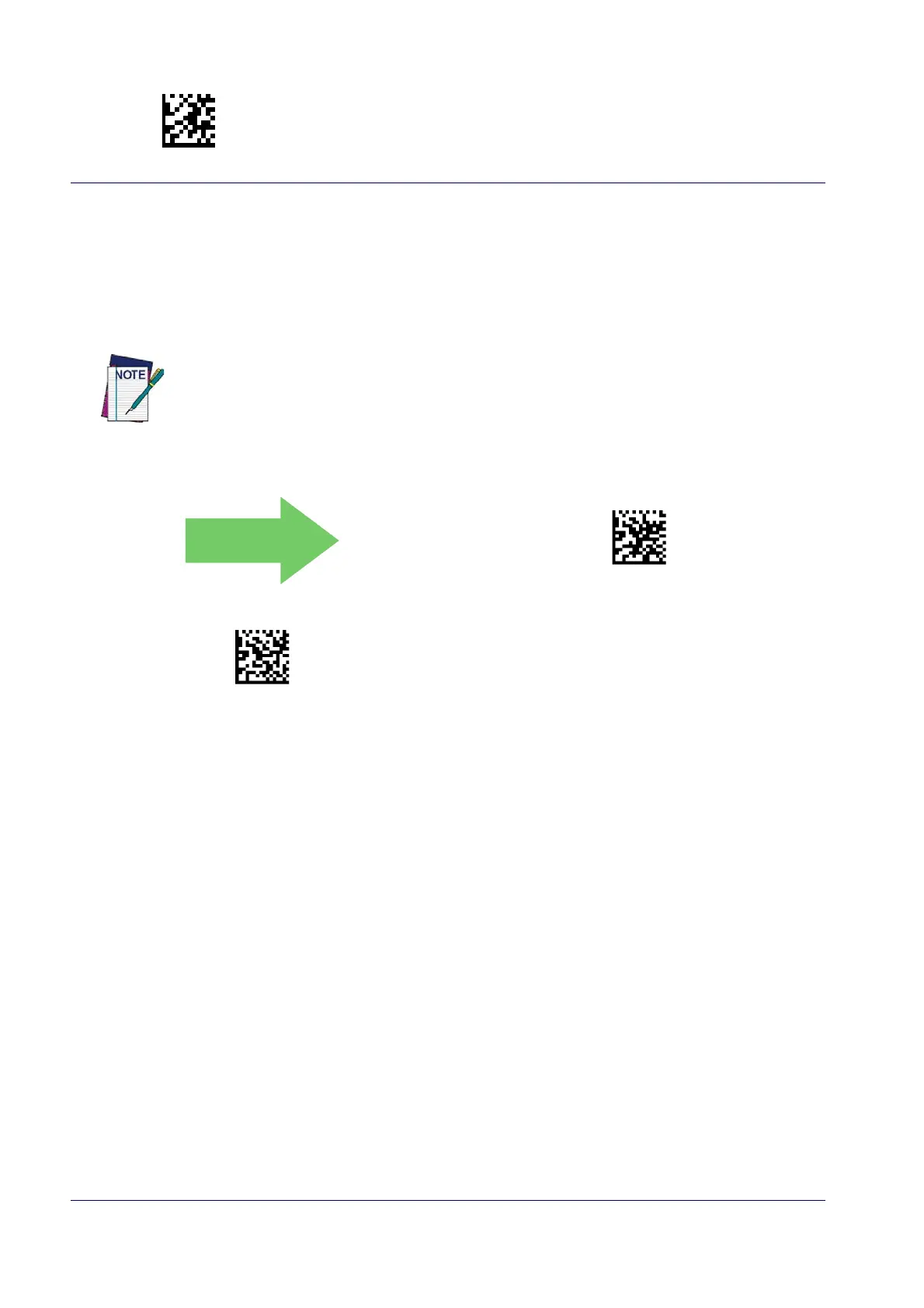

200 QuickScan™ I QD24XX

UCC Composite

UCC Composite Enable / Disable

Enables/disables the ability of the reader to decode the stacked part of a UCC Composite label.

DEFAULT

$CCMEN00(CR)

UCC Composite = Disable

$CCMEN01(CR)

UCC Composite = Enable

This feature is not effective when Global AIM IDs are enabled (see "

Global AIM ID" on page 49

Default Chapter3
