Enter/Exit Programming Mode

Product Reference Guide 77

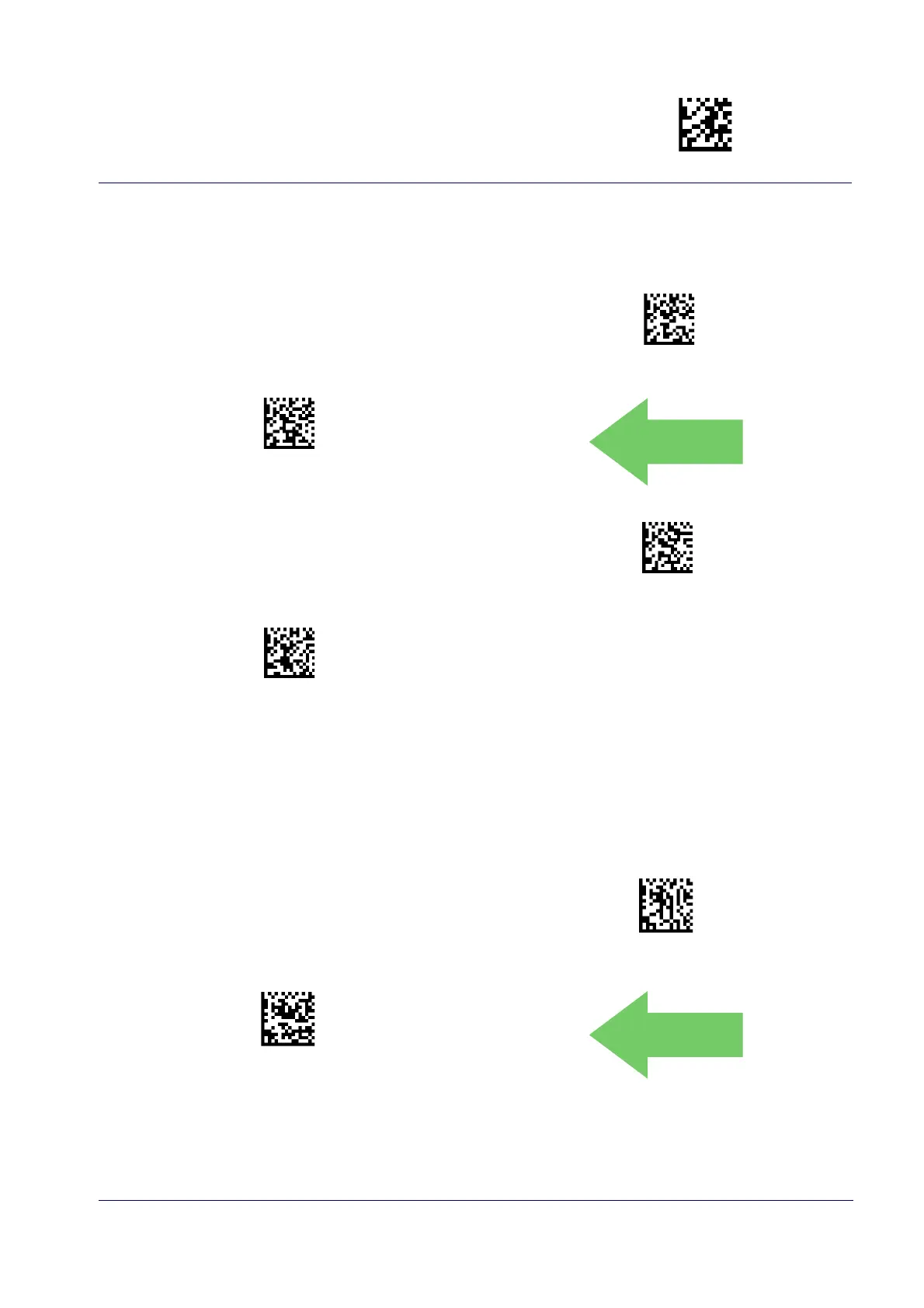

Green Spot Duration

Specifies the duration of the good read pointer beam after a good read.

$CLSSP00(CR)

Green Spot Duration = Disable (Green Spot is Off)

$CLSSP01(CR)

Green Spot Duration = Short (300 msec)

DEFAULT

$CLSSP02(CR)

Green Spot Duration = Medium (500 msec)

$CLSSP03(CR)

Green Spot Duration = Long (800 msec)

Mobile Phone Mode

This mode is useful for scanning bar codes displayed on a mobile phone. Other options for this feature can be

configured using the Datalogic Aladdin application.

$CSNPE00(CR)

Mobile Phone Mode = Disable

$CSNPE01(CR)

Mobile Phone Mode = Enable

DEFAULT

Default Chapter3
- Table of Contents3
