To Next Page

To Previous Page

Enter/Exit Programming Mode

114 QuickScan™ I QD24XX

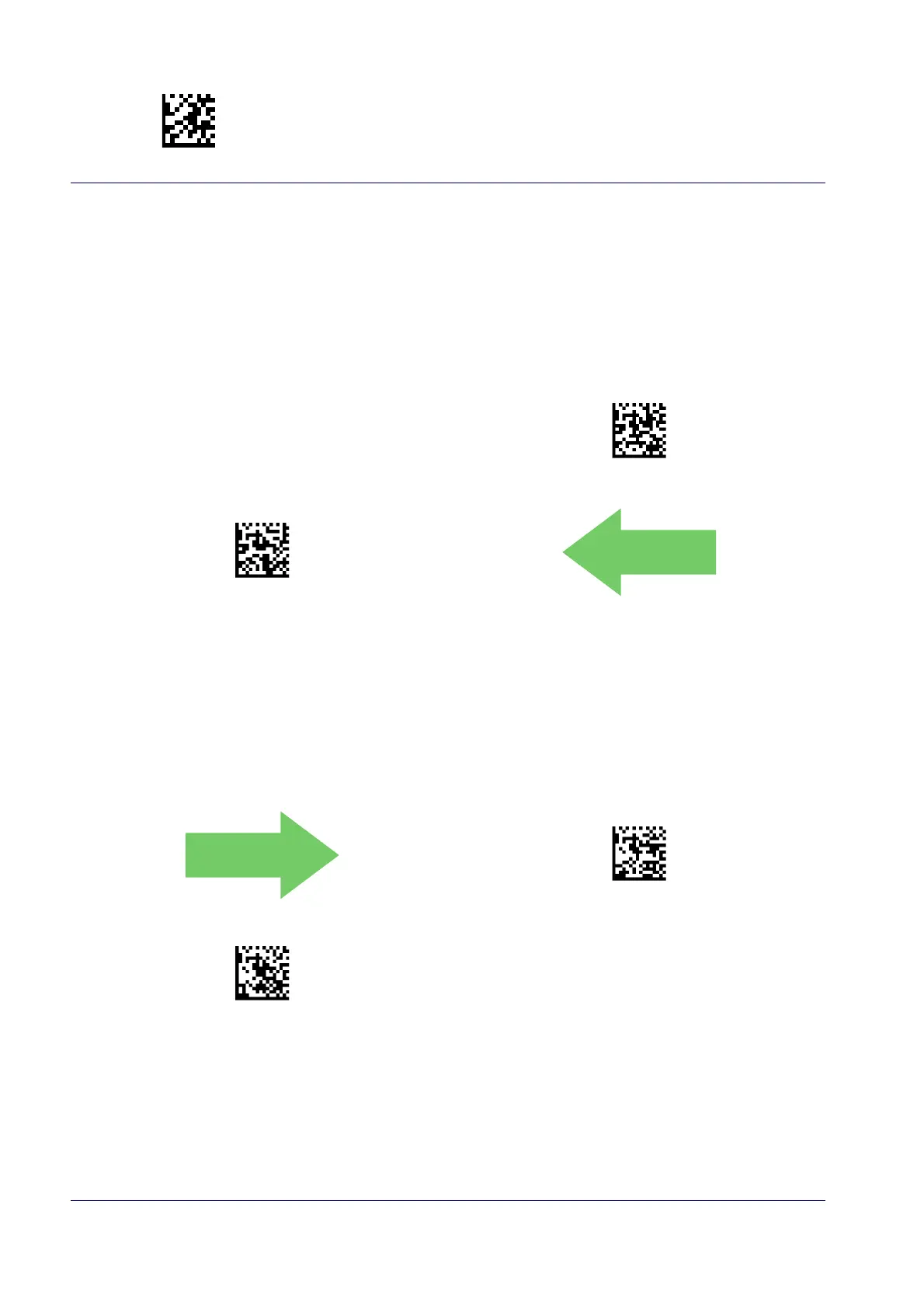

CODE 128

The following options apply to the Code 128 symbology.

Code 128 Enable/Disable

When disabled, the reader will not read Code 128 bar codes.

$CC8EN00(CR)

Code 128 = Disable

$CC8EN01(CR)

Code 128 = Enable

DEFAULT

Expand Code 128 to Code 39

This feature enables/disables expansion of Code 128 labels to Code 39 labels.

DEFAULT

$CC8C300(CR)

Code 128 to Code 39 = Don’t Expand

$CC8C301(CR)

Code 128 to Code 39 = Expand
