To Next Page

To Previous Page

Enter/Exit Programming Mode

70 QuickScan™ I QD24XX

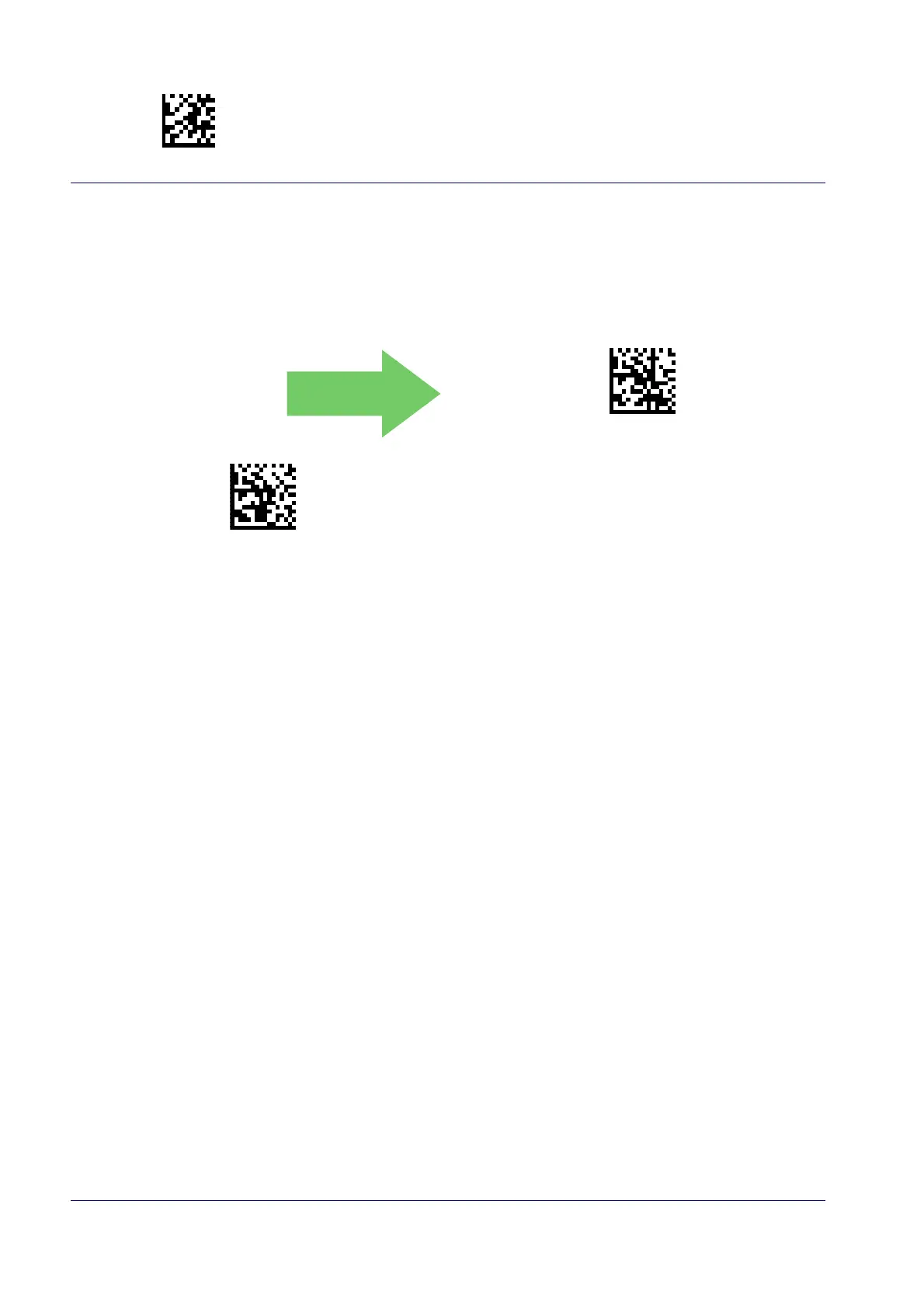

Stand Mode Indication

This operation is useful for indicating when the reader is in Stand Mode. If enabled, the blue indicator will blink

when Stand Mode scanning is active. If the reader is removed from its Stand support or from the Base Station

(cordless models) and switches out of Stand Mode into Triggered Mode, blinking will stop until Stand Mode is

active again.

DEFAULT

$CSMFL00(CR)

Stand Mode Indication = Disable

$CSMFL01(CR)

Stand Mode Indication = Enable

Default Chapter3
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- Technical Support12
- About the Reader13
- Programming the Reader14
  - Configuration Methods14
Setup15
- Unpacking15
- Setting up the Reader15
- Installing the Interface Cable16
- Interface Selection18
  - Setting the Interface19
- Customizing Configuration Settings22
Configuration Using Bar Codes25
- Configuration Parameters25
  - Global Interface Features27
    - Host Commands - Obey/Ignore27
    - USB Suspend Mode27
- Rs-232 Interface29
- RS-232/USB-Com Interfaces34
- Keyboard Settings43
- USB-OEM Interface53
- Data Format57
- Global Prefix/Suffix58
- Global AIM ID59
  - Set AIM ID Individually for GS1-12861
- Label ID62
  - Label ID: Pre-Loaded Sets62
  - Individually Set Label ID63
- Reading Parameters71
  - Double Read Timeout72
  - Led and Beeper Indicators74
- 1D Symbologies91
- 1D Code Selection91
  - Disable All Symbologies92
  - Code Ean/Upc93
Upc-E96
- UPC-E Enable/Disable96
- UPC-E Check Character Transmission97
- UPC-E 2D Component97
- Expand UPC-E to EAN-1398
- Expand UPC-E to UPC-A98
- UPC-E Number System Character Transmission99
Gtin Formatting99
Ean 13 (Jan 13)100
- EAN 13 Enable/Disable100
- EAN 13 Check Character Transmission100
- EAN-13 Flag 1 Character101
- EAN-13 ISBN Conversion101
- EAN-13 2D Component102
Issn102
- ISSN Enable/Disable102
Ean 8 (Jan 8)103
- EAN 8 Enable/Disable103
- EAN 8 Check Character Transmission103
- Expand EAN 8 to EAN 13104
- EAN 8 2D Component104
Upc/Ean Global Settings105
- UPC/EAN Price Weight Check105
- UPC/EAN Quiet Zones106
Add-Ons107
- Optional Add-Ons107
- Optional Add-On Timer108
- Optional GS1-128 Add-On Timer111
Code 39114
- Code 39 Enable/Disable114
- Code 39 Check Character Calculation114
- Code 39 Check Character Transmission115
- Code 39 Start/Stop Character Transmission116
- Code 39 Full ASCII116
- Code 39 Quiet Zones117
- Code 39 Length Control117
- Code 39 Set Length 1118
- Code 39 Set Length 2119
Trioptic Code120
- Trioptic Code Enable/Disable120
Code 32 (Ital Pharmaceutical Code)120
- Code 32 Enable/Disable120
- Code 32 Feature Setting Exceptions121
- Code 32 Check Char Transmission121
- Code 32 Start/Stop Character Transmission121
Code 39 Cip (French Pharmaceutical)122
- Code 39 CIP Enable/Disable122
Code 39 Danish Ppt122
- Code 39 Danish PPT Enable/Disable122
Code 39 Laposte123
- Code 39 Laposte Enable/Disable123
Code 39 Pzn123
- Code 39 PZN Enable/Disable123
Code 128124
- Code 128 Enable/Disable124
- Expand Code 128 to Code 39124
- Code 128 Check Character Transmission125
- Code 128 Function Character Transmission125
- Code 128 Quiet Zones126
- Code 128 Length Control126
- Code 128 Set Length 1127
- Code 128 Set Length 2128
Gs1-128129
- GS1-128 Enable129
- GS1-128 2D Component129
Code Isbt 128130
- ISBT 128 Concatenation130
- ISBT 128 Force Concatenation130
- ISBT 128 Concatenation Mode131
- ISBT 128 Dynamic Concatenation Timeout132
- ISBT 128 Advanced Concatenation Options133
Interleaved 2 of 5 (I 2 of 5)133
- I 2 of 5 Enable/Disable133
- I 2 of 5 Check Character Calculation134
- I 2 of 5 Check Character Transmission135
- I 2 of 5 Length Control135
- I 2 of 5 Set Length 1136
- I 2 of 5 Set Length 2137
Interleaved 2 of 5 Cip Hr138
- Interleaved 2 of 5 CIP HR Enable/Disable138
Follett 2 of 5138
- Follett 2 of 5 Enable/Disable138
Standard 2 of 5139
- Standard 2 of 5 Enable/Disable139
- Standard 2 of 5 Check Character Calculation139
- Standard 2 of 5 Check Character Transmission140
- Standard 2 of 5 Length Control140
- Standard 2 of 5 Set Length 1141
- Standard 2 of 5 Set Length 2142
Industrial 2 of 5143
- Industrial 2 of 5 Enable/Disable143
- Industrial 2 of 5 Check Character Calculation143
- Industrial 2 of 5 Check Character Transmission144
- Industrial 2 of 5 Length Control144
- Industrial 2 of 5 Set Length 1145
- Industrial 2 of 5 Set Length 2146
Code Iata147
- IATA Enable/Disable147
- IATA Check Character Transmission147
Codabar148
- Codabar Enable/Disable148
- Codabar Check Character Calculation148
- Codabar Check Character Transmission149
- Codabar Start/Stop Character Transmission149
- Codabar Start/Stop Character Set150
- Codabar Start/Stop Character Match150
- Codabar Quiet Zones151
- Codabar Length Control151
- Codabar Set Length 1152
- Codabar Set Length 2153
Abc Codabar154
- ABC Codabar Enable/Disable154
- ABC Codabar Concatenation Mode154
- ABC Codabar Dynamic Concatenation Timeout155
- ABC Codabar Force Concatenation156
Code 11157
- Code 11 Enable/Disable157
- Code 11 Check Character Calculation157
- Code 11 Check Character Transmission158
- Code 11 Length Control158
- Code 11 Set Length 1159
- Code 11 Set Length 2160
Gs1 Databar™ Omnidirectional161
- GS1 Databar™ Omnidirectional Enable/Disable161
- 2D Symbologies183
- 2D Global Features183
- Aztec Code186
  - Aztec Code Enable / Disable186
  - Aztec Code Length Control186
    - Aztec Code Set Length 1187
    - Aztec Code Set Length 2188
- China Sensible Code189
  - China Sensible Code Enable / Disable189
  - China Sensible Code Length Control189
    - China Sensible Code Set Length 1190
    - China Sensible Code Set Length 2191
- Data Matrix192
- Maxicode195
- Pdf417198
  - PDF417 Enable / Disable198
  - PDF417 Length Control198
    - PDF417 Set Length 1199
    - PDF417 Set Length 2200
- Micro PDF417201
- QR Code204
  - QR Code Enable / Disable204
  - QR Code Length Control204
    - QR Code Set Length 1205
    - QR Code Set Length 2206
- Micro QR Code207
  - Micro QR Code Enable/Disable207
  - Micro QR Code Length Control207
    - Micro QR Code Set Length 1208
    - Micro QR Code Set Length 2209
- UCC Composite210
  - UCC Composite Enable / Disable210
  - UCC Optional Composite Timer211
- Postal Code Selection212
  - Postnet BB Control213
References215
- RS-232 Parameters216
  - RS-232/USB COM Parameters217
- Keyboard Interface224
- Symbologies227
  - Set Length227
- Data Editing228
- Reading Parameters237
  - Good Read LED Duration237
- Scanning Features238
Technical Specifications247
- Imager Labeling251
- Standard Cable Pinouts252
- LED and Beeper Indications253
- Error Codes254
Standard Defaults255
Sample Bar Codes265
Keypad269
Scancode Tables271
- Control Character Emulation271
  - Single Press and Release Keys271
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE272
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode274
- Digital Interface276
- Ibm31Xx 102-Key277
- Ibm Xt278
- Microsoft Windows Codepage 1252279
