no ip address
tagged GigabitEthernet 1/1-3
mac access-group flow in <<<<<<<<<<<<<< Only ingress packets are supported for mirroring
shutdown
ERPM Behavior on a typical Dell Networking OS
The Dell Networking OS is designed to support only the Encapsulation of the data received / transmitted at the specied source port (Port
A). An ERPM destination session / decapsulation of the ERPM packets at the destination Switch are not supported.

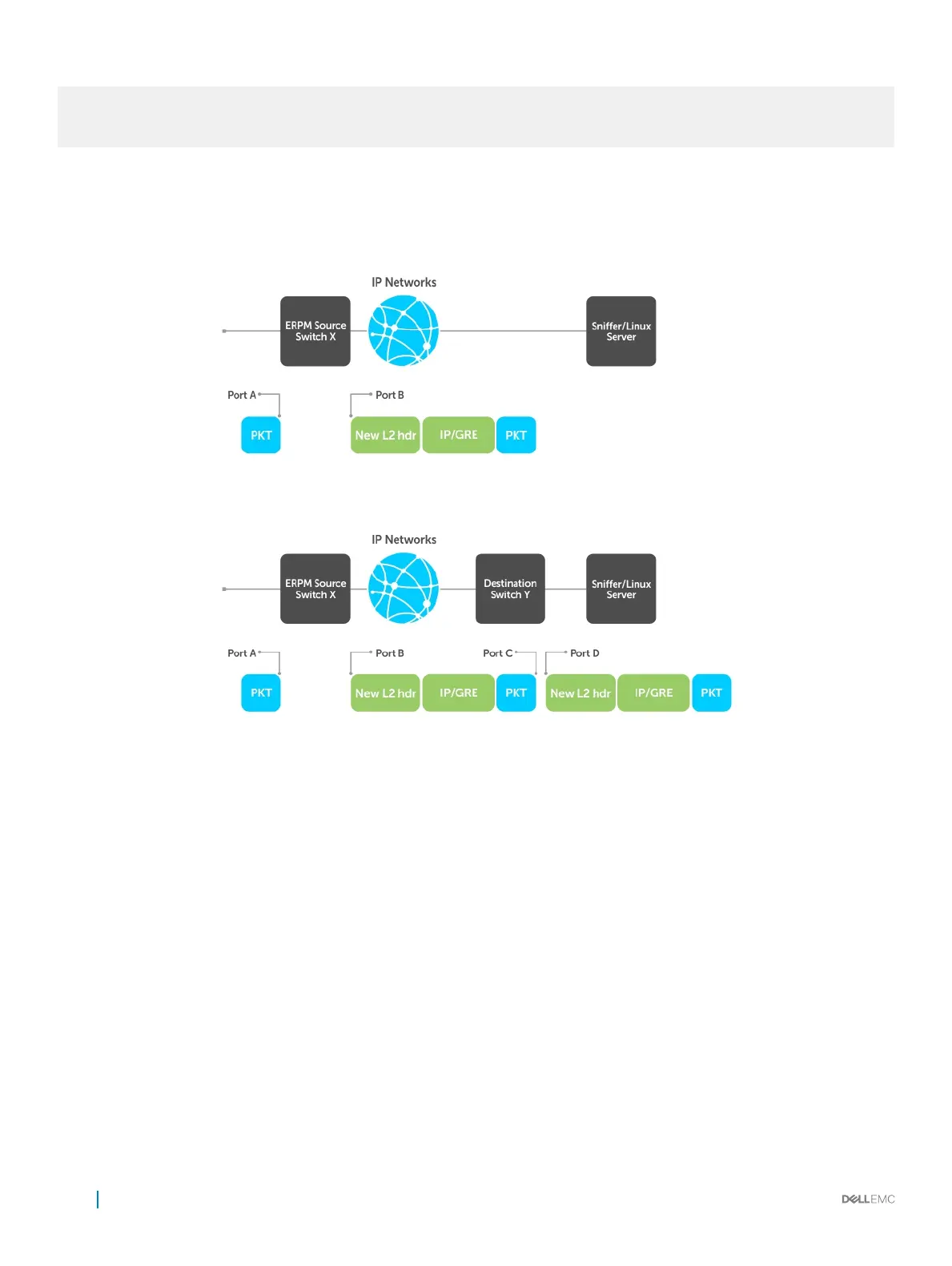

Figure 93. ERPM Behavior
As seen in the above gure, the packets received/transmitted on Port A will be encapsulated with an IP/GRE header plus a new L2 header
and sent to the destination ip address (Port D’s ip address) on the snier. The Header that gets attached to the packet is 38 bytes long.
If the snier does not support IP interface, a destination switch will be needed to receive the encapsulated ERPM packet and locally mirror
the whole packet to the Snier or a Linux Server.
Decapsulation of ERPM packets at the Destination IP/
Analyzer
• In order to achieve the decapsulation of the original payload from the ERPM header. The below two methods are suggested :
a Using Network Analyzer
• Install any well-known Network Packet Analyzer tool which is open source and free to download.
• Start capture of ERPM packets on the Snier and save it to the trace le (for example : erpmwithheader.pcap).
612
Port Monitoring
