Enabling 802.1X

Enable 802.1X globally.

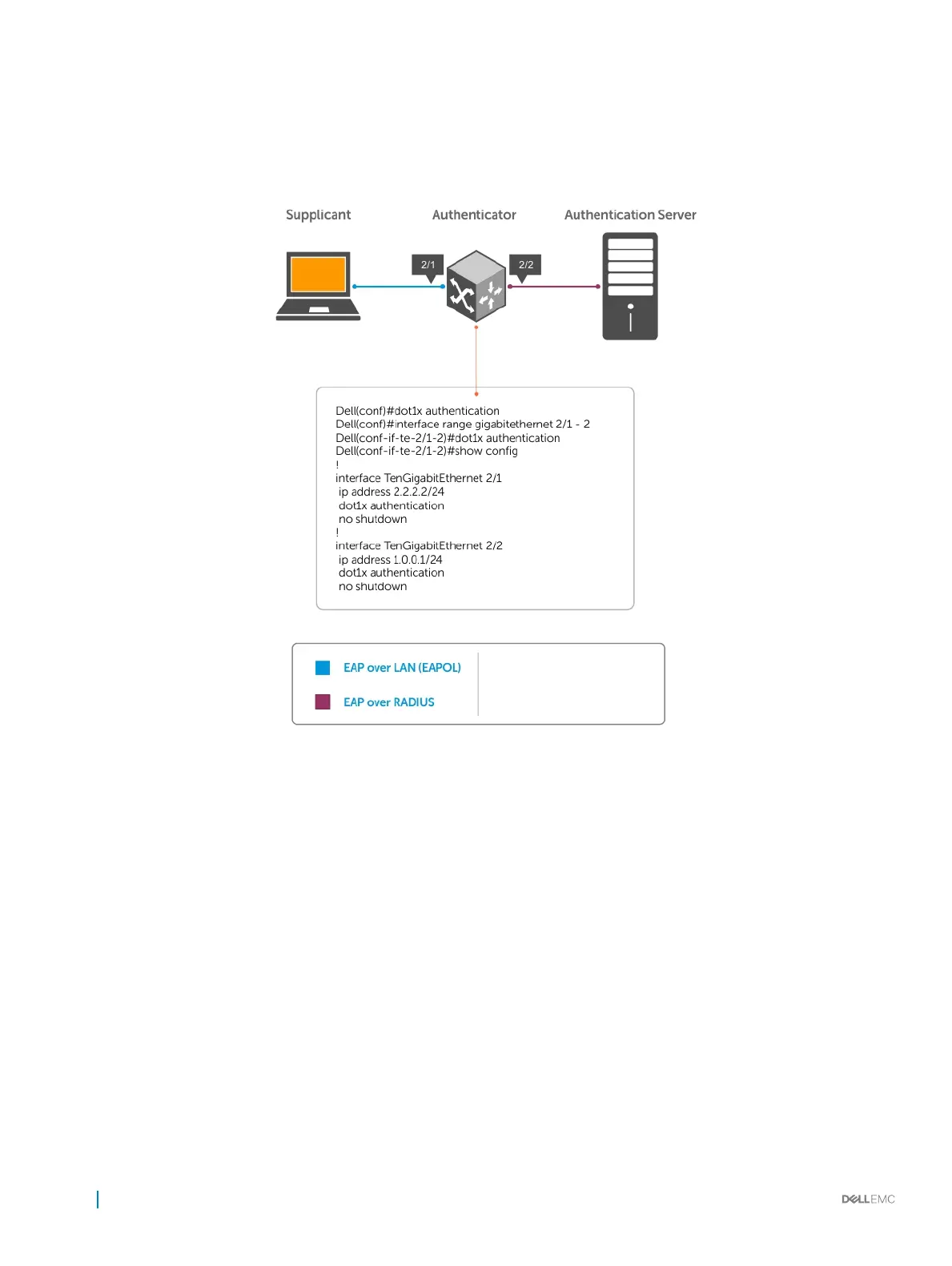

Figure 7. 802.1X Enabled

1 Enable 802.1X globally.

CONFIGURATION mode

dot1x authentication

2 Enter INTERFACE mode on an interface or a range of interfaces.

INTERFACE mode

interface [range]

3 Enable 802.1X on the supplicant interface only.

INTERFACE mode

dot1x authentication

Examples of Verifying that 802.1X is Enabled Globally and on an Interface

Verify that 802.1X is enabled globally and at the interface level using the show running-config | find dot1x command from

EXEC Privilege mode.

802.1X
