4 Step Ladder Instructions
DVP-PLC Application Manual
4-10

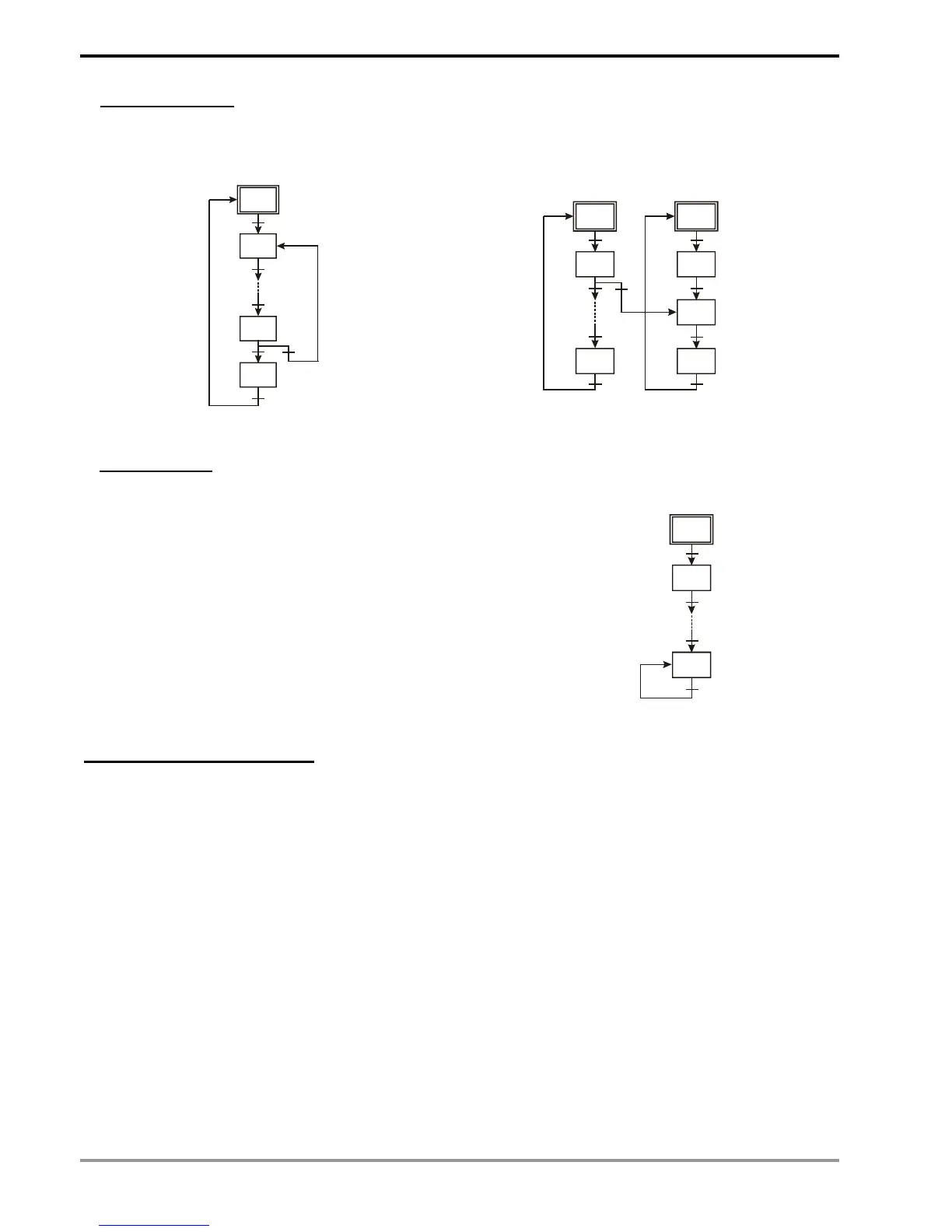

b) Jumping Sequence
1. The control power over the step is transferred to
a certain step on top.
2. The control power over the step is transferred to
the step in another sequence.
S0
S21
S42
S43
OUT
OUT
S0
S21
S41
OUT
OUT
S1
S41
S43
OUT
S42
c) Reset Sequence
See the diagram in the right hand side. When the condition at S50
is true, S50 will be reset and the sequence will be completed at
this time.
S0
S21
S50
RST
Complicated Single Sequence:
Including simultaneous divergence, alternative divergence, simultaneous convergence and alternative
convergence.
