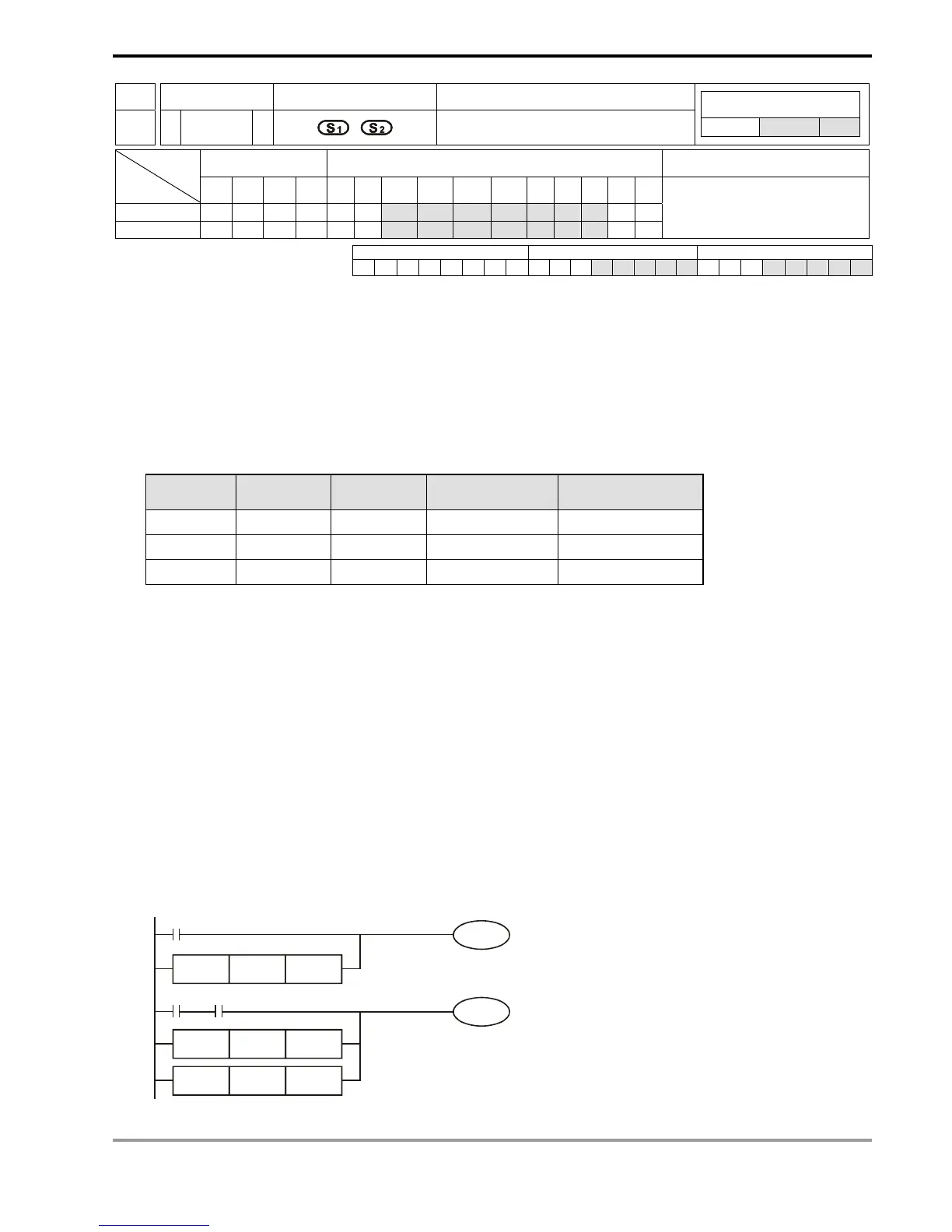

Delta DVP-PLC User Manual

10 Application Instructions API 200-249
DVP-PLC Application Manual
10-9
API Mnemonic Operands Function
221~
223
D
OR#
Contact Logical operation OR#
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
S
1
* * * * * * * * ***
S
2
* * * * * * * * ***
OR#: 5 steps
DOR#: 9 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
S
1
: Data source device 1 S
2
: Data source device 2
Explanations:
1. See the specifications of each model for the range of operands.
2. This instruction compares the content in S
1
and S
2
. If the result is not “0”, the continuity of the instruction is
enabled. If the result is “0”, the continuity of the instruction is disabled.
3. OR# (#: &, |, ^) is an operation instruction used on parallel contacts.
API No.
16 -bit
instruction
32 -bit
instruction
Continuity
condition
No-continuity
condition
221 OR&
DOR&
S
1
& S
2
≠0
S
1
& S
2
=0
222 OR|
DOR|
S
1
| S
2
≠0
S
1
| S
2
=0
223 OR^
DOR^
S
1
^ S
2
≠0
S
1
^ S
2
=0
4. &: Logical “AND” operation
5. |: Logical “OR” operation
6. ^: Logical “XOR” operation
7. When 32-bit counters (C200 ~ C255) are used in this instruction for comparison, make sure to adopt 32-bit
instruction (DOR#). If 16-bit instructions (OR#) is adopted, a “program error” will occur and the ERROR
indicator on the MPU panel will flash.
Program Example:
1. When X1 = On and the result of logical AND operation of C0 and C10 ≠ 0, Y10 = On.
2. M60 will be On when X2 = On and M30 = On, or the result of logical OR operation of 32-bit register D10 (D11)
and 32-bit register D20 (D21) ≠ 0, or the result of logical XOR operation of 32-bit register D200 (D201) and
32-bit counter C235 ≠ 0.
DOR
D100 D200
OR
C0 C10
DOR
D10 D20
&
^
I
Y0
X2
X1
M30
M60
