6 Application Instructions API 00-49
DVP-PLC Application Manual
6-48
API Mnemonic Operands Function
32
D RCR P
Rotation Right with Carry
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
D
* * * * * ***
n * *
RCR, RCRP: 5 steps
DRCR, DRCRP: 9 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
D: Device to be rotated n: Number of bits to be rotated in 1 rotation
Explanations:
1. If D is used in device F, only 16-bit instruction is applicable.
2. If D is designated as KnY, KnM, and KnS, only K4 (16-bit) and K8 (32-bit) are valid.
3. Range of n: K1 ~ K16 (16-bit); K1 ~ K32 (32-bit)
4. See the specifications of each model for their range of use.
5. Flag: M1022 (carry flag)
6. This instruction rotates the device content designated by D together with carry flag M1022 to the right for n bits.
7. This instruction adopts pulse execution instructions (RCRP, DRCRP).

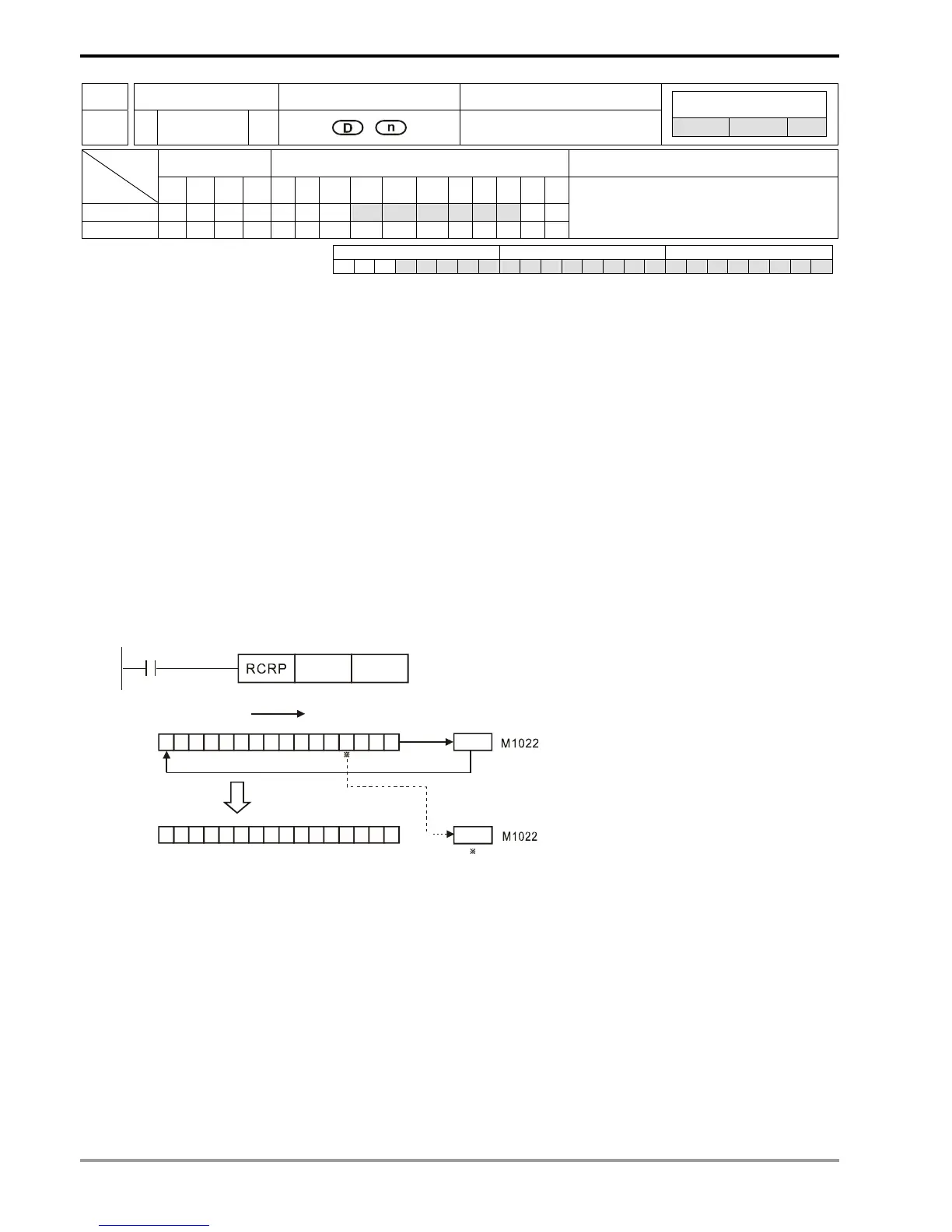

Program Example:
When X0 = Off→On, the 16 bits (4 bits as a group) in D10 together with carry flag M1022 (total 17 bits) will rotate to
the right, as shown in the figure below. The bit marked with ※ will be sent to carry flag M1022.
00011100 01001 001
10001100111000 0
0
1
X0
D10 K4
Rotate to the right
16 bits
Carry
flag
Carry
flag
After one rotation
to the right
lower bit
lower bit
1
D10
D10
higher bit
higher bit
To Next Page
