6 Application Instructions API 00-49
DVP-PLC Application Manual
6-49
API Mnemonic Operands Function
33
D RCL P
Rotation Left with Carry
Controllers
ES/EX/SS SA/SX/SC EH/SV
Bit Devices Word Devices Program Steps Type
OP
X Y M S K H KnX KnY KnM KnS T C D E F
D
* * * * * ***
n * *
RCL, RCLP: 5 steps
DRCL, DRCLP: 9 steps
PULSE 16-bit 32-bit
ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV ES EX SS SA SX SC EH SV
Operands:
D: Device to be rotated n: Number of bits to be rotated in 1 rotation
Explanations:
1. If D is used in device F, only 16-bit instruction is applicable.
2. If D is designated as KnY, KnM, and KnS, only K4 (16-bit) and K8 (32-bit) are valid.
3. Range of n: K1 ~ K16 (16-bit); K1 ~ K32 (32-bit)
4. See the specifications of each model for their range of use.
5. Flag: M1022 (carry flag)
6. This instruction rotates the device content designated by D together with carry flag M1022 to the left for n bits.
7. This instruction adopts pulse execution instructions (RCLP, DRCLP).
Program Example :

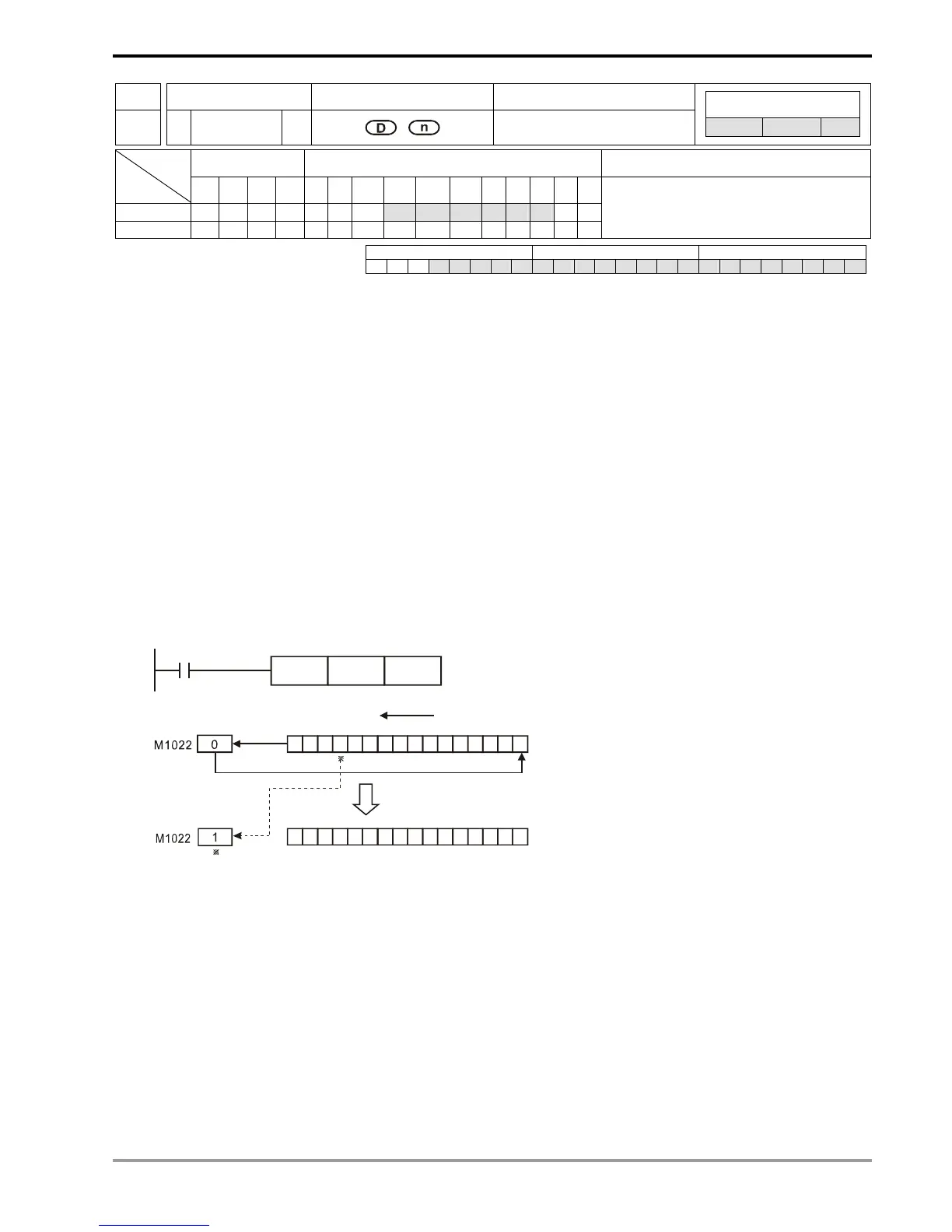

When X0 = Off→On, the 16 bits (4 bits as a group) in D10 together with carry flag M1022 (total 17 bits) will rotate to
the left, as shown in the figure below. The bit marked with ※ will be sent to carry flag M1022.
X0
RCLP D10 K4
11111100 00011 000
1100000 10000111 1
16 bits
Rotate to the left
After one rotation
to the left
Carry
flag
Carry
flag
lower bit
lower bit
D10
D10
higher bit
higher bit
To Next Page
